Wood Plastic Composite Product Machines
Product Processing Flow
Raw material+Wood powder+Additive → Mixing → Granules → Conical twin screw extruder → Profile extrusion mould → Cooling molding die → Vacuum calibration support → Belt haul off → Cutter → Rack → Finished product inspecting and packing
Features of Wood Plastic Composite Product Machines
WPC profile production line uses efficient extrusion equipment which is of stable extruding and energy saving.The screw barrel of extruder has unique internal structure with 38CrMoAlA alloy steel surface coating.The cooling method of screw core adopts oil thermostatic system with automatic temperature control,so that the material can achieve the best plasticized state.
Chaging the moulds,this wood plastic profile production line can manufacture many different kinds of profiles according to your requrest.
This WPC profile extrusion line is mainly used in WPC (PVC or PE ) floor, WPC auxiliary profile for the decorative door and small profiles.
Technical Parameters of Wood Plastic Composite Product Machines
Extruder model |
SJZ55/110M |
SJZ65/132M |
SJZ80/156M |
SJZ92/188M |
|||
|
Main motor Power (Kw) |
22 |
37 |
55 |
110 |
|||
Auxiliary Equipment |
YF240S |
YF240A |
YF300A |
YF600 |
YF900 |
YF1200 |
|
Production Width (mm) |
Max240 |
Max240 |
Max300 |
Max600 |
Max900 |
Max1200 |
|
Vacuum Pump(Kw) |
2*5.5 |
4*5.5 |
4*5.5 |
4*5.5 |
1*7.5 2*11 |
1*7.5 2*11 |
|
Water Pump(Kw) |
1.5 |
4 |
4 |
7.5 |
7.5 |
7.5 |
|
Hauling Speed |
0-5 |
0-5 |
0-5 |
0-3 |
0-2.5 |
0-2.5 |
|
Auxiliary Equipment Power |
22 |
35 |
35 |
44 |
52 |
62 |
|
Output(kg/h) |
70 |
120 |
120 |
180 |
400 |
400 |
|

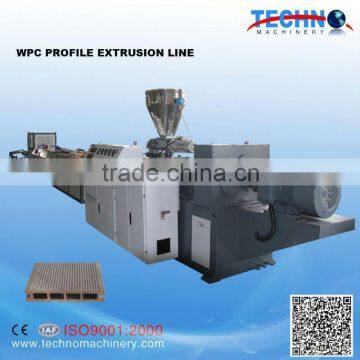

Extruder of Wood Plastic Composite Product Machines
Calibrating Table of Wood Plastic Composite Product Machines
Cutter of Wood Plastic Composite Product Machines
Tilting Stacker of Wood Plastic Composite Product Machines
Finished WPC Board for your reference
Standard Export Seaworthy Packing Wood Plastic Composite Product Machines
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)tire recycling machinery ...........
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
