Wood Plastic Composite Production Process/Machinery Manufacturer
- 5 Set / Sets per Month
- Shanghai
- T/T
Product Details
Condition: | New | Application: | Profile | Plastic Processed: | PVC |
Screw Design: | Double-screw | Automatic Grade: | High Automation | Place of Origin: | Jiangsu, China |
Brand Name: | Techno | Model Number: | TECWPC | Voltage: | 220-480V |
Power(W): | 20-220KW | Dimension(L*W*H): | L24000*W1800*H2200mm | Weight: | 20000KGS |
Certification: | CE/ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

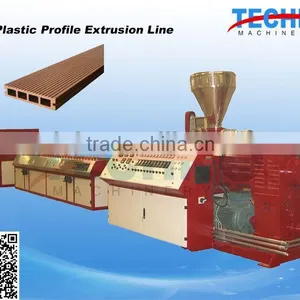

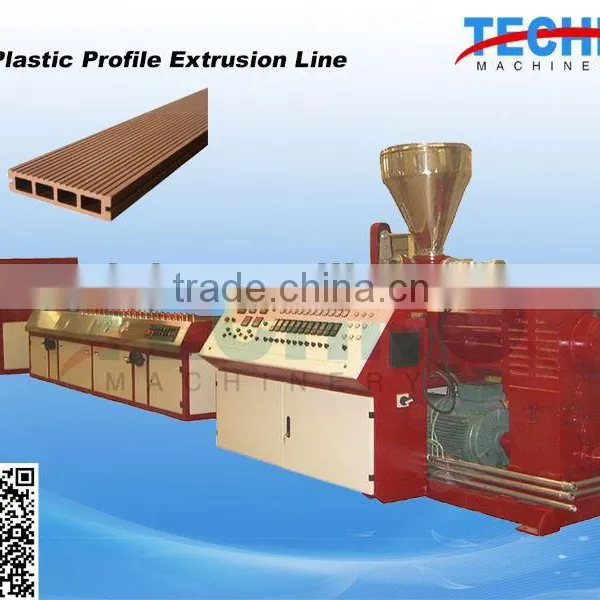

Wood Plastic Composite Production Process/Machinery Manufacturer
Features of Wood Plastic Composite Production Process
WPC profile production line uses efficient extrusion equipment which is of stable extruding and energy saving.The screw barrel of extruder has unique internal structure with 38CrMoAlA alloy steel surface coating.The cooling method of screw core adopts oil thermostatic system with automatic temperature control,so that the material can achieve the best plasticized state.
Chaging the moulds,this wood plastic profile production line can manufacture many different kinds of profiles according to your requrest.
This WPC profile extrusion line is mainly used in WPC (PVC or PE ) floor, WPC auxiliary profile for the decorative door and small profiles.
Technical Parameters of Wood Plastic Composite Production Process
Extruder model | SJZ55/110M | SJZ65/132M | SJZ80/156M | SJZ92/188M | |||
Main motor Power (Kw) | 22 | 37 | 55 | 110 | |||
Auxiliary Equipment | YF240S | YF240A | YF300A | YF600 | YF900 | YF1200 | |
Production Width (mm) | Max240 | Max240 | Max300 | Max600 | Max900 | Max1200 | |
Vacuum Pump(Kw) | 2*5.5 | 4*5.5 | 4*5.5 | 4*5.5 | 1*7.5 2*11 | 1*7.5 2*11 | |
Water Pump(Kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 7.5 | |
Hauling Speed | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 | |
Auxiliary Equipment Power | 22 | 35 | 35 | 44 | 52 | 62 | |
Output(kg/h) | 70 | 120 | 120 | 180 | 400 | 400 |
Main Configuration of Wood Plastic Composite Production Process
Item | Machine | QTY |
1 | Auto loader | 1 set |
2 | Double-Screw Extruder | 1 set |
3 | Extrusion and calibration moulds | Each one set |
4 | Calibration table | 1 set |
5 | Hauling-off Machine | 1 set |
6 | Online holes-punching machine | 1 set |
7 | Cutting machine | 1 set |
8 | Stacker | 1 set |
Loader of Wood Plastic Composite Production Process
Extruder of Wood Plastic Composite Production Process
Calibrating Table of Wood Plastic Composite Production Process
Cutter of Wood Plastic Composite Production Process
Tilting Stacker of Wood Plastic Composite Production Process
Finished WPC Board for your reference
Standard Export Seaworthy Packing Wood Plastic Composite Production Process
a. Engineers available to service machinery overseas
b. Guarantee Period: 12 Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
Zhangjiagang Techno Machinery Co.,Ltd. is specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
Our main machines include the following: 1)plastic pipes production line 2)plastic profiles production line 3)plastic sheets production line 4)plastic pellets production line 5)plastic mixers 6)plastic pulverizer 7)tire recycling machinery ...........
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
