Split Lcd Video Screen

Split Lcd Video Screen thumbnail-1
Split Lcd Video Screen photo-1
US$ 1 - 9,999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
User
Model Number:
US-PJ5503
Contact Supplier Request Quote Chat Now
Shenzhen USER Special Display Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name User
Model Number US-PJ5503
Type TFT
Application Indoor
Panel Size 55Inch
Max Resolution 1920x1080
Viewing Angle 178
Color 16.7M
Contrast Ratio 3500:1
Brightness 450
Response Time 6ms
Input Voltage Max 250W

Specifications

Sunlight readable
Ultra-low power consumption
Waterproof
wider work tempareture
long life time(60000hrs)

Features of Samsung DID LCD MONITOR



1. Samsung DID LCD screen, high brightness, high contrast, high resolution
2. Super narrow edge design, narrow border a range of 1.7 mm - 11 mm
3. Built-in splicing controller splicing unit
4. 178 ° wide perspective
5. High stability, long life, life for as long as 60000 hours
6. Unitize, modular design, can be single use, also can use mosaics
7. Rich input signal output interface, may meet computer and all kinds of video equipment

8. Cheapest price with factory

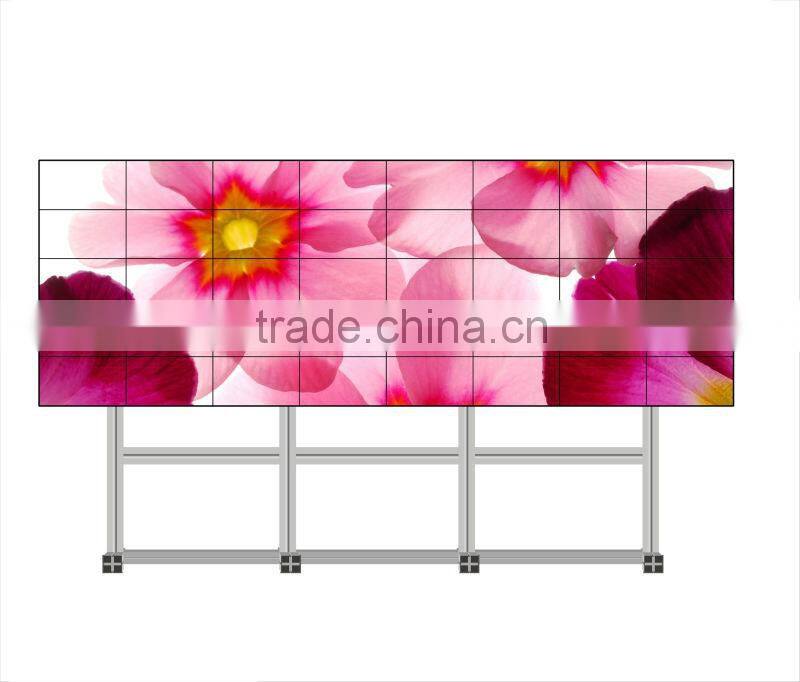

split lcd video screen

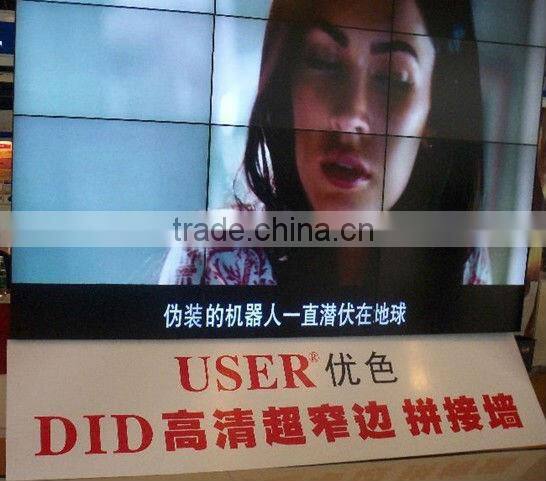

split lcd video screen

Specifications
Model No. PJ5502(US-LTI550HN05)
Panel Size 55" Samsung DID LCD Screen(with narrow bezel 5.3mm,with LED Backlight)
Aspect Ratio 16:9
Max Resolution Support 1920x1080
Color 8Bit,16.7M
Brightness (nits) 450cd/m2
Contrast 3500:1
Visual Angle (H/V) 178°
Response Time <=6ms
Life(hrs) >60,000(hrs)
Input and output
DVI 1
HDMI 1
VGA 1
YPbPr 1(BNCx3)
S-video 1(BNCx2)
Composite Video Input/(AV) 3(BNCx3)
Composite Video Output 2(BNCx2)
Control signal input and loop out RS232(RJ45-8)
Split Screen Support Picture in Picture(PIP/POP)
Power
Power Supply AC100V~240V
Maximum Power Consumption 250W
Standby Power Consumption <=3W
Temperature
Working Temperature 0°C~50°C
Working Humidity 20%-80%
Dimension 1215.3mm × 686.1mmx116.2mm
Video Wall Controller(Built-in each Screen)
Model No. US-P816A
Input CVBS 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
VGA 1*D15 port, support SVGA/XGA/WXGA
YPbPr/YCbCr 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
Y/C 2*BNC inputs, support PAL/NTSC all formats
Output LVDS Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode Panel key operation(needs customization)
Standard RS232 port( provide free control software)
Infrared Remote Control Operation
Engineering software Customized
Working temperature  0~70 °C
working humidity 5~95 %RH
AC voltage power supply 100-240V/50, 60Hz
power consumption Max 300W,according to different Screen models
Dimension 338×295×60(mm)
Weight About 3.5KG
