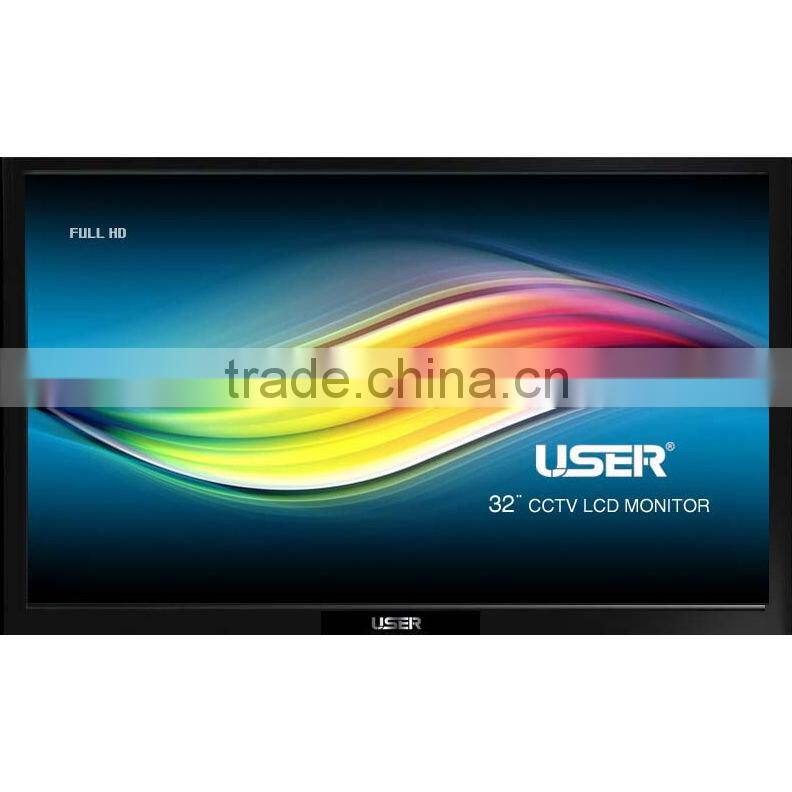

Security Field 32 Inch CCTV LCD Monitor With Wide Viewing Angle
US$ 1 - 9,999
MOQ: 10 Sets
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
User
Model Number:
US-M3201P
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
All Weather Using Lcd Video Wall(Narrow Bezel)US$ 1 - 9,999MOQ: 1 Unit -
46Inch AD Display LCD Video WallUS$ 1 - 9,999MOQ: 1 Unit
-
46inch LCD Video Wall ,indoor Advertising PlayerUS$ 1 - 9,999MOQ: 1 Unit
-
Out-door Lcd Video WallUS$ 1 - 9,999MOQ: 1 Unit
-
46 Inch DID-LCD DISPLAY LCD Video WallUS$ 1 - 9,999MOQ: 1 Unit
Place of Origin
China
Brand Name
User
Model Number
US-M3201P
Specifications
32 inch CCTV LCD monitorGood quality and moderate price
OEM/ODM available
32 inch LCD monitor industrial grade
Features:
1.Ultra-silm design ,convenient use ,delicate appearance.
2.Industrial A+ grade LCD panle.
3.Auto eliminate blur function,long life span.
4.Quick response time,no trailing effect.
5.Multi data-image adjustment circuit,low image distortion.
6.Intelligence temperature control fan design,green and quiet.
7.High contrast,high brightness,vivid image layout ,best detail on high performance
8.Intensive the IR receiver,support the IR remote to modify the monitor parameters.
9.Build-in stable power,low consumption,long life span>60000hrs.
10.Standard VESA,easy to install.
11.Full metal shielding structure,can profit the external electromagnetic interruption ,no radition.
Specification:
| Specifications | ||||||||||
| Model No. | US-M3201P | |||||||||
| Panel size | 32" TFT-LCD | |||||||||
| Display area(mm)/mode | 700(W)×394(H) 16:9 | |||||||||
| Maximum resolution | 1366×768 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.51075(H)×0.51075(V) | |||||||||
| Brightness (nits) | 600cd/m2 | |||||||||
| Contrast | 4000:1 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | 60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 3 (BNC×3) | |||||||||
| YPbPr input | 1 (BNC×3) | |||||||||
| S-video input | 2 (BNC×2) | |||||||||
| VGA | 1 | |||||||||
| HDMI | 1 | |||||||||
| DVI | 1 | |||||||||
| Composite video output | 2 (BNC×2) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| Compatible HDMI/DVI input | 480P,576P,720P,1080I,1080P | |||||||||
| 3D Comb filter | Yes | |||||||||
| Video reduction noise | Yes | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | <120W | |||||||||
| Standby power consumption | 3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 10%~95% | |||||||||
| Storage humidity | 10%~95% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 773.6×470.0×116.2mm | |||||||||
| Panel color/appearance | White,black,customized | |||||||||
| Case Material | Metal | |||||||||
| Net weight | 23kg | |||||||||
| Installation | Wall-mounted,desktop(optional) | |||||||||

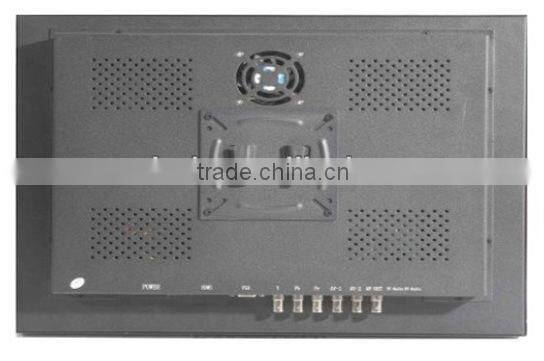

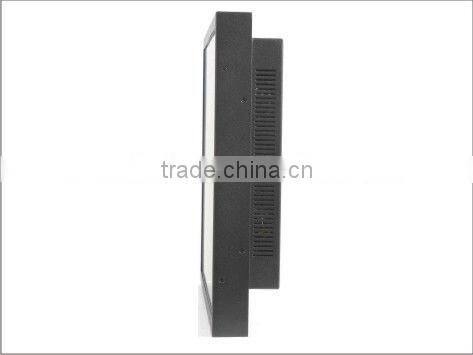

Product show:
