46inch LCD Video Wall ,indoor Advertising Player

46inch LCD Video Wall ,indoor Advertising Player thumbnail-1
46inch LCD Video Wall ,indoor Advertising Player photo-1
US$ 1 - 9,999 MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
User Or Oem
Model Number:
PJ-4601
Contact Supplier Request Quote Chat Now
Shenzhen USER Special Display Technologies Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name User Or Oem
Model Number PJ-4601
Type TFT
Application Indoor
Panel Size 46 Inch
Max Resolution 1920x1080
Viewing Angle 178D
Pixel Pitch 0.53*0.53
Color 16.7M
Contrast Ratio 3000:1
Brightness 450cd/m2
Response Time 6ms
Input Voltage 250W

Specifications

lcd video wall
1.Brightness: 450cd/m2
2.Max Resolution Support:1366x768
3.Contrast: 2000:1

lcd video wall



46inch Narrow Bezel 7.3mm LCD video wall


Features:

High brightness,High definition and high gaumt

Narrow bezel design

Optional joining methods

Environmental & safety

Advanced screen parameter revise functions

Stable operation , long life and low maintenace costs

The LCD video wall bracket adopts steel structure,firm and embedded installation,simple and compact structure,save space



Specifications
Model No. PJ4601
Screen size 46' Samsung DID LCD screen(super narrow bezel 7.3mm)
Aspect Ratio 16:9
Resolution 1920x1080
 Color 8Bit,16.7M
Brightness (nits) 450cd/m2
Contrast  2000:1
Visual angle (H/V) 178°
Response time <=6ms
Life(hrs) >60,000(hrs)
Input and output
Composite Video Input 3(3xBNC)
YUV/YPbPR 1(3xBNC)
S-YC 1(2xBNC)
D-15 RGB Input(VGA) 1
HDMI 1
DVI 1
Audio Input 1
Composite Video Output 2(2xBNC)
Split Screen Support Picture in Picture(PIP/POP/PAP)
Power
Power supply AC100V~240V
Maximum power consumption 250W
Standby power consumption <=3W
Temperature
Working temperature 0°C~50°C
Working humidity 20%-80%
Appearance
Product dimension( W x H x D) mm  1025.65x579.84x126.73
Acessory
Cable  Can supply different kinds of cable
Video Wall Controller(Built-in each screen)
Model No. US-P816A
Input  CVBS 3*BNC inputs, support PAL/NTSC all formats, 2*BNC loop outputs
VGA 1*D15 port, support SVGA/XGA/WXGA
YPbPr/YCbCr 1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
Y/C 2*BNC inputs, support PAL/NTSC all formats
Output  LVDS Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate  mode  Panel key operation(needs customization)
Standard RS232 port( provide free control software)
Infrared Remote Control Operation
 Engineering software Customized
Working temperature   0~70 °C
working humidity 5~95 %RH
AC voltage power supply 100-240V/50, 60Hz
power consumption Max 300W,according to different screen models
Dimension 338×295×60(mm)
Weight About 3.5KG



Install:

Wall-mounted,floor stand, cabinet installation optional



Package:

46inch LCD video wall ,indoor advertising player



Application:



The splicing picture combination, can reach the advertising media to the pursuit of large screen . Widly use to Airport, Finacial ,Metro,shopping mall,supermarket,Public place,assembly room ,Enterprise,Goverment ect.







Stable performance for video monitor and production scheduling ensure apply to: Public security,Transportation, Electrical Power , Energy sources,coal mine, Military and so on.

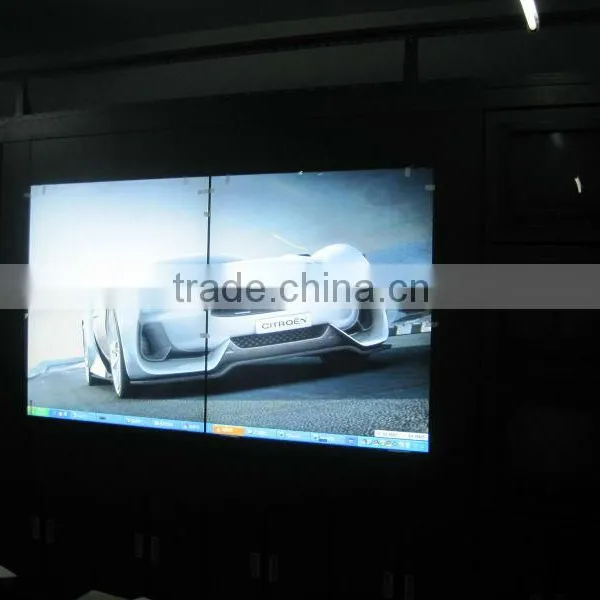

Application case:

46inch LCD video wall ,indoor advertising player



46inch LCD video wall ,indoor advertising player





We provide servise:



1. Customized requirment is available , OEM&ODM are welcome.



2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .



3. Warranty: one year overall unit ( Non-artificial damage )







Certificate:





Office and Workshop:
