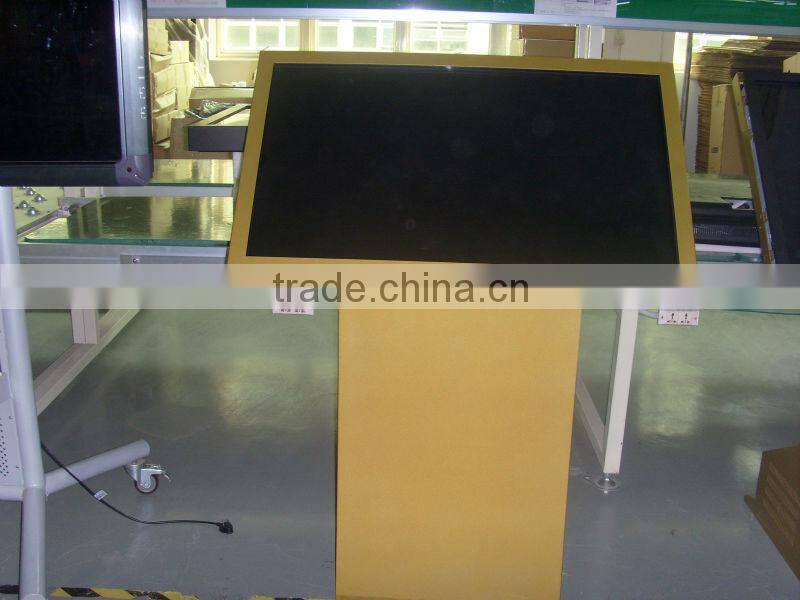

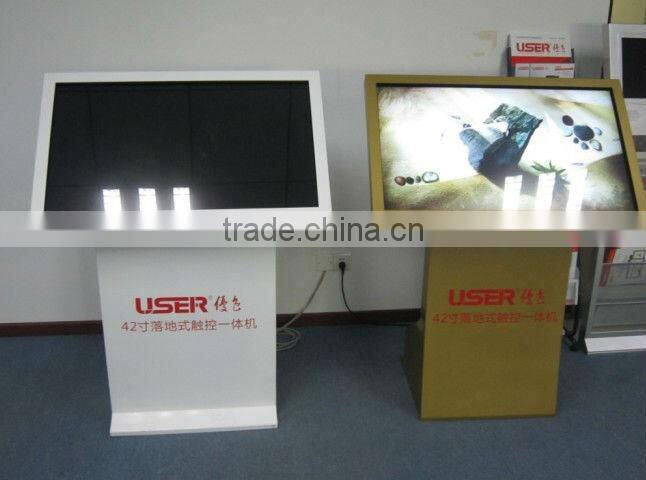

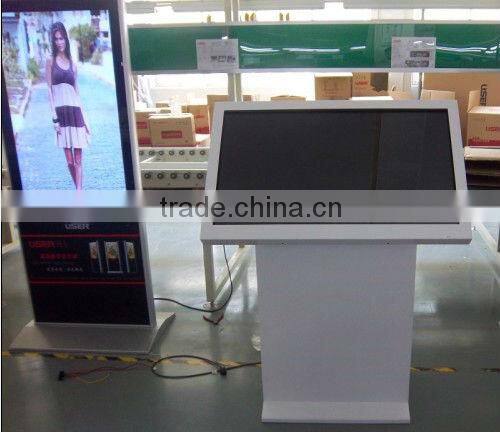

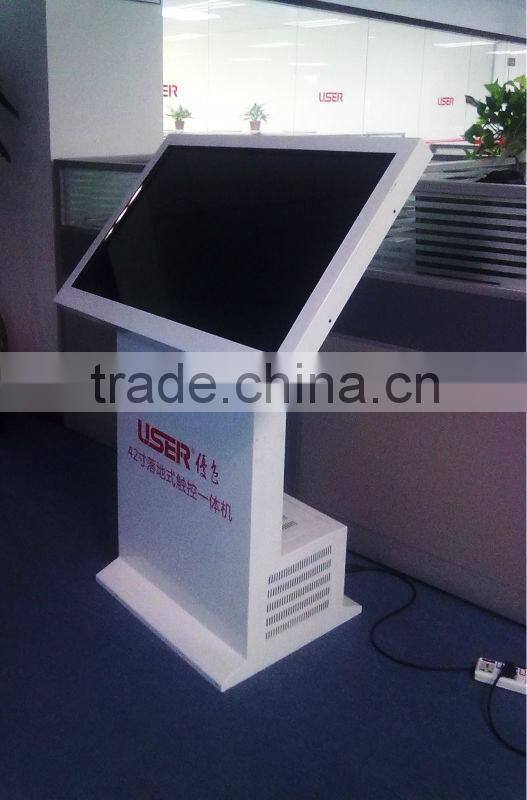

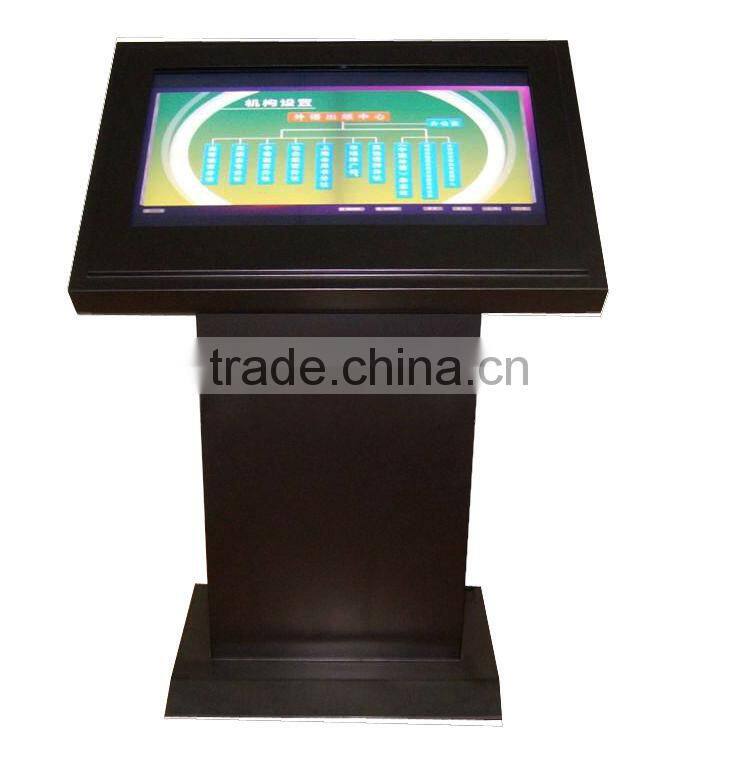

42 inch Floor-stand LCD Interactive mulit Touch electronic kiosk US-TH42
| Specifications | ||||||||||
| Model No. | US-T4201HC | |||||||||
| Panel size | 42" TFT-LCD | |||||||||
| Display area(mm)/mode | 930×523 16:9 | |||||||||
| Maximum resolution | 1920*1080 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.4845(H)×0.4845(V) | |||||||||
| Brightness (nits) | 600cd/m2 | |||||||||
| Contrast | 4000:01:00 | |||||||||
| Visual angle | 178°/178° | |||||||||
| Response time | 5ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Touch Panel | ||||||||||
| Specification | Infrared Touch | |||||||||
| positioning accuracy | ±2mm | |||||||||
| Touch Media | Finger/touch pen opaque objects | |||||||||
| Transmittance | ≥92% | |||||||||
| Glass Hardness | 7H | |||||||||
| Click Mode | two points | |||||||||
| Response Time | ≤10ms | |||||||||
| ClickLife Time | >=60M times | |||||||||
| PC | ||||||||||
| Motherboard | H61 | |||||||||
| CPU | I3-2100 dual cores four threads 3.1G | |||||||||
| Memory | DDR3 1333MHZ 4GB | |||||||||
| Hardware | SATA II320GB | |||||||||
| Keyboard and Mouse(Optional) | wireless waterproof keyboard and mouse set | |||||||||
| Interface | USB*4,VGA*1,DVI*1,HDMI*1,RJ45*1,Audio*1,MIC*1 | |||||||||
| Software environment | Windows XP/ Windows 7/ Windows 2003 Server Enterprise Edition /Linux | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English( Multiple Language Supported) | |||||||||
| Power | ||||||||||
| Power supply | 100-240V AC 12V/ DC | |||||||||
| Maximum power consumption | 230W | |||||||||
| Standby power consumption | <3W | |||||||||
| Temperature | ||||||||||
| Working temperature | -20°C~+80°C | |||||||||
| Storage temperature | -40°C~+80°C | |||||||||
| Working humidity | 25%~85% | |||||||||
| Storage humidity | 20%~90% | |||||||||
| Support signal format | ||||||||||
| Video format | MPEG1/MPEG2/MPEG4/DivX/ASP/WMV/AVI | |||||||||
| Audio format | Wave/MP3/WMA/AAC | |||||||||
| Image format | JPEG/BMP/TIFF/PNG/GIF | |||||||||
| Image resolution | 480P/720P/1080P | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 1000*500.*1300.2 ((for reference) | |||||||||
| Panel color/appearance | White, black, customized | |||||||||
| Panel material | Metal case SPCC | |||||||||
| Installation | Floor-standing | |||||||||
| Quality Standard | ISO9001,CCC | |||||||||
| Sample leading time | 12~15 working days | |||||||||
| Bulk order leading time | 12~15 working days | |||||||||
| Payment term | T/T or Western union | |||||||||
| Warranty | 1 year | |||||||||
Detail function:
Play mode:
Suport video ,flash animation,images and text mix broadcasting.
Video truly seamless playback.
Up to 14 kinds of picture transition mode.
Support rich display resolution:1366x768,1440x900,1600x900,1680x1050,1920x1080.
Single card, document classification and more card between automatic cycle play
Schedule:
The default program broadcasting.
Broadcast specified programs on specified date and time.
Automatically deleted overdue program.
Program insertion,broadcast emergency major events.
Program encryption:
Make encryption and authentication for playlists and program material,refuse illegal program broadcast.
Pre-set independent password by grouping.
Certificate U disk, only authenticated program can be imported.
Multi-language menu:
Support Chinese ,English and other languages(Multiple OSD languages can be added according to the sales area and needs )
Split-screen display:
Support switch between both horizontal & vertical display mode
Support switch between full screen and split diplay mode
Both horizontal & vertical display mode support full screen and split display mode
Can realize scroll marquee play,smooth scrolling,without pause
Timing management:
Support turn on,turn off,timer switch,manually 4 o perating mode
Select the timer switch
Support 2 independent timers everyday
Support set up 7 days a week independent ,also support set up according to the daily management
File import:
Support CF card ,SD card ,U disk & other storing media store file ,improt playlist and program material file into these storing media.
Configuer terminal parameters and update the software by CF card ,SD card and U disk
Log management:
Terminal works log
Switch time record
Remont control record
File import and software update record
Terminal log Abnoemal record
Broadcast record log
Fully record program broadcast date,time and broadcast times
Export log files by the terminal ID and date to the U disk
Support retain logs up to 1 month,automatically delaeted the log files beyond this time
Other Similar products:
Trade terms:
1.Price: Above price coveres cost of controller &software,based on EXW SHENZHEN
2.Lead time:within 5-15working days after payment.
3.Payment terms:T/T,Western union,L/C.
We provide servise:
1. Customized requirment special display of 5-82 inches according to customer need is available, OEM&ODM are welcome.
2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .
3. Warranty: one year overall unit ( Non-artificial damage )
Company breif introduction and products range:
ShenZhen User Special Display Technologies CO.,Ltd. As one of the leading providers of special display solution manufactor specialized in development ,production and marketing of LCD monitor 5″-82 ″Various Size. We also provide CCTV LCD monitor, Touch screen LCD monitor,Multimedia kiosk, LCD Interactive mulit Touch screen Kiosk ,Full highly definition LCD display ,LCD Advertising player,Digital signage,Billboards,LCD video wall, LCD splicing,LCD display wall,ect. More question please inform us and your enquiry welcome!
