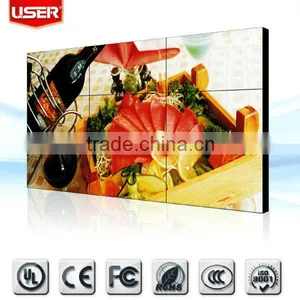

New 42" LG Screen LCD Video Wall

Name: New 42" LG Screen LCD Video Wall
Brand: USER or OEM
SKU: 103448459
Availability: InStock

Negotiable MOQ: 4 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

USER or OEM

Model Number:

US-LC420WUN

Shenzhen USER Special Display Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name USER or OEM

Model Number US-LC420WUN

Specifications

42" lcd video wall
Narrow bezel 20.2mm,brightness 500nits
Rich interfaces
Good quality with moderate price
OEM available

New 42 inch LG panel LCD VIDEO WALL

Specifications
Model No.			US-LC420WUN
Panel Size			42" LG IPS panel (with narrow bezel 20.2mm)
Aspect Ratio			16:9
Max Resolution Support			1920x1080
Color			8Bit,16.7M
Brightness (nits)			500cd/m2
Contrast			3000:1
Visual Angle (H/V)			178°
Response Time			8ms
Life(hrs)			50,000(hrs)
Input and output
DVI			1
HDMI			1
D-15 RGB Input(VGA)			1
YUV/YPbPR			1(3xBNC)
S-video			1(2xBNC)
Composite Video Input/(AV)			3(3xBNC)
Composite Video Output			2(2xBNC)
AUDIO INPUT			1
Split Screen			Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply			AC100V~240V
Maximum Power Consumption			173.3W
Standby Power Consumption			<=3W
Temperature
Working Temperature			0°C~50°C
Working Humidity			20%-80%
Dimension			956.4x549.4x35.5mm
Video Wall Controller(Built-in each Screen)
Model No.	US-P816A
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	338×295×60(mm)
Weight	About 3.5KG
