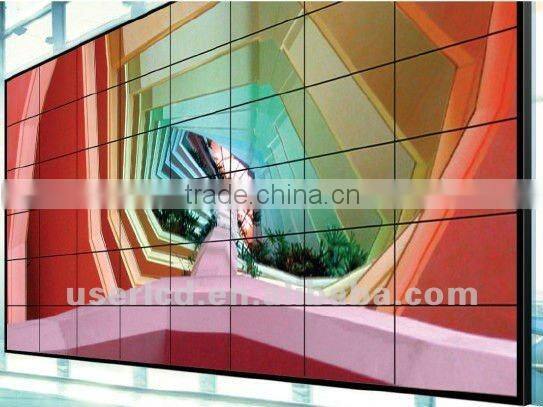

47" LG Panel LCD Video Wall

Name: 47" LG Panel LCD Video Wall
Brand: USER
SKU: 103448481
Availability: InStock

Shenzhen USER Special Display Technologies Co., Ltd.

Negotiable MOQ: 4 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

USER

Model Number:

US-LD470DXS-1

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name USER

Model Number US-LD470DXS-1

Type Other, LED

Application Indoor

Panel Size 47 inch

Max Resolution 1366x768

Viewing Angle 178

Pixel Pitch 0.543

Color 16.7M

Contrast Ratio 2000:1

Brightness 500cd/m2

Response Time 6ms

Input Voltage 126W

Specifications

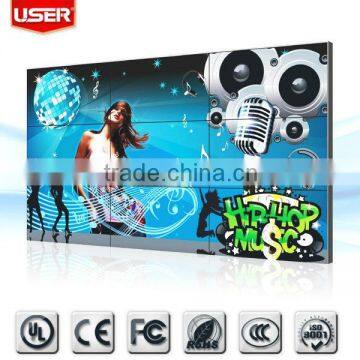

47" LG screen LCD Video Wall
Super narrow bezel 6.3mm
LED backlight
Good products, moderate price
Delivery in time

47" LG panel LCD Video Wall withe LED Backlight

Specifications
Model No.			US-LD470DXS
Panel Size			47'' LG IPS Screen(with narrow bezel 6.3mm, LED backlight)
Aspect Ratio			16:9
Max Resolution Support			1366x768
Color			8Bit,16.7M
Brightness (nits)			700cd/m2
Contrast			1300:1
Visual Angle (H/V)			178°
Response Time			<=6ms
Life(hrs)			>100,000(hrs)
Input and output
DVI			1
HDMI			1
D-15 RGB Input(VGA)			1
YUV/YPbPR			1(3xBNC)
S-video			1(2xBNC)
Composite Video Input/(AV)			3(3xBNC)
Composite Video Output			2(2xBNC)
AUDIO INPUT			1
Split Screen			Support Picture in Picture(PIP/POP/PAP)
Power
Power Supply			AC100V~240V
Maximum Power Consumption			126W
Standby Power Consumption			<=3W
Temperature
Working Temperature			0°C~50°C
Working Humidity			20%-80%
Dimension			1046.8x591.6x49.5mm
Video Wall Controller(Built-in each Screen)
Model No.	US-P816A
Input	CVBS	3BNC inputs, support PAL/NTSC all formats, 2BNC loop outputs
	VGA	1*D15 port, support SVGA/XGA/WXGA
	YPbPr/YCbCr	1* YPbPr/YCbCr input, support PAL/NTSC all formats, and 720P,1080I, HDTV
	Y/C	2*BNC inputs, support PAL/NTSC all formats
Output	LVDS	Support signal or double LVDS output, and WUXGA (1920*1080) display
Operate mode	Panel key operation(needs customization)
	Standard RS232 port( provide free control software)
	Infrared Remote Control Operation
Engineering software	Customized
Working temperature	0~70 °C
working humidity	5~95 %RH
AC voltage power supply	100-240V/50, 60Hz
power consumption	Max 300W,according to different Screen models
Dimension	338×295×60(mm)
Weight	About 3.5KG
