Help CenterSplice Video Wall
US$ 1 - 3
MOQ: 4 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, video wall
Screen Size:
Other, 46''
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Products Status
Stock
Application
Other, video wall
Screen Size
Other, 46''
Response Time
8ms
Brightness
Other, 700cd/m2
Interface Type
D-Sub, DVI, RS232C, YPBPR
Contrast Ratio
3000:1
Resolution
1366 x 768
Widescreen
Yes
Panel Type
TFT
Brand Name
USER
Model Number
US-LTI460AA04
Place of Origin
Guangdong, China
Specifications

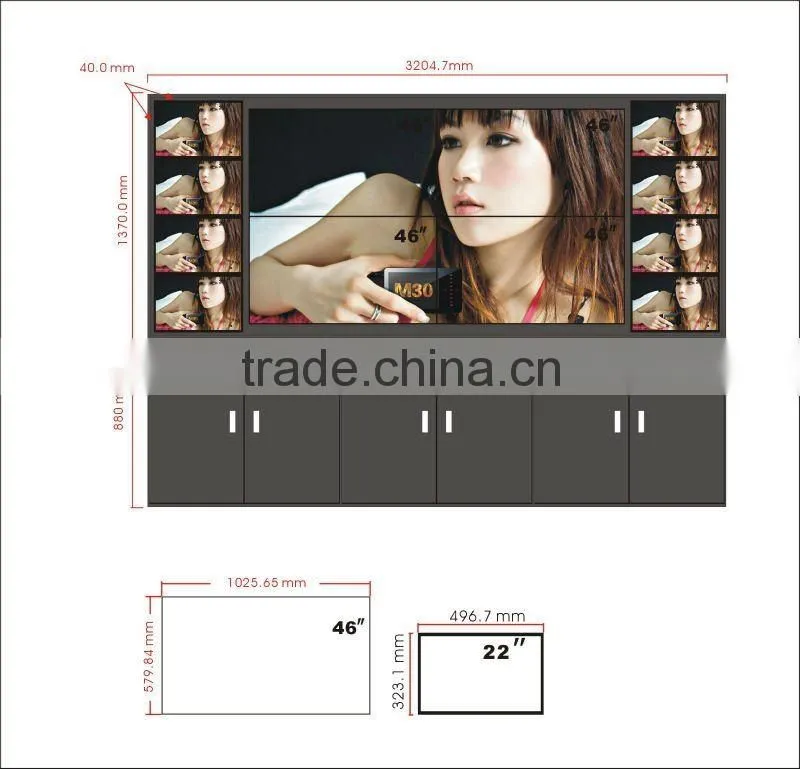

Splice Video Wall:1.Full High Definition
2.Double Splicing
3.Splicing seam is only 6.7mm
Splice Video Wall:
46'' LCD Video wall Product feature
1. Ultra-narrow border design of the current width of only 11mm at present
2. Full-screen high definition display, up to 1080P
3. Unique cell-based, modular design, Which can splice as a liquid crystal wall can also be used alone
4. DID using Samsungs proprietary LCD screen is completely different from the normal LCD screen, display long-life, high stability, and focus on the special display.
5. Long life, stable operation, no burns, injuries, low maintenance costs
A wealth of input and output interface, VGA, DVI, YPbPr, Av interface terminal, can be accessed by computers and a variety of video equipment.
6.Brand-new ultra-wide viewing angle technology extended(S-PVAS-IPS), ensure that 178-degree viewing angle both vertical and horizontally within the image to watch the non-deformation, color without distortion.
Splicing unit prameter:
| 1. Splicing unit (DID LCD screen) specification | ||||||||||
| Specification model | US-SU460HT | |||||||||
| Panel size | 46" Samsung DID LCD screen(with narrow bezel 22mm) | |||||||||
| Display area(mm)/mode | 16:9 | |||||||||
| Resolution | 1366x768 | |||||||||
| Color | 8Bit,16.7M | |||||||||
| Brightness (nits) | 700cd/m2 | |||||||||
| Contrast | 3000:1 | |||||||||
| Visual angle (H/V) | 178° | |||||||||
| Response time | <=6ms | |||||||||
| Life(hrs) | >60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Video input | VGA/DVI/HDMI | |||||||||
| AV/S-VEDIO/YUV | ||||||||||
| Audio input | AUDIO | |||||||||
| Power supply | AC100V~240V | |||||||||
| Maximum power consumption | 200W | |||||||||
| Standby power consumption | <=3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0~50 celsius | |||||||||
| Working humidity | 20%-80% | |||||||||
| Appearance | ||||||||||
| Product dimension( W X H X D) mm - 40" | 911.7X524.2X128 | |||||||||
| Acessory | ||||||||||
| Cable | can supply different kinds of cable | |||||||||
| 2. LCD Video wall processor (US-VWPXX)specification | ||||||||||
| Input | CVBS | Each one BNC terminal, support PAL/NTSC all formats, as well as HDTV720P,1080I,1080P | ||||||||
| RCBHV | Each one D15 port terminal to support SVGA/XGA/WXGA/UXGA | |||||||||
| YPbPr/YCbCr | Re-using the above RGBHV interface, support PAL/NTSC ALL FORMATS, AS WELL as 720P,1080I, 1080P | |||||||||
|
|
||||||||||
| YPbPr/YCbCr | Each 3 BNC terminals,( re-use the above R.G.B of RGBHV),support PAL/NTSC all formats 720P/1080i HDTV | |||||||||
| Operate mode | Panel key operation(needs customization) | |||||||||
| Standard RS232 port( provide free control software) | ||||||||||
| Infrared Remote Control Operation | ||||||||||
| Display unit combination | Can support up to 14 display units by 1 single machine , multi-machines can be paralleled to control up to 12x14 display units |
|||||||||
| Engineering software | Customized | |||||||||
| Working temperature | 0~60 celsius | |||||||||
| working humidity | 5~95 %RH | |||||||||
| AC voltage power supply | 180-240V/50Hz | |||||||||
| power consumption | Max 100W/single machine | |||||||||
| Chassis Specifications | 4U standard rack chassis( can choose 2U/1U chassis when there are fewer output units) | |||||||||
| Chassis Size | 431×264×350(mm) | |||||||||
| Weight | about 15KG | |||||||||
