15" Capacitive Touch Screen CCTV LCD Monitor Quality Choice
US$ 1 - 109
MOQ: 1 Piece
Key Specifications
Get Latest Price
Products Status:
Stock
Application:
Other, customized
Screen Size:
Other, 15"
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
12" Touch Screen LCD MonitorNegotiableMOQ: 1 Piece -
2013 15 Inch Hdmi MonitorNegotiableMOQ: 1 Piece
-
26 Inch All In One Touch Screen Computer MonitorNegotiableMOQ: 10 Pieces
-
42/46/47/55/65inch Touch Screen Interactive Board With PCUS$ 1 - 10MOQ: 1 Set
-
32inch Lcd All-in-one Pc, Touch Screen MonitorUS$ 1 - 10MOQ: 1 Set
Products Status
Stock
Application
Other, customized
Screen Size
Other, 15"
Response Time
10ms
Brightness
500cd/m
Interface Type
D-Sub, HDMI, RS232C, YPBPR
Contrast Ratio
Other, 1200:1
Resolution
1024 x 768
Widescreen
Yes
Panel Type
TFT
Pixel Pitch
0.297*0.297
Brand Name
USER(or OEM)
Model Number
US-T1501C
Place of Origin
Guangdong, China
15" touch screen LCD monitor
Product Description

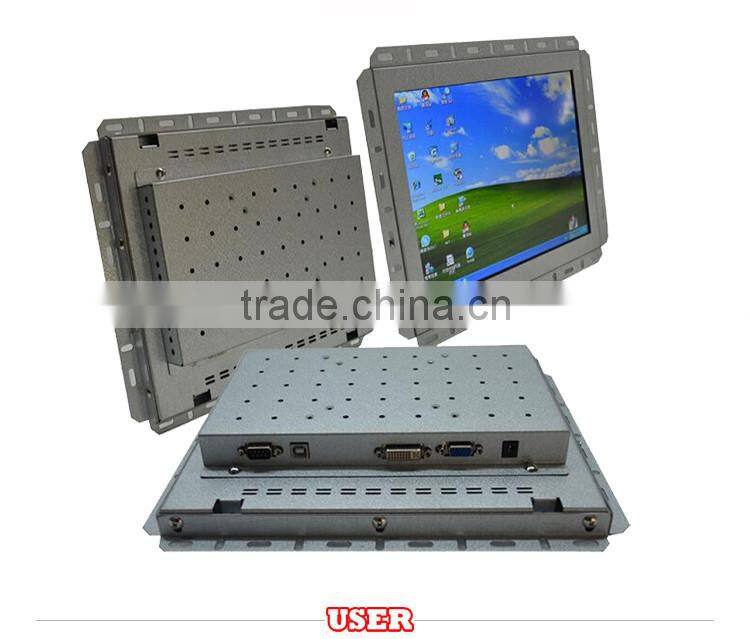

Product Description for 15" Capacitive touch screen CCTV LCD monitor
| Features: | ||
| 1.Apply excellent quality infrared touch screen panel, super high transmittance, high anti-violence ability, resist scratch and mill, dust-proof and waterproof 2.High touch sensitivity, response quick, no drift 3.Professional chip and process technology, ensure high quality image 4.Industrial grade and high performance LCD panel, ensure image high definition, high brightness and dependable performance; 5.The case apply high strengthen steel design, appearance ultrathin, delicate and compact, have excellent performance in prevention grade and electromagnetic shielding; 6.In the farce, paint fine lines, smooth and uniform, integrate the color with the industrial host, have excellent anti-dust and resist-mill 7.Support multi-signals interfaces, also many signals inputs / outputs; 8.High reliability,high stability, suit to education and train, exhibition, public media, video meeting, force guarding, traffic management etc. | ||
| Specification | ||
| LCD Panel | Model No. | US-T1501C |
| Panel Size | 15” TFT-LCD | |
| Display area | 304(W)×228(H) | |
| Max Resolution Support | 1024×768 | |
| Color | 16.7M | |
| Brightness (nits) | 500cd/m2 | |
| Contrast | 1200:1 | |
| Visual Angle (H/V) | H160º V160º | |
| Response Time | 8ms | |
| Life(hrs) | ≥60000 | |
| Touch panel | Specification | Capacitive touch |
| light transmittance | 80%-90% | |
| Hardness | 7H | |
| Click way | Single point | |
| Response Time | 10ms | |
| Output resolution | 4096×4096 | |
| Life span | more than 500W times | |
| Input and output | Composite video input | 2(BNC×2) |
| Composite video loop out | 1(BNC×1) | |
| D-15Pin RGB Input | 1 | |
| HDMI | 1 | |
| S-video | No | |
| YPbPr | 1(BNC×3) | |
| Video | Color system | PAL/NTSC/SECAM |
| OSD display | Language menu | Chinese/English (Other Optional) |
| Power | Input voltage | DC 12V 2.6A |
| Max Power consumption | ≤25W | |
| Standby power consumption | ≤3W | |
| Appearance | Body dimension(Lx W x H)mm | 329*258*60 |
| Panel color | White/Black (customized) | |
| Case Material | Metal(SPCC) | |
| Installation | Wall mount,Bottom case | |
| Work environment | Working temperature | 0°C~50°C |
| Storage temperature | -10°C~60°C | |
| Working humidity | 20%~80% | |
| Storage humidity | 5~95% | |
| Other | Certificate | CE/FCC/3C/RoHS |
| Accessory | Instruction,Warranty card,Certificate of quality,Remote control,data line3.0M,Power cable1.8M | |
