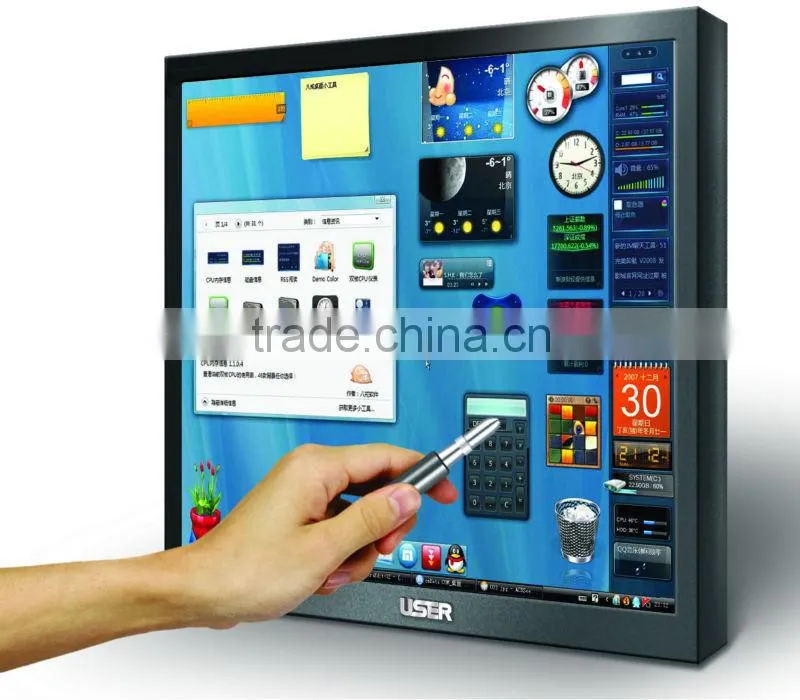

2013 15 Inch Hdmi Monitor
15 inch hdmi monitor
10.4" touch screen LCD monitor
Feature:
special design for CCTV(closed circuit television).
Using durable components to maintain the stability of uninterrupted work.
Intelligent Image Enhancement gives you perfect performance on both static and dynamic images.
Smart Contrast Ratio Technology provides the high contrast ratio, which can dynamically adjust contrast between black and white to provide sharper and brighter images.
Display colors deliver rich and colorful images.
High brightness and Low power consumption.
Multi-Language OSD and User Guide.
Easy to install and maintain.
Specification:
| LCD Panel | Model No. | US-T1041R |
| Panel Size | 10.4” TFT-LCD | |
| Display area | 214(W)×160(H) | |
| Max Resolution Support | 800×600 | |
| Color | 2.6M | |
| Brightness (nits) | 400cd/m2 | |
| Contrast | 800:1 | |
| Visual Angle (H/V) | H100º V70º | |
| Response Time | 6ms | |
| Life(hrs) | ≥60000 | |
| Touch panel | Specification | Resistive Touch |
| Film type | Light film /Fog film | |
| light transmittance | Light film ≥83% / Fog film ≥78% | |
| Hardness | 3H | |
| Click way | Single point | |
| Response Time | 6ms | |
| Output resolution | 4096×4096 | |
| Life span | more than 1000W times | |
| Input and output | Composite video input | 1 BNC |
| Composite video loop out | No | |
| D-15Pin RGB Input | 1 | |
| S-video | No | |
| YPbPr | No | |
| Control signal input and loop out | 1 | |
| Video | Color system | PAL/NTSC/SECAM |
| OSD display | Language menu | Chinese/English (Other Optional) |
| Power | Input voltage | DC 12V 2.6A |
| Max Power consumption | ≤18W | |
| Standby power consumption | ≤3W | |
| Appearance | Body dimension(Lx W x H)mm | 238.4*192.4*35 |
| Panel color | White/Black (customized) | |
| Case Material | Metal(SPCC) | |
| Installation | Wall mount,Bottom case | |
work environment |
Working temperature | 0°C~50°C |
| Storage temperature | -10°C~60°C | |
| Working humidity | 20%~80% | |
| Storage humidity | 5~95% | |
| Other | Certificate | CE/FCC/3C/RoHS |
| Accessory | Instruction,Warranty card,Certificate of quality,Remote control,data line3.0M,Power cable1.8M |
Trade terms:
1.Price: Above price coveres cost of controller &software,based on EXW SHENZHEN
2.Lead time:within 5-15working days after payment.
3.Payment terms:T/T,Western union,L/C.
4.Delivery :DHL ,UPS door to door service , by sea,by air , etc. According to your require .
Package:
Office and Factory:

We provide servise:
1. Customized requirment special display of 5-82 inches according to customer need is available, OEM&ODM are welcome.
2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .
3. Warranty: one year overall unit ( Non-artificial damage )
Certificate:(FCC,CCC,CE,RoHs,ISO9001:2008,UL)
Company breif introduction and products range:
ShenZhen User Special Display Technologies CO.,Ltd. As one of the leading providers of special display solution manufactor specialized in development ,production and marketing of LCD monitor 5″-82 ″Various Size. We also provide CCTV LCD monitor,Touch screen LCD monitor,Multimedia kiosk, high definition LCD display ,LCD Advertising player,Digital signage,Billboards,LCD video wall, LCD splicing,LCD display wall,video wall processor and so on. Any inquires are warmly welcome!
