Home > Consumer Electronics > Display & Accessories > Touch Screen > 22 Inch Touchscreen Monitor( Capacitive)

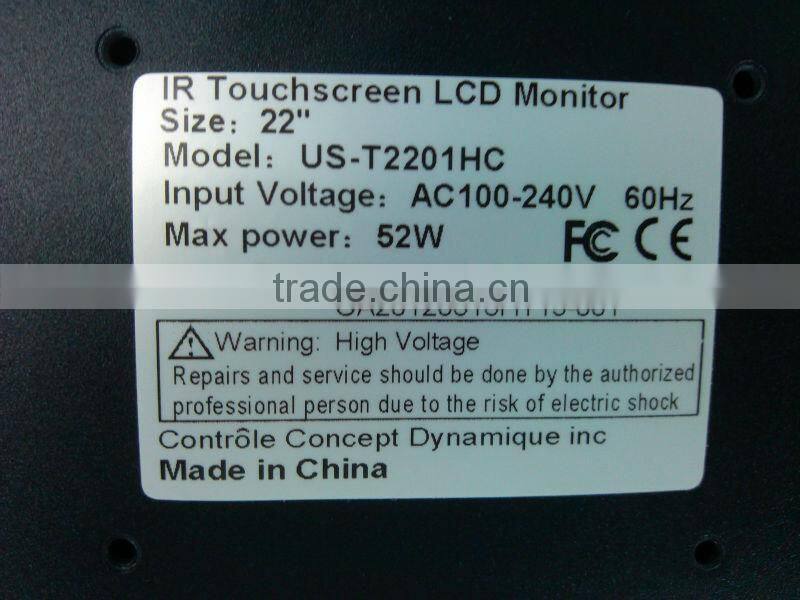

22 Inch Touchscreen Monitor( Capacitive)
US$ 300 - 400
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Products Status:
Stock
Screen Size:
Other, 22
Type:
Capacitive
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
10.4" Touch Screen MonitorUS$ 100 - 299MOQ: 5 Pieces -
12" Touch Screen MonitorUS$ 100 - 299MOQ: 50 Pieces
-
19inch IR Full HD Touch Screen MonitorUS$ 200 - 400MOQ: 1 Piece
-
52 IR LCD Touch Screen MonitorUS$ 2,100 - 2,500MOQ: 50 Pieces
-
Most Popular 19 Inch IR Lcd Touch Screen Monitor for Digital Signage Wall Mount Quality ChoiceUS$ 260 - 300MOQ: 1 Piece
Products Status
Stock
Screen Size
Other, 22
Type
Capacitive
Interface Type
DVI
Resolution
Other, 1680*1050
Brand Name
User
Model Number
US-M2201P
Place of Origin
Guangdong, China
Specifications
high quality capacitive touchscreen monitorsmart response
high contrast, brightness
long working life
Main technical parameters
LCD panel
Panel size: 22 "TFT-LCD
Display area (mm) / model: 476 (W) x 298 (H) / again
The maximum resolution: 1,600*1200
Display color:16.7 M
Pixel Pitch (mm): 0.282 (H) x 0.282 (V),
Visual Angle: H178 º V178 º
Brightness: 450cd /m2
Contrast: 1000:1
Response time: 6ms
Life (hrs): 60,000
Touch panel
Size: Five line resistive touch
Film type: Thin film/fog film (default)
Transmittance: thin film ≥83%/ fog film≥ 78%
Hardness: 3H
Click mode: single point
Response time: 10ms
Output resolution: 4096 x 4096
Life: ≥ 1,000 million times per single click
Input and output
Composite video input: 2 BNC
Y, Pb,Pr/Y,Cb,Cr input: 1
S-video-Y/C input: no
D-15 pin RGB input: 1
HDMI: 1
Composite video output: 1.
AV/YUV video input: 1
PC audio input: 1
USB/serial/PS2 input :(1) only for touch-screen
Video color system PAL /NTSC/ SECAM
OSD display languages (optional) Chinese/English (optional)
Input voltage Rate AC 100 ~ 50/60HZ 240v
Maximum power consumption: ≤55W
Standby power consumption:≤ 3W
Appearance
Exterior material: cold steel (SPCC)/aluminum panel /customization
Exterior color: white/black/customization
Shape dimension: 496.7*323.1*66 (reference)
Installation: wall hung (default) / base
Environment
Work environment temperature/humidity: 0 ° ~ 50 ° c / 20% ~ 80%
Storage temperature/humidity: - 10 ° ~ 60 ° c / 5 ~ 95%
The authentication: FCC / 3C/ CE / RoHS
Accessories: The product manual, certificate of remote control, data 3.0 M, power 1.8 M
