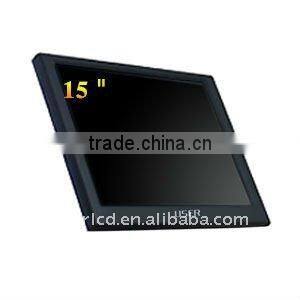

15" 5-wire Resistive LCD Touch Screen Monitor

FOB Price

Negotiable / Piece

5 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	USER(or OEM)
Model Number	US-T1501R

15" Resistive LCD Touchscreen Monitor
Good quality &moderate price
OEM/ODM available
USB for touchscreen
5 wire resistive

Panel	Brand
	Size	15”
	Display area	304(W)×228(H)
	Pixel Pitch	0.297(H)×0.297(V)
	Aspect Ration	4:3
	Resolution	1024X768
	Color depth	16.7M
	View angle	H160º V160º
	Brightness	350cd/m²
	Contrast ration	500:1
	Response time	8ms
Image control	Video decoding	3D
	Signal Noise	3D
	Interlaced separation	3D
	Color system	support PAL/NTSC/SECAM
	Image Code	Standard / Sports / soft / personal settings
	Image adjust	Contrast / brightness / hue / saturation / sharpness
	Color temperature mode	Standard / cool / warm color
	Zoom	Full Screen / Zoom 1 / Zoom 2 / nonlinearity / 14:9
	Dual screen functionality	PIP/POP 4:3
Audio system	Speaker	2×3W(4Ω) (default without speakers)
Audio system	Sound mode	Standard / Music / Movies / Personal settings
Option system	Manu language	Chinese / English
	Remote control	Dedicated
	Button panel	Standby / input / menu / left / right
input/output interface	USB or serial input	1 (for touch screen use)
	Composite video input	2(BNCX2)
	Component (YUV) input	1(BNCX3)
	S-video	no
	D-15pin RGB input	1
	HDMI	1
	Composite video output	1 (BNCX1)
	AV/YUV audio input	1 Hole diameter Φ3.5mm
	PC audio input	1 Hole diameter Φ3.5mm

Touch panel		Power consumption	Power consumption	AV 100~240v 50/60HZ
Specification	Five-wire resistive	Power consumption	Standby power / rated power	≤3W/≤25W
Touch Media	Finger, touch pen opaque objects	Shell	Material	SPCC cold rolled steel
Film categories	Light membrane / fog film (default)		Exterior color	White / black / custom
Transmittance	Fog light film ≥ 83% ≥ 78% membrane		Dimensions	32925860((for reference only)
Hardness	3H		Install	Wall-mounted (default) / Rack -mounted
Click manner	Single point	External conditions	Operating temperature / humidity	0°C~50°C/20%~80%
Response time	≤10ms	External conditions	Storage temperature / humidity	-10°C~60°C/5--95%
Output Resolution	4096X4096	Life time	60000 hrs
Operating pressure	10~70g	Certification	CE/FCC/3C/RoHS
Life time	Single point of more than 100 million	Package	Carton Size	550x500x320(including 4pcs)
Interface	USB(default)/serial /PS2
