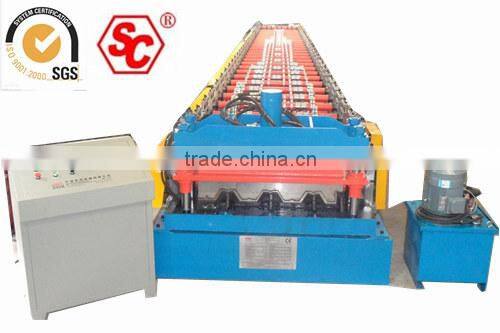

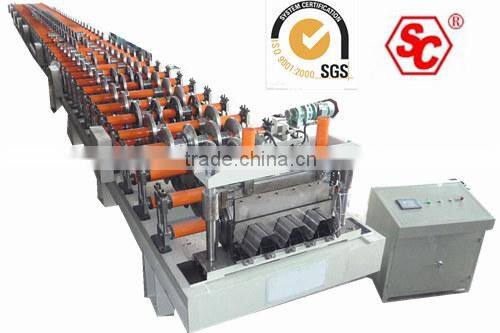

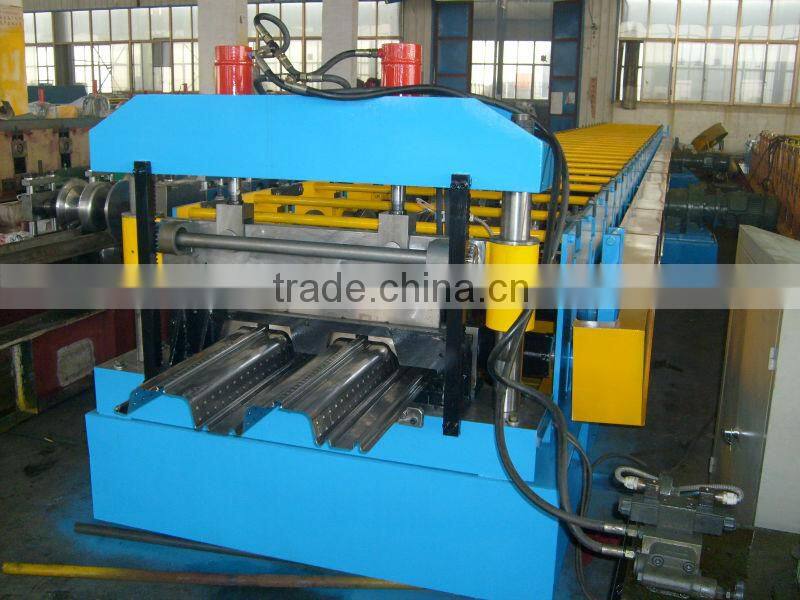

Concrete Floor Decking Sheet Roll Forming Machine/Roofing Machine
Features
1. Professional designing for manufactures roofing & walling
2. Automatically continually manufactures high quality product with PLC.
3. Easy operation : Directly input the data on the touchable screen.
4. Customers decide the profile of products.
5. Saving time and cost owing to high speed running with hydraulic system.
Technical Parameter
1.Main Technical parameter
Material specificationsmm | 1000mmx(0.35-0.7mm) |
Working speed | 10~12M/min |
Roller station | 32stands |
Main motor power | 30kW |
Hydraulic station motor power | 5kW |
Material of roller | NO.45 steel with hard chrome plating |
Main axis material | NO.45 steel with treatment |
Diameter of main axis | φ85mm |
Hydraulic station pressure | 10~12 Mpa |
Shear Material | Cr12 quenching |
PLC control | length tolerance≤2mm |
2.Components
Manual decoiler | 1 set |
Main forming machine | 1 set |
Hydraulic station | 1 set |
PLC | 1 set |
Receiving table | 3 sets |
Flow Chart
