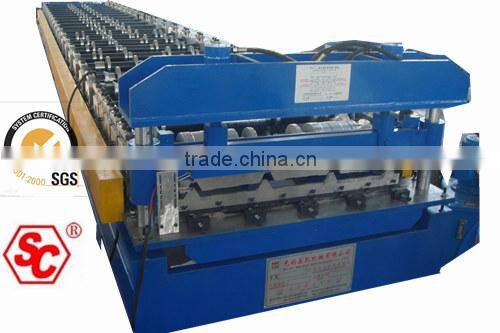

Help CenterHot Selling Corrugated Metal Roofing Sheet /Arc Panel Roll Forming Machine
Related Products
-
Steel Cold Roll Forming Machine for DeckUS$ 1,000 - 92,222MOQ: 1 Set -
Steel Cold Roll Forming Machine for SaleUS$ 1,000 - 92,222MOQ: 1 Set
-
Plate Metal Cold Roll Forming MachineUS$ 1,000 - 92,222MOQ: 1 Set
-
Metal Rolling and Forming Machine for SaleUS$ 30,000 - 999,999MOQ: 1 Set
-
Plate and Metal Cold Roll Forming MachineUS$ 1,000 - 92,222MOQ: 1 Set
Feature
1. Professional designing for manufactures roofing & walling
2. Automatically continually manufactures high quality product with PLC.
3. Easy operation : Directly input the data on the touchable screen.
4. Customers decide the profile of products.
5. Saving time and cost owing to high speed running with hydraulic system.
Technical Parameter
1.Main Technical parameter
Material specificationsmm |
1000mmx(0.35-0.7mm) |
Working speed |
10~12M/min |
Roller station |
20stands |
Main motor power |
5.5kW |
Hydraulic station motor power |
3kW |
Material of roller |
NO.45 steel with hard chrome plating |
Main axis material |
NO.45 steel with treatment |
Diameter of main axis |
φ76mm |
Hydraulic station pressure |
10~12 Mpa |
Shear Material |
Cr12 quenching |
PLC control |
length tolerance≤2mm |
2.Components
Manual decoiler |
1 set |
Main forming machine |
1 set |
Hydraulic station |
1 set |
PLC |
1 set |
Receiving table |
3 sets |
Flow Chart

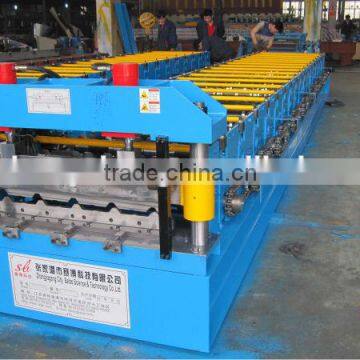

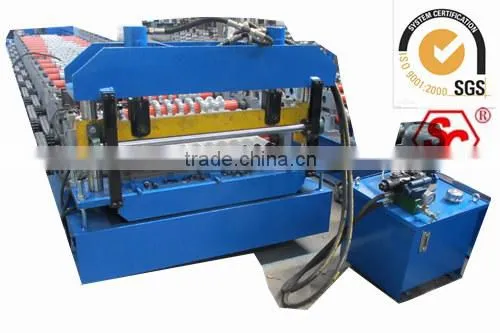

Machine Detail
