Help Center18 Stand Two Rows Guide Rail Roll Forming Machine
Related Products
-
Cold Roll Forming Machine -ShengchongUS$ 10,000 - 90,000MOQ: 1 Set -
Roll Forming Machine for SaleUS$ 50,000 - 92,222MOQ: 1 Set
-
Plate Forming Machine for SaleUS$ 10,000 - 100,000MOQ: 1 Set
-
Steel Cold Roll Forming MachineUS$ 1,000 - 92,222MOQ: 1 Set
-
Steel Deck Cold Roll Forming MachineUS$ 1,000 - 988,888MOQ: 1 Set

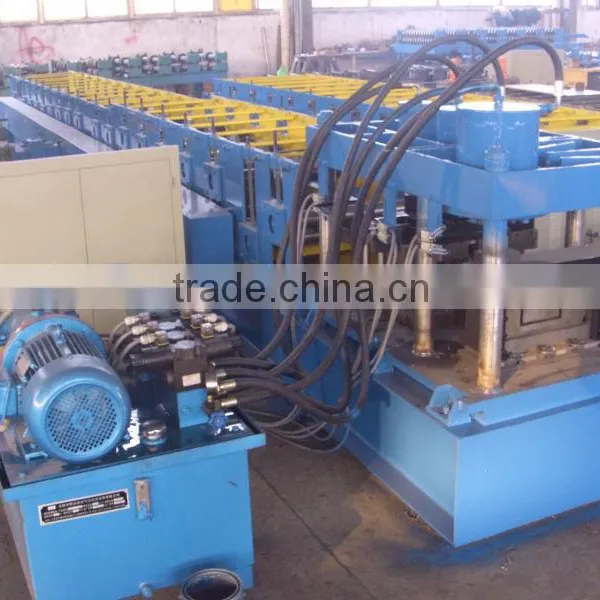

Two raws guide rail roll forming machine
Guide rail roll forming machine
The production flow of equipment
Decoiling — leveling — feeding(servo)— Punching — roll forming —Revising— hydraulic cutting — product packing manual
The structure of equipment
1, Hydraulic decoiler
lSingle unrolling machine, one side can put material
lAdopt automatic hydraulic system
lCoil weight (Max):2500kg
lCoil dia (Max):1800mm
lCoil Width (Max.):300mm
lPower:3KW
2, feeding and leveling
lfeed into unit oriented wheel(can adjust right and left)
linto feeding roller, dia is 80mm,material 45# steel, quenched 48°-52°, chromed
lleveling is three rollers over four rollers, quenched and chromed
lpower: 4kw
3. sevro feeding machine
Function:feeding
structural features:adopt sevro motor to feeding in Multistage, which can input ten different lengths. Liquid crystal touch screen is easy to set the datas. Auto-induction system is connected with the punch machine which is controlled it.
Power: 3kw
4. punching
lusing punching machine
lworking pressure:63T
lworking speed: 30 times per minuter
5. roll forming
lmain motor power: 18.5kw
lDecelerating motor: BWD14-43-18.5kw, made in Shanghai or Changzhou
ladopt cold system when roll forming
ldrive: by one inch double chain
lThe thickness of the sheet: 2.0-2.5mm galvanized steel
lmain shaft dia: 76mm material: NO.45forge steel
lroller material: GCR15 quenched 58°-60°,chromed
lroll station:16 stations
lTiming by transducer:5m--8m/min(including punching time)
lTransducer: Panasonic made in Japan. 380V 50HZ
lComputer: PLC
lComputer operating panel: touching screen
lStructure:cast iron
lBearing: brand of HRB,type:6212-RZ
Revising station:1 station
material: ASTM52100 polished and coated with chrome HRC58-62°
lThe logo & the nicking on two sides and jag on the edge, which are the material of Cr12 quenched to HRC55°-60°(details see the drawing) The logo will appear every 500-600mm.
6. cutting
lhydraulic cut:5.5kw
lknife material: Cr12,quenched 58°-62°
lmachine needs two sets of cutters
lworking pressure:25mpa
lworking journey: 80mm
7. the Outside size:
l18~24m long*1.7m wide*1.5m high
8. Run out table
lJointed by 60mm*40mm tube
lsize:1.5m long*0.8m wide*0.6-1m high
