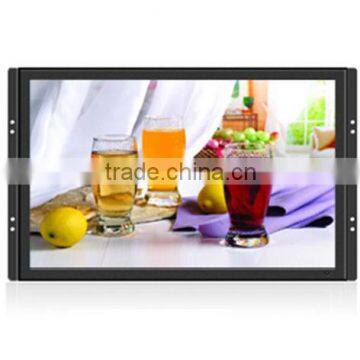

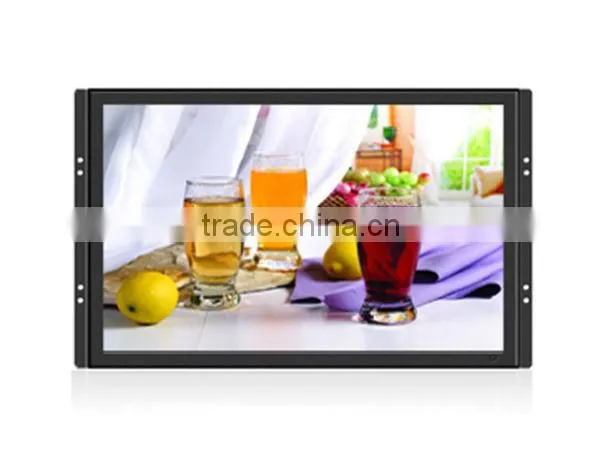

26'' Touch Screen Open Frame, 6.5''-42'' Optional

Name: 26'' Touch Screen Open Frame, 6.5''-42'' Optional
Brand: USER/OEM
SKU: 103441663
Availability: InStock

US$ 1 - 5 MOQ: 1 Piece

Key Specifications

Products Status:

Stock

Screen Size:

Other, 26''

Type:

Infrared

Shenzhen USER Special Display Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Screen Size Other, 26''

Type Infrared

Interface Type D-Sub, DVI, USB, Other, D-Sub, DVI, USB, DVI/HDMI/CVBS/YPBPR

Resolution Other, 1366*768

Brand Name USER/OEM

Model Number KFS-M2601P

Place of Origin Guangdong, China

Specifications
Model No.	KFS-M2601P
Panel size	26" TFT-LCD
Display area(mm)/mode	575.6(W)×325.6(H) 16:9
Maximum resolution	1366×768
Display color	16.7M
Pixel Pitch(mm)	0.1405(H)×0.4215(V)
Brightness (nits)	400nits
Contrast	3000:1
Visual angle	178°/178°
Response time	5ms
Horizontal frequency	30-75KHZ
Vertical frequency	56-75KHZ
Life(hrs)	60,000(hrs)
Input and output
Composite video input	2 (BNC×2)
YPbPr input	1 (BNC×3)
VGA	1
DVI	1
HDMI	1
Composite video output	1 (BNC×1)
Video
Color system	PAL/NTSC/SECAM
OSD display( screen menu display)
Menu language	Chinese/English
Power
Power supply	AC100V~240V,50/60Hz
Maximum power consumption	100W
Standby power consumption	3W
Temperature
Working temperature	0°C~50°C
Storage temperature	-20°C~60°C
Working humidity	10%~75%
Storage humidity	85%
Appearance
Body dimension(Lx W x H)mm	658386.694
Panel color/appearance	White,black,customized
Case Material	Metal
Net weight	15kg
Installation	Open frame
