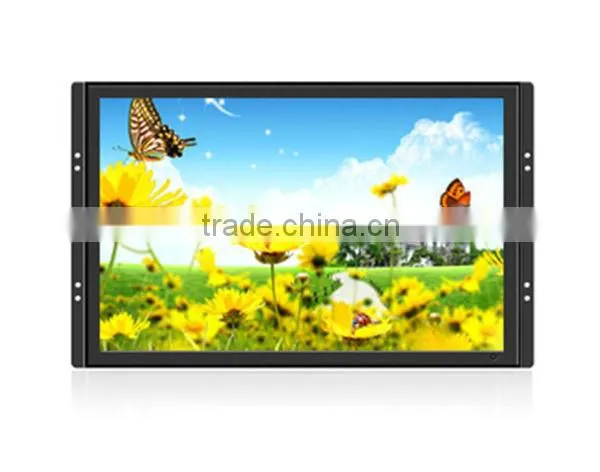

21.5'' FHD, LED Backlight Open Frame, 6.5''-42'' Available

Name: 21.5'' FHD, LED Backlight Open Frame, 6.5''-42'' Available
Brand: USER/OEM
SKU: 103441677
Availability: InStock

US$ 1 - 5 MOQ: 1 Piece

Key Specifications

Products Status:

Stock

Application:

Desktop

Screen Size:

Other, 21.5''

Shenzhen USER Special Display Technologies Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Products Status Stock

Application Desktop

Screen Size Other, 21.5''

Response Time 5ms

Brightness 300cd/m

Interface Type D-Sub, DVI, HDMI, YPBPR, Other, D-Sub, DVI, HDMI, YPBPR, CVBS IN/OUT

Contrast Ratio 1000:1

Resolution 1920 x 1080

Widescreen Yes

Panel Type TFT

Pixel Pitch 0.248mm

Brand Name USER/OEM

Model Number KFS-M2150P

Place of Origin Guangdong, China

Specifications
Model No.	KFS-M2150P
Panel size	21.5" TFT-LCD
Display area(mm)/mode	476.8(W)*268.1(H)
Maximum resolution	1920*1080
Display color	16.7M
Pixel Pitch(mm)	0.248mm
Brightness (nits)	300nits
Contrast	1000:1
Visual angle	178°/178°
Response time	5ms
Horizontal frequency	30-75KHZ
Vertical frequency	56-75KHZ
Life(hrs)	60,000(hrs)
Input and output
Composite video input	2 (BNC×2)
YPbPr input	1 (BNC×3)
VGA	1
HDMI	1
Composite video output	1 (BNC×1)
Video
Color system	PAL/NTSC/SECAM
OSD display( screen menu display)
Menu language	Chinese/English
Power
Power supply	AC100V~240V,50/60Hz
Maximum power consumption	50W
Standby power consumption	3W
Temperature
Working temperature	0°C~50°C
Storage temperature	-20°C~60°C
Working humidity	10%~75%
Storage humidity	85%
Appearance
Body dimension(Lx W x H)mm	518294.870
Panel color/appearance	White,black,customized
Case Material	Metal
Net weight	9.2kg
Installation	Open frame
