Home > Products > Industrial LCD Monitor > 15 Inch Industrial Grade LCD Monitor With Metal Case
15 Inch Industrial Grade LCD Monitor With Metal Case
- Shenzhen
- T/T Money Gram Credit Card
You May Like
Product Details
| Products Status | Stock | Application | Other, Embedded | |
| Screen Size | Other, 15" | Response Time | 5ms | |
| Brightness | 350cd/m | Interface Type | D-Sub, DVB, DVI, HDMI, RS232C, S-Video, TV-out, YPBPR | |
| Contrast Ratio | 800:1 | Resolution | 1280 x 1024 | |
| Widescreen | Yes | Panel Type | TFT | |
| Pixel Pitch | 0.297*0.297 | Brand Name | USER(or OEM) | |
| Model Number | US-I1501E | Place of Origin | Guangdong, China |
Product Description
15 inch industrial LCD monitor With metal case
Features:
1.The panel made of aluminum alloy and control box made of SPCC with Zinc plated, effective anti-static and electromagnetic interference.
2.Special design for dust and shock proof, suitable for harsh environment.
3.Adopt industrial material with high performance on durability and stability.
4.High contrast and brightness, wide viewing angle, which greatly improve the image layering.
5.Variety of input and output interfaces, broad scope of application.
6.Easy to install and maintain,cost saving.

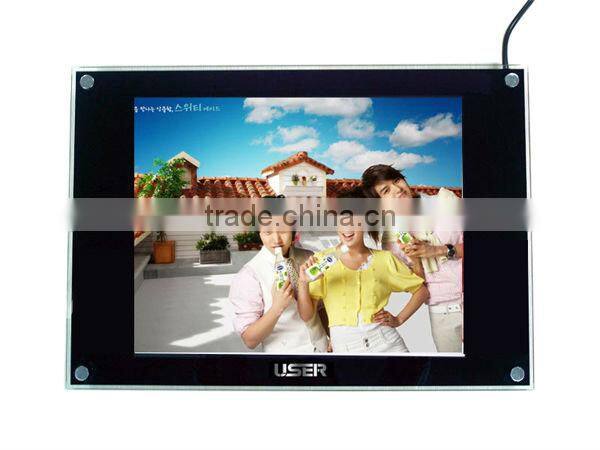

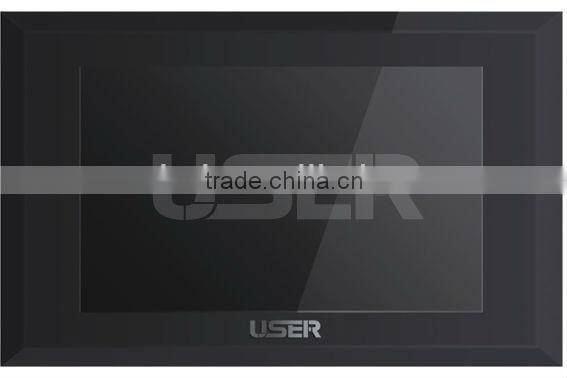

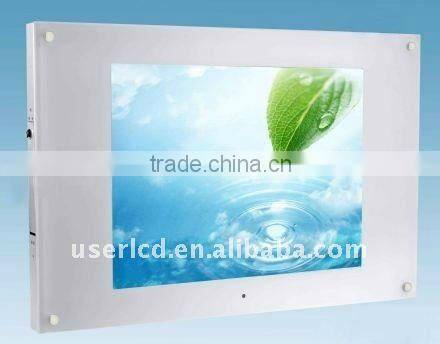

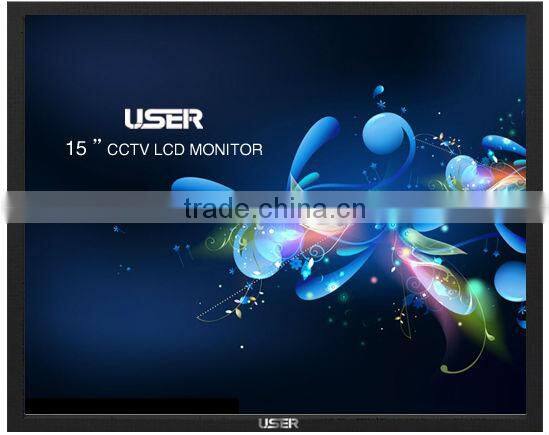

Product show:
Application:
Industry, Vehicle-mounted ,CNC (computerized numerical control) equipment, Industrial monitoring ,DCS (Distributed Control System) operation platform, Military, Advertisement.
| Specifications | ||||||||||
| Model No. | US-M1501E | |||||||||
| Panel size | 15" TFT-LCD | |||||||||
| Display area(mm)/mode | 306(W)×230(H) 4:3 | |||||||||
| Maximum resolution | 1024×768 | |||||||||
| Display color | 16.7M | |||||||||
| Pixel Pitch(mm) | 0.297(H)×0.297(V) | |||||||||
| Brightness (nits) | 350cd/m2 | |||||||||
| Contrast | 800:1 | |||||||||
| Visual angle | 150°/160° | |||||||||
| Response time | 5ms | |||||||||
| Horizontal frequency | 30-75KHZ | |||||||||
| Vertical frequency | 56-75KHZ | |||||||||
| Life(hrs) | 60,000(hrs) | |||||||||
| Input and output | ||||||||||
| Composite video input | 2 (BNC×2) | |||||||||
| YPbPr input | 1 (BNC×3) | |||||||||
| S-video | 1 (optional) | |||||||||
| VGA | 1 | |||||||||
| DVI/HDMI | 1 (optional) | |||||||||
| Composite video output | 1 (BNC×1) | |||||||||
| Video | ||||||||||
| Color system | PAL/NTSC/SECAM | |||||||||
| OSD display( screen menu display) | ||||||||||
| Menu language | Chinese/English | |||||||||
| Power | ||||||||||
| Power supply | AC100V~240V,50/60Hz | |||||||||
| Maximum power consumption | 25W | |||||||||
| Standby power consumption | 3W | |||||||||
| Temperature | ||||||||||
| Working temperature | 0°C~50°C | |||||||||
| Storage temperature | -20°C~60°C | |||||||||
| Working humidity | 10%-90% | |||||||||
| Storage humidity | 10%-90% | |||||||||
| Appearance | ||||||||||
| Body dimension(Lx W x H)mm | 329.0×257×57 | |||||||||
| Panel color/appearance | White,black,customized | |||||||||
| Case Material | Plastic | |||||||||
| Installation | Wall-mounted,desktop(optional) | |||||||||
| Trade terms,Delivery& Conditions | ||||||||||
| Sample Lead time | 3-7working days | |||||||||
| Bulk Order Lead time | 5-20working days | |||||||||
| Payment Terms | T/T / WesternUnion | |||||||||
| Warranty | 1year | |||||||||
We provide servise:
1. Customized requirment special display of 5-82 inches according to customer need is available, OEM&ODM are welcome.
2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .
3. Warranty: one year overall unit ( Non-artificial damage )
Company breif introduction and products range:
Shenzhen User Special Display Technologies CO.,Ltd. As one of the leading providers of special display solution manufactor specialized in development ,production and marketing of LCD monitor 5″-82 ″Various Size. We also provide CCTV LCD monitor,Touch screen LCD monitor,Multimedia kiosk, high definition LCD display ,LCD Advertising player,Digital signage,Billboards,LCD video wall, LCD splicing,LCD display wall,video wall processor and so on. Any inquires are warmly welcome!
