Big Size 70 Inch High Definition TFT LCD Monitors With Industrial Grade A+ Panel

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shenzhen
Payment TermsT/T Money Gram Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Desktop
Screen Size	Other, 70"	Response Time	5ms
Brightness	500cd/m	Interface Type	D-Sub, DVI, HDMI, S-Video, TV-out, YPBPR
Contrast Ratio	1500:1	Resolution	1920 x 1080
Widescreen	Yes	Panel Type	TFT
Pixel Pitch	0.807*0.807	Brand Name	USER(or OEM)
Model Number	US-HD7001	Place of Origin	Guangdong, China

Product Description

Big size 70 inch High definition TFT LCD monitor with Industrial grade A+ panel

Specifications
Model No.					US-M7001P
Panel size					70"TFT-LCD
Display area(mm)/mode					1561.6(W)×883.6(H) 16:9
Maximum resolution					1920×1080
Display color					16.7M
Pixel Pitch(mm)					0.807(H)×0.807(V)
Brightness (nits)					450cd/m2
Contrast					2000:1
Visual angle					178°/178°
Response time					5ms
Horizontal frequency					30-75KHZ
Vertical frequency					56-75KHZ
Life(hrs)					60,000(hrs)
Input and output
Composite video input					3 (BNC×3)
YPbPr input					1 (BNC×3)
S-video					2 (BNCx2)
VGA					1
DVI					1
HDMI					1
Composite video output					2 (BNCx2)
Video
Color system					PAL/NTSC/SECAM
Compatible HDMI input/DVI					480P,576P,720P,1080I,1080P
3D Comb filter					Yes
Video reduction noise					Yes
OSD display( screen menu display)
Menu language					Chinese/English
Power
Power supply					AC100V~240V,50/60Hz
Maximum power consumption					250W
Standby power consumption					3W
Temperature
Working temperature					0°C~50°C
Storage temperature					-20°C~60°C
Working humidity					10%~90%
Storage humidity					10%~90%
Appearance
Body dimension(Lx W x H)mm					1660mm×982mm×157.5mm
Panel color/appearance					White,black,customized
Case Material					Metal
Net weight					78kg
Installation					Wall-mounted

Trade terms:

1.Price: Above price coveres cost of controller &software,based on EXW SHENZHEN

2.Lead time:within 5-15working days after payment.

3.Payment terms:T/T,Western union,L/C.

We provide servise:

1. Customized requirment special display of 5-82 inches according to customer need is available, OEM&ODM are welcome.

2. Reasonable and satisfactory solutions Provided to you by our professional engineers and staffs .

3. Warranty: one year overall unit ( Non-artificial damage )

Company breif introduction and products range:

ShenZhen User Special Display Technologies CO.,Ltd. As one of the leading providers of special display solution manufactor specialized in development ,production and marketing of LCD monitor 5″-82 ″Various Size. We also provide CCTV LCD monitor,Industrial LCD monitor,Broadcast LCD monitor,medical LCD monitor,Touch screen LCD monitor,Multimedia kiosk, high definition LCD display ,LCD Advertising player,Digital signage,Billboards,LCD video wall, LCD splicing,LCD display wall,video wall processor and so on. Any inquires are warmly welcome!

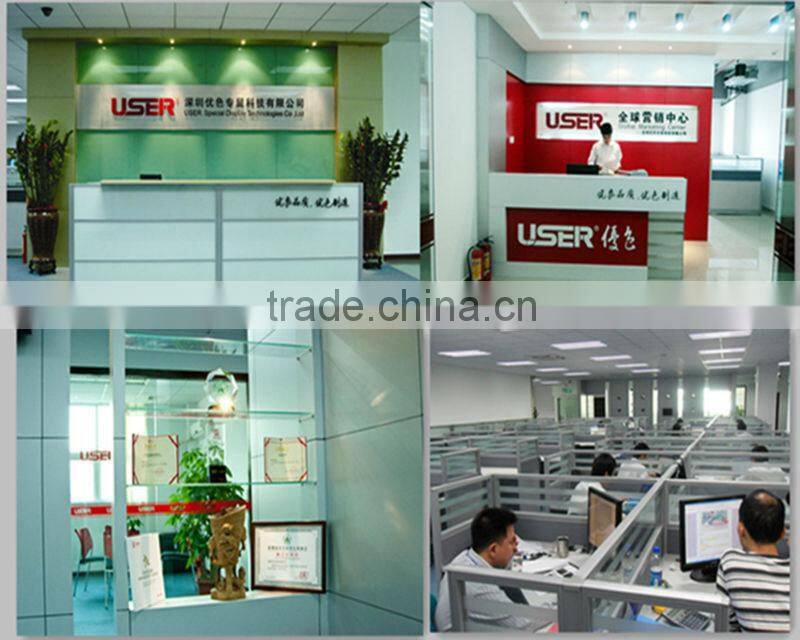

Office and factory:

Certificate:( CE,RoHs, CCC,FCC,UL,ISO9001:2008 )
