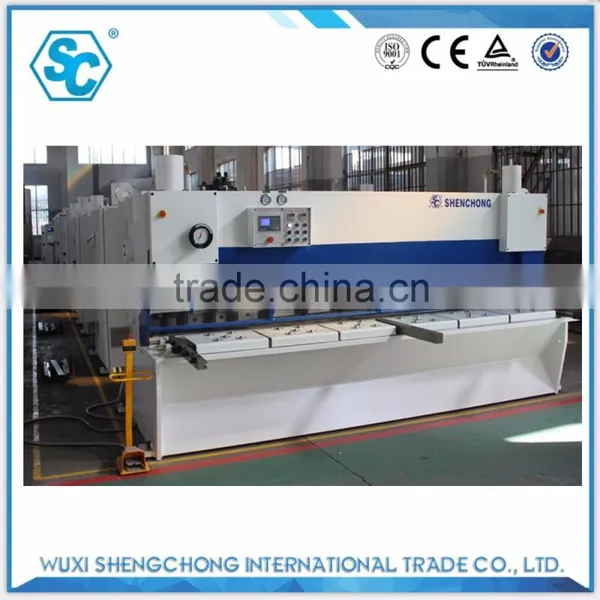

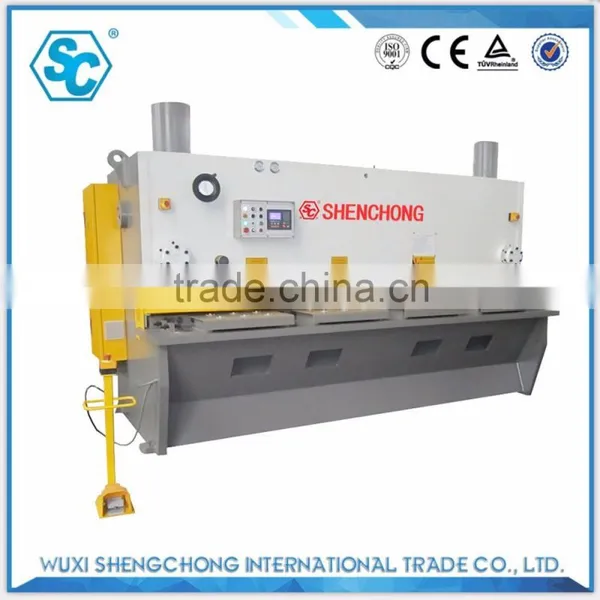

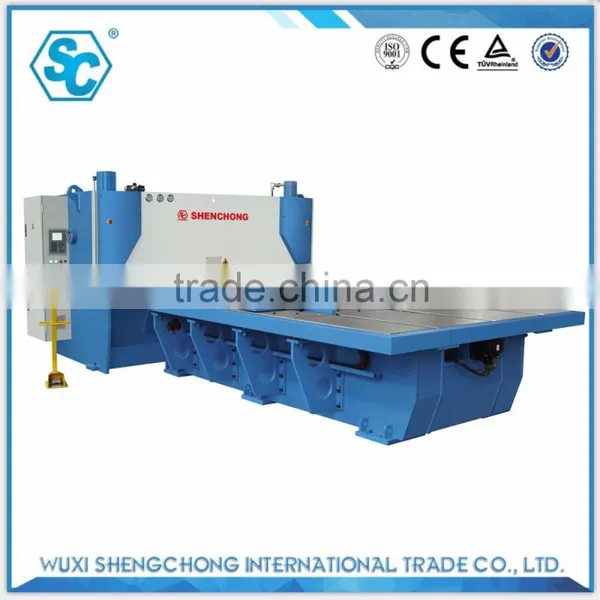

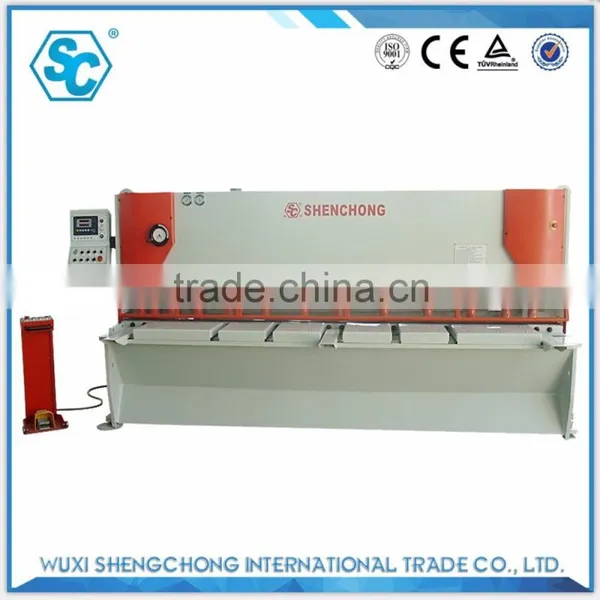

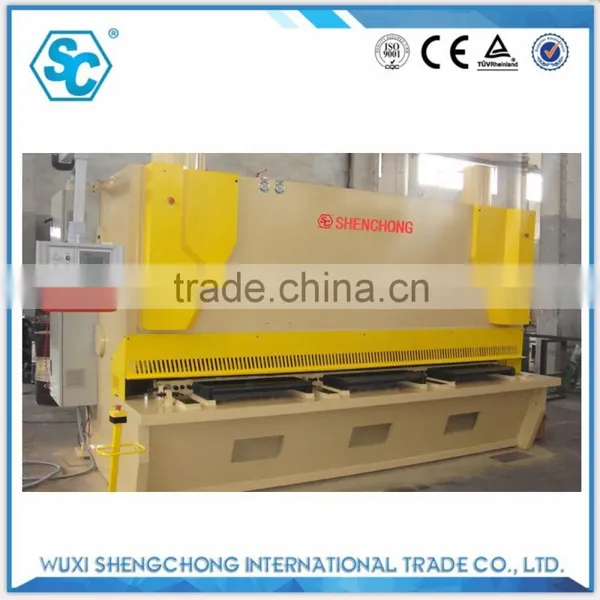

| Equipment name | QC11K-16X3200 Touch Screen iron guillotine shear mahine |
Welded steel plate construction, eliminate internal stress by heat treatment, with high strength and good righty. Advanced integrate hydraulic system with an excellent reliability.
Rapidly, accurately and conveniently adjust the blade clearance with the hand wheel.
Technical parameter:
| Model |
Cutting Thickness (450Mpa) |
Cutting Length (mm) |
Throat Depth (mm) |
Back Gauge Range (mm) |
Cut Angle |
Strokes Per Minutes |
Main Motor (KW) |
Dimensions (LxWxH) (MM) |
| 4x2000 | 4 | 2000 | 80 | 600 | 0.5°~2° | 14 | 5.5 | 2600x1680x1750 |
| 4x2500 | 4 | 2500 | 80 | 600 | 0.5°~2° | 14 | 5.5 | 3125x1750x1765 |
| 6x2500 | 6 | 2500 | 80 | 750 | 0.5°~1°30′ | 14 | 7.5 | 3100x1725x1900 |
| 6x3200 | 6 | 3200 | 80 | 750 | 0.5°~1°30′ | 12 | 7.5 | 3935x1840x1995 |
| 6x4000 | 6 | 4000 | 80 | 750 | 0.5°~1°30′ | 10 | 7.5 | 4650x1840x2100 |
| 6x5000 | 6 | 5000 | 80 | 750 | 0.5°~1°30′ | 8 | 7.5 | 5650x2050x2400 |
| 6x6000 | 6 | 6000 | 80 | 750 | 0.5°~1°30′ | 8 | 7.5 | 6650x1980x2380 |
| 8x2500 | 8 | 6000 | 80 | 750 | 0.5°~2° | 14 | 7.5 | 3135x1840x2075 |
| 8x3200 | 8 | 3200 | 80 | 750 | 0.5°~2° | 12 | 7.5 | 4650x2030x2075 |
| 8x4000 | 8 | 4000 | 80 | 750 | 0.5°~2° | 10 | 7.5 | 4650x2030x2075 |
| 8x5000 | 8 | 5000 | 80 | 750 | 0.5°~2° | 7 | 15 | 5650x2050x2400 |
| 8x6000 | 8 | 6000 | 100 | 750 | 0.5°~2° | 7 | 15 | 6805x2115x2715 |
| 10x2500 | 10 | 6000 | 100 | 750 | 0.5°~2°30′ | 10 | 15 | 3195x1915x2205 |
| 10x3200 | 10 | 3200 | 100 | 750 | 0.5°~2°30′ | 8 | 15 | 3895x1900x2235 |
| 10x4000 | 10 | 4000 | 100 | 750 | 0.5°~2°30′ | 6 | 15 | 4965x1970x2270 |
| 10x5000 | 10 | 5000 | 100 | 750 | 0.5°~2°30′ | 5 | 15 | 5700x2115x2800 |
| 10x6000 | 10 | 6000 | 100 | 750 | 0.5°~2°30′ | 5 | 15 | 5700x2115x2800 |
| 12x2500 | 12 | 2500 | 100 | 750 | 0.5°~2°30′ | 10 | 15 | 6905x2115x2800 |
| 12x3200 | 12 | 3200 | 100 | 750 | 0.5°~2°30′ | 8 | 15 | 3195x2040x2210 |
| 12x4000 | 12 | 4000 | 100 | 750 | 0.5°~2°30′ | 6 | 15 | 4710x1950x2240 |
| 12x5000 | 12 | 2500 | 100 | 750 | 0.5°~2°30′ | 5 | 30 | 5750x2115x2800 |
| 12x6000 | 12 | 6000 | 100 | 750 | 0.5°~2°30′ | 5 | 30 | 7150x2300x3100 |
| 16x2500 | 16 | 2500 | 100 | 750 | 0.5°~2°30′ | 8 | 15 | 3215x1970x2340 |
| 16x3200 | 16 | 3200 | 100 | 750 | 0.5°~2°30′ | 7 | 15 | 3915x1970x2455 |
| 16x4000 | 16 | 4000 | 100 | 750 | 0.5°~2°30′ | 6 | 15 | 4715x2010x2590 |
| 16x5000 | 16 | 5000 | 100 | 750 | 0.5°~3° | 5 | 22 | 6000x2300x3000 |
| 16x6000 | 16 | 6000 | 100 | 750 | 0.5°~3° | 5 | 37 | 7250x2400x3100 |
| 20x2500 | 20 | 2500 | 100 | 750 | 0.5°~3° | 6 | 22 | 3235x2020x2465 |
| 20x3200 | 20 | 3200 | 120 | 750 | 0.5°~3° | 5 | 30 | 4150x2065x2755 |
| 20x4000 | 20 | 4000 | 120 | 750 | 0.5°~3° | 4 | 30 | 4955x2125x2885 |
| 20x5000 | 20 | 5000 | 120 | 750 | 0.5°~3° | 4 | 37 | 6000x2300x3050 |
| 20x6000 | 20 | 6000 | 120 | 750 | 0.5°~3° | 5 | 37 | 7150x2450x3280 |
| 25x2500 | 25 | 2500 | 120 | 750 | 0.5°~3.5°′ | 5 | 37 | 3465x2130x2710 |
| 25x3200 | 25 | 3200 | 120 | 750 | 0.5°~3.5°′ | 5 | 37 | 4120x2200x3000 |
| 25x4000 | 25 | 4000 | 120 | 750 | 0.5°~3.5°′ | 4 | 37 | 4950x2200x3150 |
CNC system introduction:
The DAC-360 control provides a complete solution for shearing machines. It includes the control of back gauge, cutting angle, stroke length and gap, based on state of the art electronics. Beside back gauge control, the DAC-360 automatically calculates the required setting for the cutting angle and gap depending on material properties and thickness. The stroke length is limited for minimal production time and related to the material length to cut.
Feature and Advantages:
1. Hydraulic driven, welding blade body, whole machine structure welding with good rigidity and strength.
2. Gas return structure moves smooth and swift, hydraulic return is available, with lower noisy and stable working performance.
3. Cutting stroke could be adjusted when cutting different length plate, both up and bottom blade have 4 usable edges.
4. Plate clamping fixture uses independent hold down cylinder. There is plastic pad on the bottom of each cylinder to protect the plate being scratched.
5. CNC controller is close loop control system, fast speed, high accuracy, good stability; guarantee the accuracy of back gauge movement. Furthermore, the system has the function of compensation and auto inspection and so on.
6. Ball screw on the back gauge, moving without gap.
Hydraulic Shear Machine QC11K series Technical parameter
Sheng Chong Machine is a high-tech enterprise integrated by R&D, production and after-sale service in CNC hydraulic forging Machine.
Our factory occupies more than 30,000 m2, it has excellent and professional technical team, 10 R&D personnel with strong developing capability; around 200 workers producing more than 800 sets machines each year, and professional after-sales team to solve various problems which the customer may encounter in using the machine. With new design, fine technology, we get a good evaluation and brand effect in Beijing Machine tool Show, Italy Milan machine tool exhibition, Australia machinery exhibition etc.
Our main products contain QC11K series CNC guillotine cutting machine, QC11Y series hydraulic shearing machine, QC11YK series fast hydraulic shearing machine for metal plate, QC12K series NC hydraulic swing beam shear machine,QC12Y series hydraulic swing beam cutting machine; WC67Y series hydraulic press brake, WC67K series CNC hydraulic bending machine,WE67K series CNC electro-hydraulic synchronization press brake; SW11C series 3 roller rolling machine, W12NC series 4 rollers rolling machine for metal plate; Laser cutting machine, flame & plasma cutting machine; Automatic slitting machine line; Bending mould for press brake, blade for shearing machine etc.
So far, our company has been serving more than thousands of customers in light industry, aviation, metallurgy, instrumentation, electrical, stainless steel products, construction and decoration and other industries.
With high quality hydraulic machine, competitive price and excellent service, we have gained great reputation from more and more domestic and foreign customers!
1. Are you a trading company or factory?
--- We are factory occupying more than 30,000 m2, with excellent and professional technical team, 10 R&D personnel, professional after-sales team, and around 200 workers producing more than 800sets machines each year.
2. Does your company supply and build the machines to suit customer's needs and specifications?
--- Yes, we can custom-made the machine according to your requirements.
3. What is your advantages over your competitors' machine?
--- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.
4. Does the machine come with a guarantee?
--- We offer one year of warranty, during this time the technical guidance and accessories are provided for free.
5. Can I go to visit your factory?
--- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.
6. How to get quicker quotation?
--- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
More kinds machines you can have a widely choice:
| Number | Model | Forging machinery |
| 1 | QC11Y | hydraulic shearing machine |
| 2 | QC11K | cnc shearing machine |
| 3 | QC11YK | rapid hydraulic shearing machine |
| 4 | WC67Y | hydraulic bending machine |
| 5 | WC67K | cnc bending machine |
| 6 | WE67K | electro-hydraulic synchronous CNC bending machine |
| 7 | WG67K | high speed bending machine |
| 8 | SW11SNC | rolling machine series |
