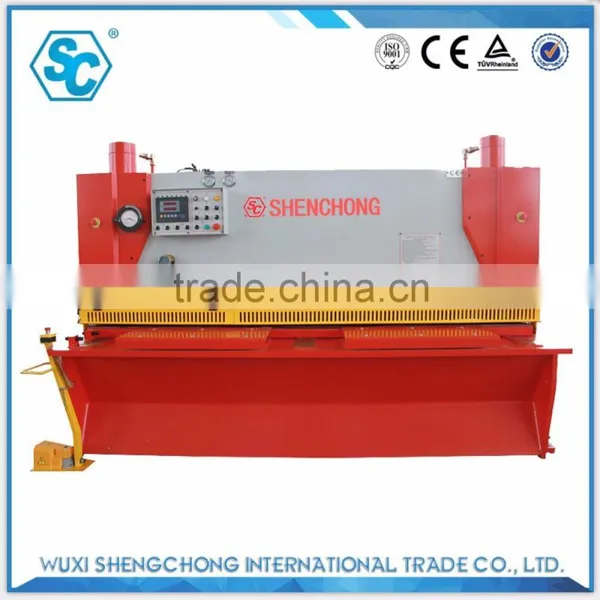

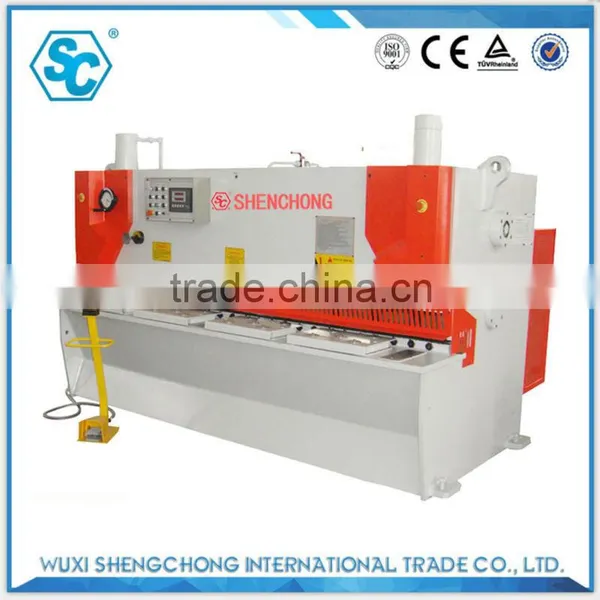

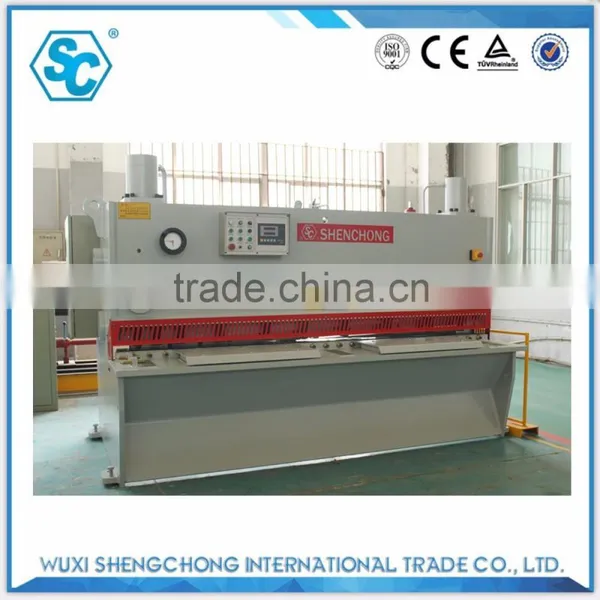

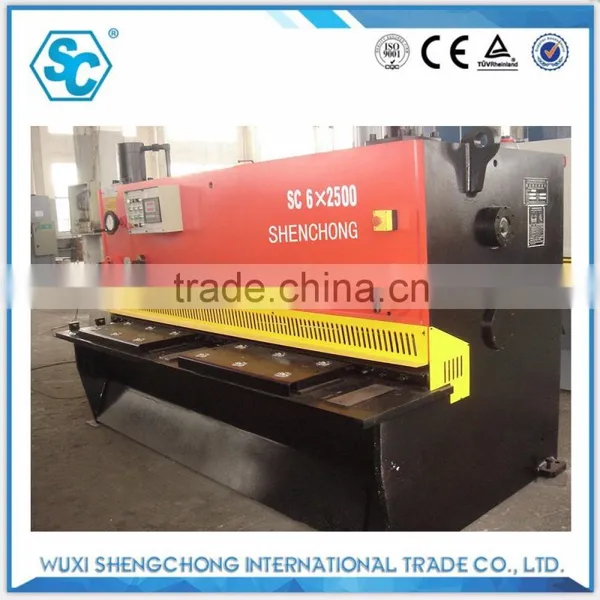

Help CenterQC11Y 6X2500 Hydraulic Shearing Machine for Machine Shell Processing
Related Products
-
Sheet Metal Shearing Machine for 16mm Thickness 4000mm Length Metal PlateUS$ 22,050 - 31,500MOQ: 1 Set -
Metal Guillotine Machine 25mm,metal Sheet Cutting Machine,shearing MachineUS$ 30,680 - 43,830MOQ: 1 Set
-
Hydraulic Guillotine Shearing Machine12x3200mmUS$ 15,510 - 22,160MOQ: 1 Set
-
QC11Y-8X3200 Shear Machine for Sheet Metal ProcessingUS$ 11,900 - 37,000MOQ: 1 Set
-
Sheet Metal Guillotine Machine 12mmUS$ 41,060 - 58,660MOQ: 1 Set
The Main Structure Character
Welded steel plates ( wall board, working table , cutting beam tempered twice and stress relieved ).The stress of the welded parts have been eliminated by vibration.
The machine enjoys high accuracy and high strength and good rigidity.
Feature and Advantages:
1.This machine belongs to second generation of hydraulic shear, with advanced integrated hydraulic system with an excellent reliability and easy for maintenance.
2. Cyliner in series fix the cutting angle when the machine working;
3. The rolling guide with 3-point support and improves the shearing quality.
4. The power storage device returns steadily and quickly.
5. Upper and bottom blades are all have 4 cutting edges, which can be turned around to use.So the using life of blade would be much extended.

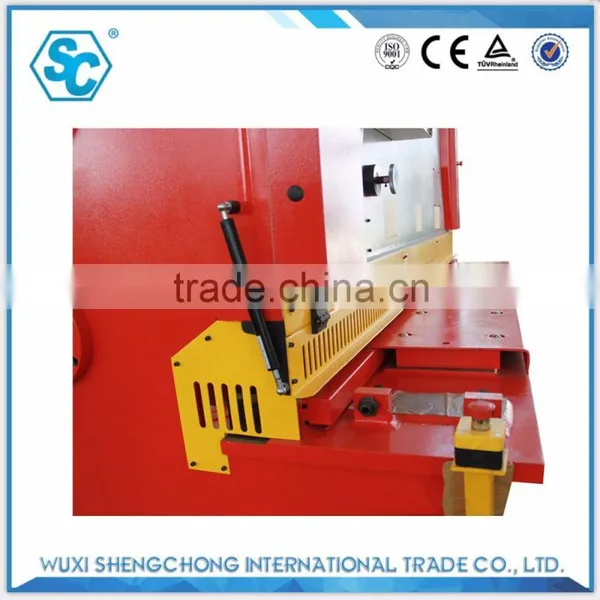

6. Rapidly, accurately and conveniently adjusting the blade clearance with the handwheel.
7. As the cutting beam has been designed in inner-inclined structure, it is easy for plates to fall down and the accuracy of products can also be guaranteed. Shearing in sections (adjust the time displayed on liquid crystal).
8. Counter for the motorized back gauge, very accurate and convenient.
9. Rolling plate-support of the machine, this can reduce the hurt of the plates and reduce the conflict force.
Specification |
QC11Y-6X2500 |
Max. Shearing Thickness |
6mm |
Max. Shearing length |
2500mm |
Depth Of Throat |
80mm |
Max. Length of Back Gauge |
750mm |
Reak angle adjustment |
0.5°~1°30’ |
Stroke Number |
14/Min |
Main Motor Power |
7.5KW |
Overall dimension |
3100×1725×1900mm |
Weight |
5.3 TON |
Hydraulic Shear Machine QC11Y series Technical parameter
| Model | Cutting | Cutting | Throat | Back Gauge | Cut Angle | Strokes | Main Motor | Dimensions | Gross |
| Thickness | Length | Depth | Range | Per Minutes | (KW) | (LxWxH) | Weight | ||
| (450Mpa) | (mm) | (mm) | (mm) | (MM) | (Ton) | ||||
| 6x2500 | 6 | 2500 | 80 | 600 | 0.5°~2° | 20 | 5.5 | 3100x1725x1960 | 4.8 |
| 6x3200 | 6 | 3200 | 80 | 600 | 0.5°~1°30′ | 12 | 7.5 | 3935x1840x1995 | 6.8 |
| 6x4000 | 6 | 4000 | 80 | 600 | 0.5°~1°30′ | 10 | 7.5 | 4650x1840x2100 | 8.8 |
| 6x5000 | 6 | 5000 | 80 | 600 | 0.5°~1°30′ | 7 | 11 | 5700x1950x2380 | 13.5 |
| 6x6000 | 6 | 6000 | 80 | 600 | 0.5°~1°30′ | 6 | 11 | 6650x1985x2380 | 16.5 |
| 8x2500 | 8 | 2500 | 80 | 600 | 0.5°~2° | 12 | 11 | 3135x1840x2075 | 6 |
| 8x3200 | 8 | 3200 | 80 | 600 | 0.5°~2° | 10 | 11 | 3850x1990x2050 | 7 |
| 8x4000 | 8 | 4000 | 80 | 600 | 0.5°~2° | 8 | 11 | 4650x1890x2075 | 9.5 |
| 8x5000 | 8 | 5000 | 80 | 600 | 0.5°~2° | 7 | 15 | 5650x2050x2400 | 16 |
| 8x6000 | 8 | 6000 | 80 | 600 | 0.5°~2° | 6 | 15 | 6805x2115x2715 | 21 |
| 10x6000 | 10 | 6000 | 80 | 750 | 0.5°~2°30′ | 5 | 15 | 6905x2215x2715 | 25 |
| 12x2500 | 12 | 2500 | 80 | 750 | 0.5°~2°30′ | 6 | 15 | 3195x2000x2210 | 8.8 |
| 12x3200 | 12 | 3200 | 80 | 750 | 0.5°~2°30′ | 5 | 15 | 3895x1950x2240 | 10 |
| 12x4000 | 12 | 4000 | 80 | 750 | 0.5°~2°30′ | 6 | 15 | 4710x1950x2485 | 14 |
| 12x6000 | 12 | 6000 | 80 | 750 | 0.5°~2°30′ | 5 | 30 | 7150x2300x3100 | 30 |
| 16x2500 | 16 | 2500 | 80 | 750 | 0.5°~2°30′ | 6 | 15 | 3215x1970x2340 | 9.5 |
| 16x3200 | 16 | 3200 | 80 | 750 | 0.5°~2°30′ | 5 | 15 | 3915x1970x2455 | 12 |
| 16x4000 | 16 | 4000 | 80 | 750 | 0.5°~2°30′ | 5 | 15 | 4715x2010x2590 | 16.5 |
| 16x5000 | 16 | 5000 | 80 | 750 | 1°~3° | 5 | 30 | 6000x2300x3000 | 25 |
| 16x6000 | 16 | 6000 | 80 | 750 | 1°~3° | 5 | 37 | 7520x2400x3100 | 38 |
| 20x2500 | 20 | 2500 | 80 | 750 | 1°~3° | 6 | 22 | 3235x2020x2465 | 12.5 |
| 20x3200 | 20 | 3200 | 80 | 750 | 1°~3° | 5 | 30 | 4150x2065x2755 | 18 |
| 20x4000 | 20 | 4000 | 80 | 750 | 1°~3° | 4 | 30 | 4955x2125x2885 | 23 |
| 20x5000 | 20 | 5000 | 80 | 750 | 1°~3° | 4 | 37 | 6000x2300x3050 | 29 |
| 20x6000 | 20 | 6000 | 80 | 750 | 1°~3° | 5 | 37 | 7150x2450x3280 | 43 |
| 25x2500 | 25 | 2500 | 80 | 750 | 1°~3°30′ | 5 | 37 | 3465x2130x2710 | 16 |
| 25x3200 | 25 | 3200 | 80 | 750 | 1°~3°30′ | 5 | 37 | 4120x2200x3000 | 23 |
| 25x4000 | 25 | 4000 | 80 | 750 | 1.5°~3°30′ | 4 | 37 | 4950x2200x3150 | 28 |
| 30x2500 | 30 | 2500 | 80 | 750 | 1.5°~3°30′ | 4 | 37 | 3465x2170x2770 | 18 |
| 35x2500 | 35 | 2500 | 80 | 750 | 1.5°~3°30′ | 3 | 37 | 4000x3000x3100 | 25 |
| 30x3200 | 30 | 3200 | 80 | 750 | 1.5°~3°30′ | 3 | 37 | 4200x2300x3200 | 25 |
| 40x2500 | 40 | 2500 | 80 | 750 | 1.5°~4° | 4 | 37x2 | 3770x3000x3400 | 32 |
| 40x3200 | 40 | 3200 | 80 | 750 | 1.5°~4° | 3 | 37x2 | 4300x3100x3600 | 38 |
| 40x4000 | 40 | 4000 | 80 | 1000 | 1.5°~4° | 3 | 45x2 | 5200x3200x3800 | 46 |
We are devote to promoting overseas and domestic machinery development over 10 years of business trade and technology development in one of the high-tech enterprise.
Our company’s main business is focus on sheet metal processing machines tools and manufacture equipments, such as shear processing line, slitting line, laser cutting machine, CNC flame cutting machine, hydraulic bending machine, hydraulic cutting machine etc. The company has a strong research and development of high technology and quality professional R&D team, strong technical force, has a number of highly qualified development designers. Powerful, professional R&D team, advanced and perfect sales service concept, making our company’s products at home and abroad, have high visibility and market share. Meanwhile, we will continue adhering to the principle of reputation first, customer first, always put the customer’s interests first, wholeheartedly to offer each of our customers the best products and the best quality service.
Our products are widely exported to Asia, Africa, Australia, the Middle East, South America, Europe and other countries, has a good reputation, we also provide a range of service for equipment installation, technology consulting and support. We based on the spirit of large enterprises to build brand objectives, adhere steady and long-term operation.
Factory building
Workshop
Factory office
Why Choose Us?
1.Our guarantee time is 13 months from B/L Date ,If any component is damaged during guarantee time, we can send the component to the customer By DHL,TNT freely .
2.Our factory can send our engineer to the customer’s factory install, commission and training freely .The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely
3.Our factory provide the service for the customer forever, if the customer need operation help,can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service
How about your machine quality?
Shenchong(SC) is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are SIECC machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount
Shenchong(SC) always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
Actually Shenchong(SC) also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
Do you accept L/C payment term?
Yes,we accept 100% L/C at sign from almost all countries.
How to operate your machine?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
