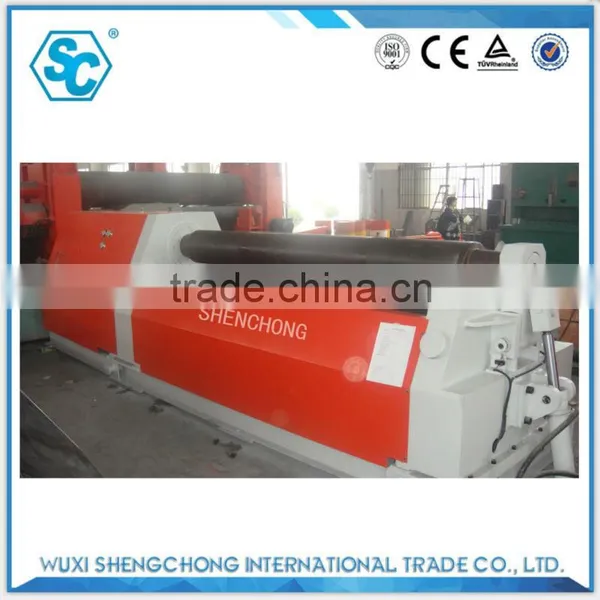

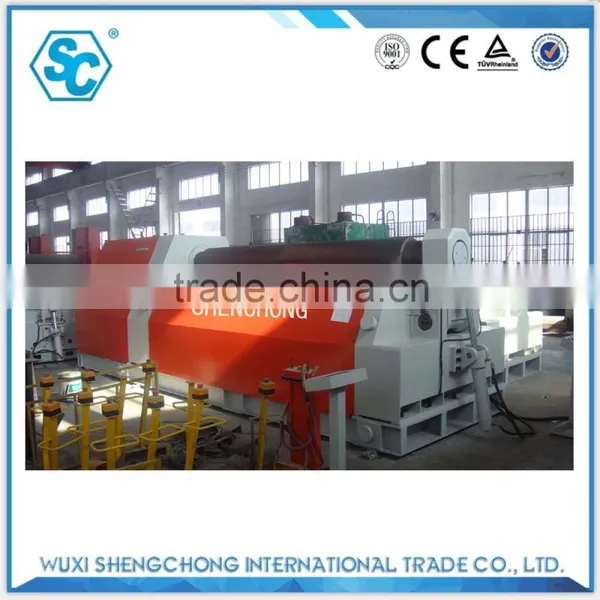

Hydraulic Plate Rolling Machine W12-25X2000
Rolling Machine Function:
This machine is the general equipment used for bending plates. Pre-bending and bending can be completed on the machine without U-turn. Plates can be bended to be tubular, arc or even cone-shaped work pieces with supplemental device. Therefore, this kind machine can be widely used in such industries as war industry, source of energy, traffic, petrol, chemical industries, boiler, shipbuilding, hydraulic power, metallic structure, etc.
Feature and advantage
The machine is optimal equipment with four rollers to bend metal plates. Its merits are as follows:
1. Pre-bending and bending can be completed without reversing end for end.
2. After plate fed, alignment can be finished by side rollers.
3. Plate can be leveled sketchily on the machine.
4. Surplus of pre-bending is short and all kinds of defective reel can be regulated.
5. It is convenient to bend cone-shaped work pieces.
Technical parameter:
Specification | W12-16X2000 |
Useful length (mm) | 2000 |
Min diameter=top roller Φ *5 without prebend | 20 |
Min diameter=top roller Φ *5 with prebend | 16 |
Min diameter=top roller Φ *(1.5-2) without prebend | 16 |
Min diameter=top roller Φ *(1.5-2) with prebend | 12 |
Top roller dia (mm) | 280 |
Bottom roller dia (mm) | 260 |
Sider roller dia (mm) | 220 |
Main motor (Kw) | 18.5 |
Rolling speed (m/min) | 3-5 |
Overall Dimension L*W*H (mm) | 4600x1950x1900 mm |
Weight (ton) | 9.6 |

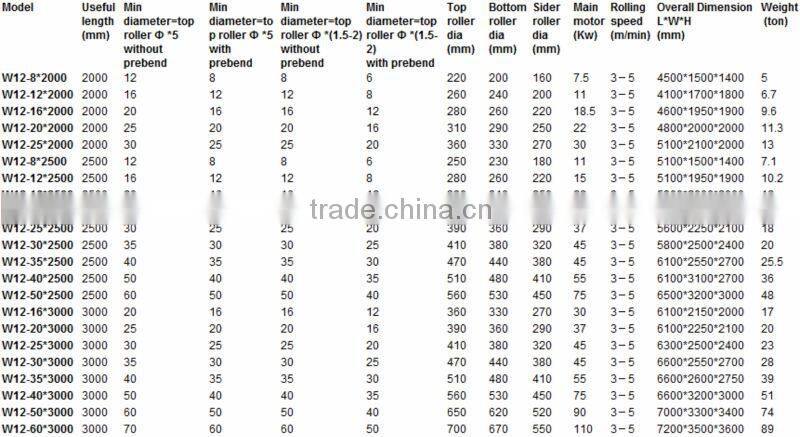

Hydraulic Rolling Machine W12 series Technical parameter
