2015 Design Jiangsu Wuxi Hydraulic Plate Rolling Machine Hydraulic Folding Machine SW11-16X2500

2015 design jiangsu wuxi Hydraulic Plate Rolling Machine Hydraulic Folding Machine SW11-16X2500

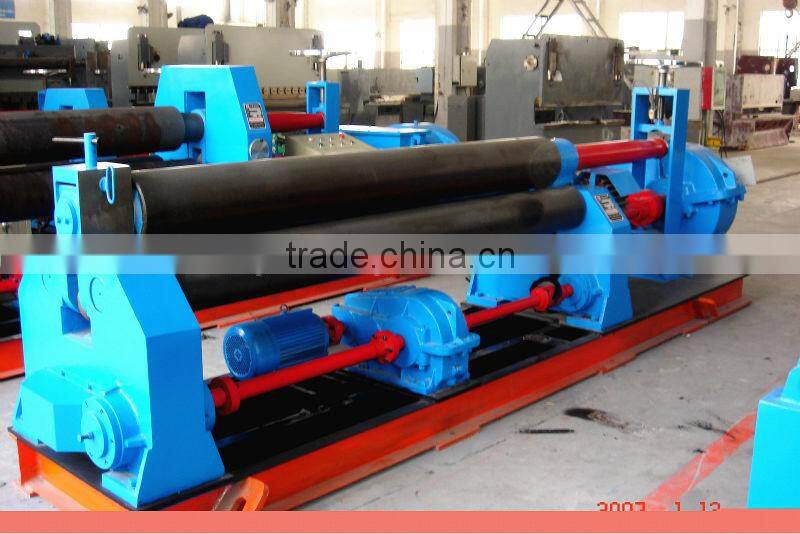

3 roller symmetry rolling machine Struct function

Its top roller do vertical lift at the center symmetry position of bottom rollers through screw transmission, two bottom rollers rotating provide torque for rolling plate, through joggle of output gear of gear reducer and bottom rollers. The machine needs other assistant equipment for pre-bend plate end.

Feature and advantage:

1) Power driven mechanical rolling machine.

2) Its upper roller do vertical lift at the center symmetry position of bottom rollers through screw transmission;

3) two bottom rollers rotating provide torque for rolling plate, through joggle of output gear of gear reducer and bottom rollers.

4) The machine needs other assistant equipment for pre-bend plate end.

Technical parameter:

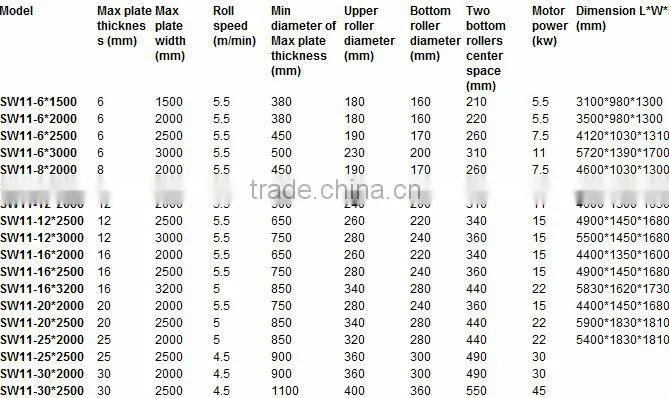

Hydraulic Rolling Machine SW11 series Technical parameter
