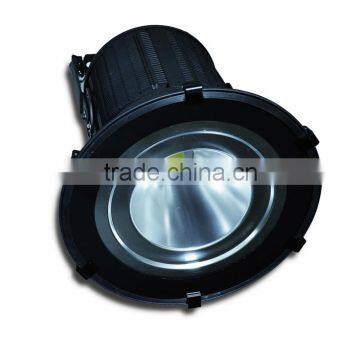

150W Flood Light _O

150W Flood Light _O thumbnail-1
150W Flood Light _O thumbnail-2
150W Flood Light _O thumbnail-3
150W Flood Light _O thumbnail-4
150W Flood Light _O photo-1
150W Flood Light _O photo-2
150W Flood Light _O photo-3
150W Flood Light _O photo-4
US$ 1 - 300 MOQ: 100 Pieces
Key Specifications
Get Latest Price
LED Light Source:
SMD2828
Input Voltage(V):
AC176~240
Lamp Power(W):
150
Contact Supplier Request Quote Chat Now
Changchun Cedar Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source SMD2828
Input Voltage(V) AC176~240
Lamp Power(W) 150
Lamp Luminous Flux(lm) 14250
Lamp Luminous Efficiency(lm/w) 95
Color Temperature(CCT) Other, 2700~6500
Working Temperature(℃) -10, 40
Working Lifetime(Hour) 35000
Lamp Body Material Other, Aluminum+Toughened Glass
IP Rating IP67
Certification CCC, CE, CQC, FCC, GOST
Place of Origin Jilin, China
Brand Name CEDAR
Model Number CD-FL355-150/200/300/500
Applications



Industry Plant, Stadium, Dock, Golf Course, Square

Features



- Average temperature board + heat pipe tech:Heat sink directly connected with heat source, achieve uniform heat conduction

- Hi-pure aluminum used in the whole lamp, weather resistance processed surface, corrosion proof, rust proof, available with inclement outdoor environments

- Vibration tested, guarantee safe application under various conditions

- Ingress Protection: IP67

- Adjustable beam angle, the whole lamp: 228°

- Build-in air-breather: Adjust temperature difference inner and outer, preventing the glass from mist condensing

- Compact design, easy installation, enhance safety in use

- Available with various angles reflector cap, meet various light distribution requirements


Model List



Flood Light

Model

Watts(W)

LED

Input Voltage(V)

Luminous Flux(lm)

Color Temperature(K)

CRI

PF(AC 220V)

Dimension(mm)

Weight (kg)

Material

Lifespan(h)

CD-FL355-150

150

 Citizen COB

AC 176-240

>14250

2700-6500

>70

>0.95

Φ360*485

6.8

Aluminum Alloy+Toughened Glass

>35000

CD-FL355-200

200

 Citizen COB

AC 176-240

>19000

2700-6500

>70

>0.95

Φ360*450

7.3

Aluminum Alloy+Toughened Glass

>35000

CD-FL355-300

300

 Citizen COB

AC 176-240

>28500

2700-6500

>70

>0.95

Φ360*485

8.0

Aluminum Alloy+Toughened Glass

>35000

CD-FL355-500

500

 Citizen COB

AC 176-240

>47500

2700-6500

>70

>0.95

Φ382*495

15.0

Aluminum Alloy+Toughened Glass

>35000

Remark: All the above tested data deviation:±10%



Dimension



Parameters



Basic Info Items Flood Light Flood Light Flood Light Flood Light
Model CD-FL355-150 CD-FL355-200 CD-FL355-300 CD-FL355-500
Aspect Material Aluminum+Toughened Glass Aluminum+Toughened Glass Aluminum+Toughened Glass Aluminum+Toughened Glass
Body Color Black Black Black Black
Dimension D360*H485 D360*H450 D360*H485 D382*H495
Electrical Watts(W) 150 200 300 500
Input Voltage(V) AC 176~240 AC 176~240 AC 176~240 AC 176~240
Frequency 50~60Hz 50~60Hz 50~60Hz 50~60Hz
Power Mode Internal Internal Internal Internal
Power Factor >0.95 >0.95 >0.95 >0.95
Power Efficiency >88% >88% >88% >88%
Optical LED Brand Citizen Citizen Citizen Citizen
LED Type 2828 2828 3838 3838
LED Qty.(pcs) 1 1 1 1
Luminous Flux(lm) 14250 19000 28500 47500
CCT(K) 2700~6500 2700~6500 2700~6500 2700~6500
Light Color Cold,Natural,Warm Cold,Natural,Warm Cold,Natural,Warm Cold,Natural,Warm
CRI(Ra) >70 >70 >70 >70
Beam Angle(°) 12.5° 12.5° 10° 10°
Dimmable Unavailable Unavailable Unavailable Unavailable
Application Mounting Size(mm) / / / /
Socket / / / /
Install Mode Floor standing, hangning on wall, with bracket Floor standing, hangning on wall, with bracket Floor standing, hangning on wall, with bracket Floor standing, hangning on wall, with bracket
Operation Temperature(℃) -30℃~50℃ -30℃~50℃ -30℃~50℃ -30℃~50℃
Operation Hummidity(RH) 10%RH-90%RH 10%RH-90%RH 10%RH-90%RH 10%RH-90%RH
Storage Temperatures(℃) -40°~70° -40°~70° -40°~70° -40°~70°
Lifetime(hrs) >35000 >35000 >35000 >35000
Protection Ingress Proctection IP67 IP67 IP67 IP67
Waterproof Availbale Availbale Availbale Availbale
