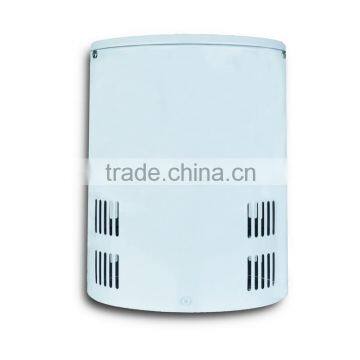

22W 8" LED Suspended Down Light _O
- Dalian
- T/T Credit Card PayPal
You May Like
Product Details
| Type | Led Commercial Downligt | Certification | CE ROHS CCC |
Product Description
Super Market, Hotel, Exhibition Hall, Meeting Room, Transportation, Warehouse
- High quality LED SMD source
- Precision reflector: Higher utilization ratio of luminous flux than normal lamps, efficiently control glare
- Easy for installation and maintenance
- Integrated basement, compact dimensions, light weight, elegant appearance
- High strength metal housing: Anti-corrosion, good heat dissipation
- Ceiling/hoisting installation, meet different installation requirements, more convenient to replace conventional lamps
8” Suspended Down Light | |||||||||||
Model | Watts(W) | LED | Input Voltage(V) | Luminous Flux(lm) | Color Temperature(K) | CRI | PF(AC 220V) | Dimension(mm) | Weight (kg) | Material | Lifespan(h) |
CD-DL190-22C/N/WG1X | 22 | SMD 5630 | AC 100~240V | >1440 | 2700-6500 | >80 | >0.9 | Φ190*235 | 1.5 | Iron | >35000 |
Remark: All the above tested data deviation:±10% | |||||||||||
| Basic Info | Items | 8" Suspended Down Light |
| Model | CD-DL190-22C/N/WG1X | |
| Aspect | Material | Iron |
| Body Color | White | |
| Dimension | D190*H235 | |
| Electrical | Watts(W) | 22 |
| Input Voltage(V) | AC 100~240 | |
| Frequency | 50~60Hz | |
| Power Mode | Internal | |
| Power Factor | >0.9 | |
| Power Efficiency | >86% | |
| Optical | LED Brand | Jingke/Hongli |
| LED Type | 5630 | |
| LED Qty.(pcs) | 40 | |
| Luminous Flux(lm) | 1440 | |
| CCT(K) | 2700~6500 | |
| Light Color | Cold,Natural,Warm | |
| CRI(Ra) | >80 | |
| Beam Angle(°) | 104° | |
| Dimmable | Unavailable | |
| Application | Mounting Size(mm) | / |
| Socket | / | |
| Install Mode | Ceiling Mounted | |
| Operation Temperature(℃) | -10℃~40℃ | |
| Operation Hummidity(RH) | 10%RH-90%RH | |
| Storage Temperatures(℃) | -40°~80° | |
| Lifetime(hrs) | >35000 | |
| Protection | Ingress Proctection | IP20 |
| Waterproof | / | |
| Energy Saving | 60% | |
| Constrasted to | 2*26W Fluorescent U Bulb |
Power Consumption Contrasts | ||
Item | Cedar 8” Suspended LED Down Light | Conventional U-Lamp |
Watts(W) | 22 | 2*26 |
Lifespan(h) | 35000 | 7000 |
Power Consumption/Year(KWH) | 192.72 | 455.52 |
Remark: The above data was calculated by lamps lit 7*24. | ||
