Specifications
1.)120W petrol station/ led canopy lights for 3 years warranty with CE led canopy light2. )Original CREE LEDs
120W petrol station/ led canopy lights for 3 years warranty with CE led canopy light
New photoes share
Specification
| Item | Parameter | ||||||||||
| Driver Brand | Taiwan Mean Well | ||||||||||
| Input Voltage | AC90-295V | ||||||||||
| Frequency | 50-60HZ | ||||||||||
| Lamp | CREE LEDs | ||||||||||
| Beam Angle | 100 degree | ||||||||||
| Color Temperature | 5000K | ||||||||||
| CRI | 80 | ||||||||||
| PF | ≥0.95 | ||||||||||
| Motion Detector | Optional | ||||||||||
| Operating Temperature | -20°C~40°C | ||||||||||
| Storage Temperature | -40°C~85°C | ||||||||||
| Waterproof Level | IP65 | ||||||||||
| Lifespan | 50,000hrs | ||||||||||

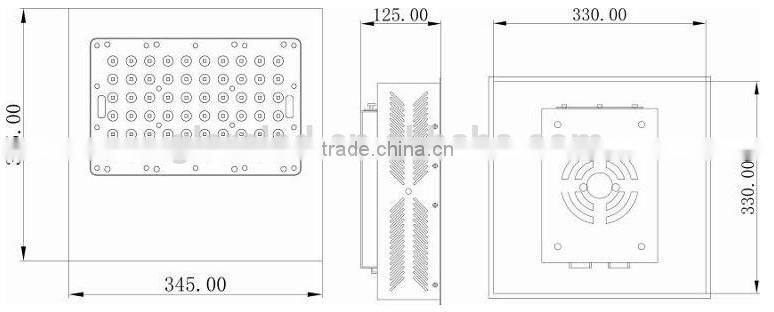

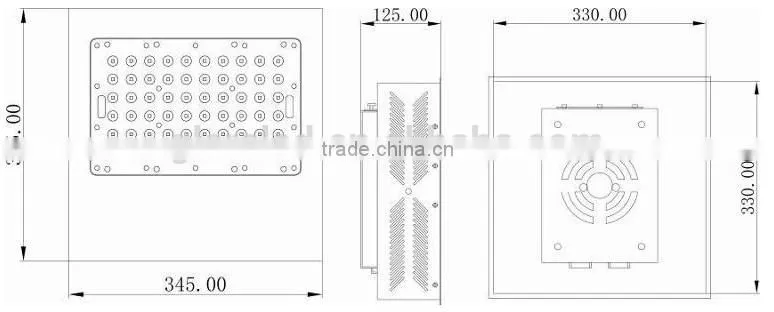

Product size
Application
Gas Station,Carwash,Warehouse,Plant,High bay and low bay,Highway toll station,Tunnel,Pavilion Venue,Public transportation station… etc.
Advantage
1. CE & RoHSCompliance
2. High-tech intelligent lighting control
3. IP65 ingress rating
4. Special optics design for the petrol station lighting
5. Safe and reliable
6. High-tech intelligent lighting control
7. Original CREE LEDs, energy saving and environmentally friendly,High Brightness, low decay LED to ensure good performance,
safety working current to ensure long life span of LED
8. Easy to replace the traditional lamp
Energy saving
120W LED high bay light can replace 400W HPS light; it can save 70% electricity.
Intelligent dimming
When a customer arrives at your site (car, motor, pedestrian, etc.) LED Canopy Light detects movement and switches smoothly
from dimmed to full power. Your customer will get all the light needed at that moment, providing a good visual environment.
After your customer has left the forecourt the LED Canopy Light automatically switches smoothly back to dimmed power.
You are saving energy and you are still making sure the forecourt is adequately lit to provide safety and guidance.
Maintenance instructions
1. Make sure cut power before maintenance
2. Regularly clean the lens to make good transmission of light.
3. Regularly clean housing and heat sink to make sure good heat dissipation.
4. Do not use water or highly corrosive solution for cleaning, had better use dry cloth
Installation instruction
1. Drill 4pcs ¢8 hole with 45mm depth on ceiling, put the expansion screws into the drilled hole, fasten the plates with nuts to the wall.
2. Storage at normal temperature.
3. Keep good sealing in wire connection to avoid electric leakage.
4. Adopt waterproof measures during installation.
5. The lamp can’t be used in violation of any fire regulations.
6. Please look for professional electrician to install. Connection for three-core cable: red is for fire wire, blue is for null line, yellow is for ground wire.
7. Input voltage: AC90-295V 50-60HZ, do not exceed voltage and frequency range.
8 . Please take the whole light gently during delivery and storage.

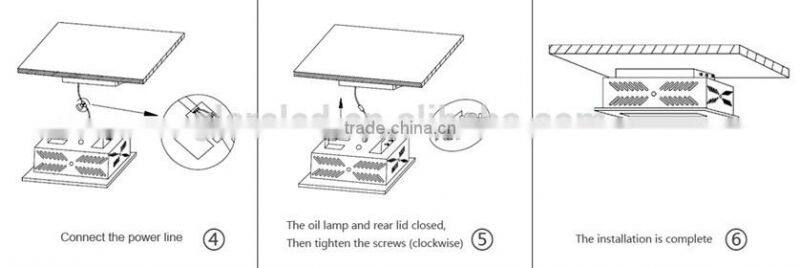

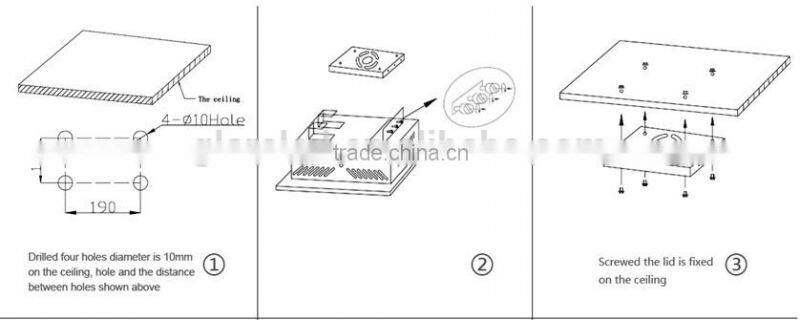

Instruction Picture

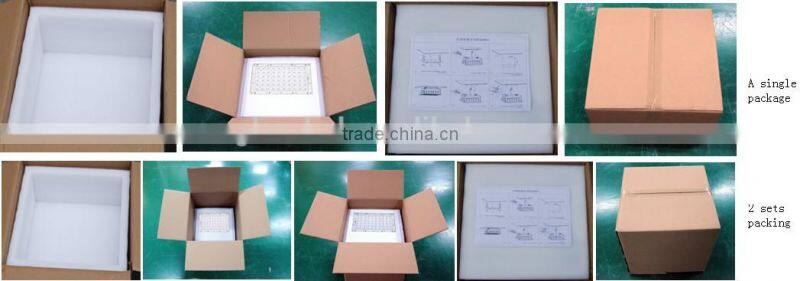

Packing Information
Packing specification |
Carton size |
Q’TY/CTN |
G.W. |
||||||||
Housing |
L385*W385*H185mm |
1 |
8 |
||||||||
Housing |
L400*W400*H400mm |
2 |
16.1 |
||||||||
Warranty &After-sales service
1. Warranty: 3-Year for the whole light
2. Warranty is based on correct storage, installation, using and maintenance
3. Damage for misuse or false operation does not in guarantee
4. During guarantee period, our company will chose repair or change new parts for customers
5. Exceed guarantee period, our company will charge cost for material and labor cost

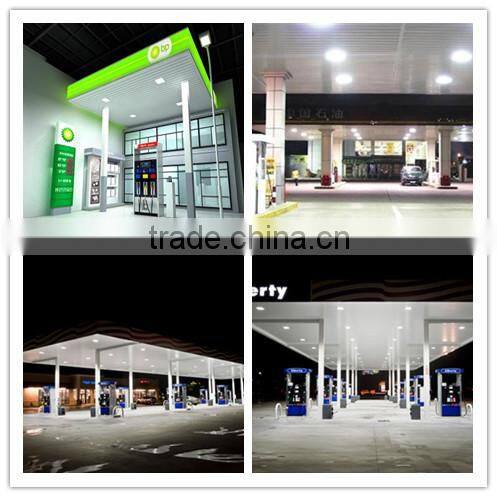

Project Cases
Certification
Payment ways ,50% T/T or 30% T/T deposit is available, we will arrange the delivery item when you 50%T/T or 70% done.
