4W LED T5 Tube _O

4W LED T5 Tube _O thumbnail-1
4W LED T5 Tube _O thumbnail-2
4W LED T5 Tube _O thumbnail-3
4W LED T5 Tube _O thumbnail-4
4W LED T5 Tube _O thumbnail-5
4W LED T5 Tube _O thumbnail-6

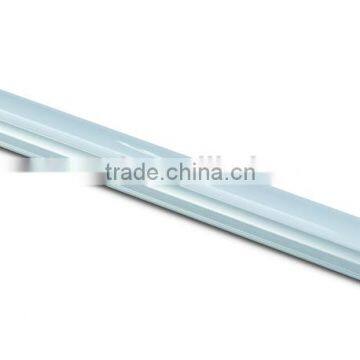

4W LED T5 Tube _O photo-1

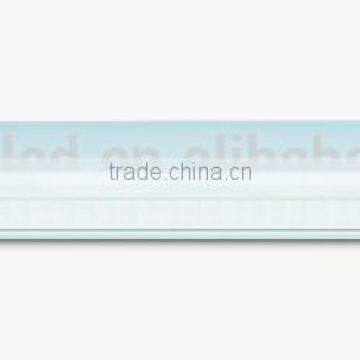

4W LED T5 Tube _O photo-2

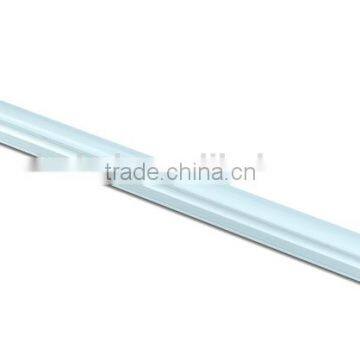

4W LED T5 Tube _O photo-3
4W LED T5 Tube _O photo-4
4W LED T5 Tube _O photo-5
4W LED T5 Tube _O photo-6
US$ 1 - 200 MOQ: 2000 Pieces
Key Specifications
Get Latest Price
Type:
LED Decorative Light
Certification:
CE RoHS
Contact Supplier Request Quote Chat Now
Changchun Cedar Electronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type LED Decorative Light
Certification CE RoHS
Applications

  Factory, Super Market, Restaurant, School, Hospital, Office

Features

 - Lamp bracket: Integrated high strength heat dissipation structure

- Longest cascading up to 25 meters

- Power Supply: Independent isolated housing, double insulation, higher reliability, PF>0.9

- Full size design for the length of whole lamp

- Fireproof plug with transparent material, cascading with no shadow


Model List



T5 Tube

Model

Watts(W)

LED

Input Voltage(V)

Luminous Flux(lm)

Color Temperature(K)

CRI

PF(AC 220V)

Dimension(mm)

Weight (kg)

Material

Lifespan(h)

CD-T503I-4C/N/WG1

4

SMD 3014

AC 176-240

>320

2700-6500

>80

>0.95

22.2*33.1*300

0.08

Aluminum+PC

>35000

CD-T506I-8C/N/WG1

8

SMD 3014

AC 176-240

>640

2700-6500

>80

>0.95

22.2*33.1*600

0.13

Aluminum+PC

>35000

CD-T509I-12C/N/WG1

12

SMD 3014

AC 176-240

>960

2700-6500

>80

>0.95

22.2*33.1*900

0.19

Aluminum+PC

>35000

CD-T512I-15C/N/WG1

15

SMD 3014

AC 176-240

>1200

2700-6500

>80

>0.95

22.2*33.1*1200

0.23

Aluminum+PC

>35000

Remark: All the above tested data deviation:±10%



Dimension



L.I.D. Diagram



A.A.I. Figure



Parameters



Basic Info Items T5 Tube T5 Tube T5 Tube T5 Tube
Model CD-T503I-4C/N/WG1 CD-T506I-8C/N/WG1 CD-T509I-12C/N/WG1 CD-T512I-15C/N/WG1
Aspect Material Aluminum+PC Aluminum+PC Aluminum+PC Aluminum+PC
Body Color White White White White
Dimension W22.2*H33.1*L300 W22.2*H33.1*L600 W22.2*H33.1*L900 W22.2*H33.1*L1200
Electrical Watts(W) 4 8 12 15
Input Voltage(V) AC 176~240 AC 176~240 AC 176~240 AC 176~240
Frequency 50~60Hz 50~60Hz 50~60Hz 50~60Hz
Power Mode Internal Internal Internal Internal
Power Factor >0.95 >0.95 >0.95 >0.95
Power Efficiency >90% >90% >90% >90%
Optical LED Brand Jingke/Hongli Jingke/Hongli Jingke/Hongli Jingke/Hongli
LED Type 3014 3014 3014 3014
LED Qty.(pcs) 45 75 128 150
Luminous Flux(lm) 320 640 960 1200
CCT(K) 2700~6500 2700~6500 2700~6500 2700~6500
Light Color Cold,Natural,Warm Cold,Natural,Warm Cold,Natural,Warm Cold,Natural,Warm
CRI(Ra) >80 >80 >80 >80
Beam Angle(°) 120° 120° 120° 120°
Dimmable Unavailable Unavailable Unavailable Unavailable
Application Mounting Size(mm) / / / /
Socket / / / /
Install Mode Suspended,Ceiling Mounted Suspended,Ceiling Mounted Suspended,Ceiling Mounted Suspended,Ceiling Mounted
Operation Temperature(℃) -10℃~40℃ -10℃~40℃ -10℃~40℃ -10℃~40℃
Operation Hummidity(RH) 10%RH-90%RH 10%RH-90%RH 10%RH-90%RH 10%RH-90%RH
Storage Temperatures(℃) -40°~80° -40°~80° -40°~80° -40°~80°
Lifetime(hrs) >35000 >35000 >35000 >35000
Protection Ingress Proctection IP20 IP20 IP20 IP20
Waterproof / / / /



Power Contrasts



Power Consumption Contrasts

Item

Cedar Integrated LED T5 Tube

Fluorescent  T5 Tube

Power(W)

4

8

12

15

8

14

21

28

Lifespan(h)

35000

35000

35000

35000

8500

8500

8500

8500

Annual consumption(degree)

35.04

70.08

105.12

131.40

70.08

122.64

183.96

245.28

Remark: The above data was calculated by lamps lit 7*24.
