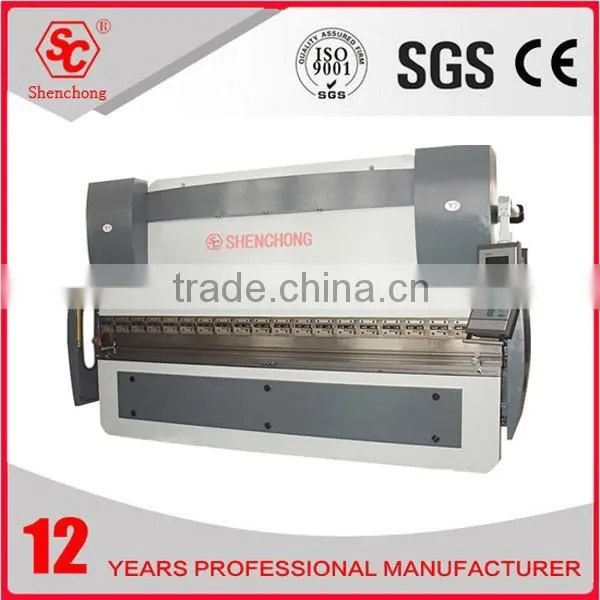

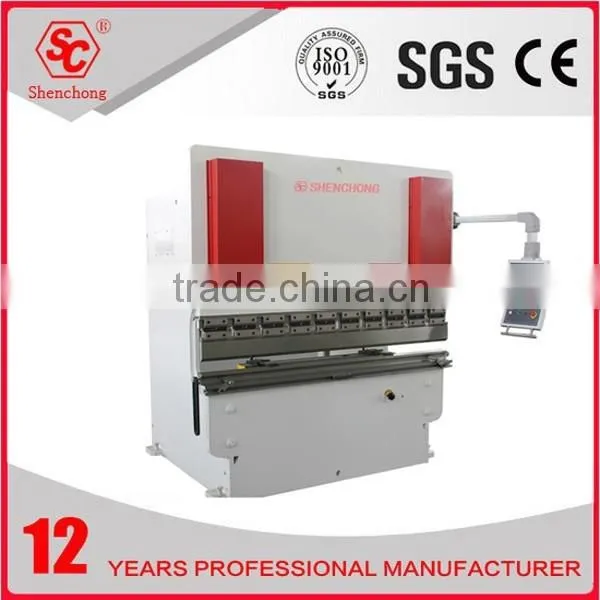

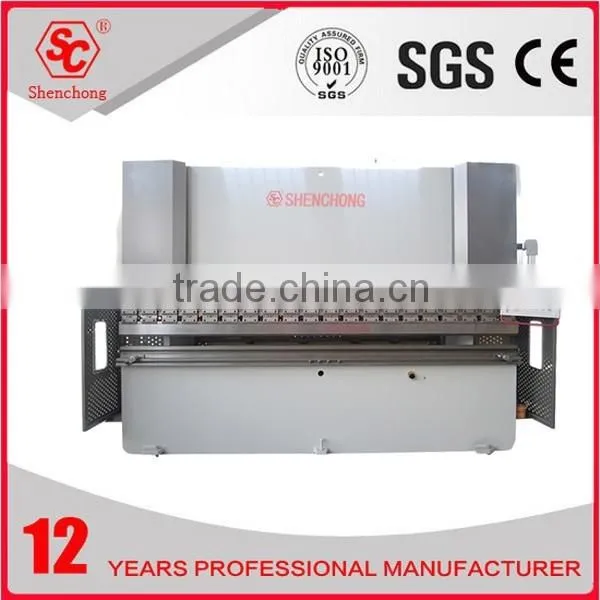

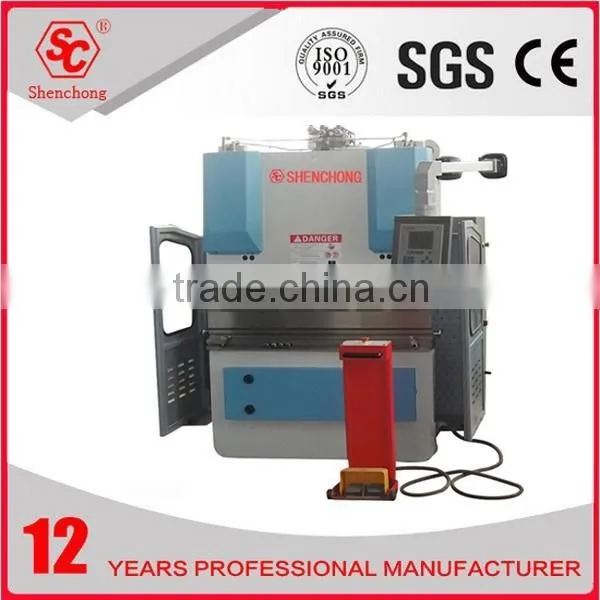

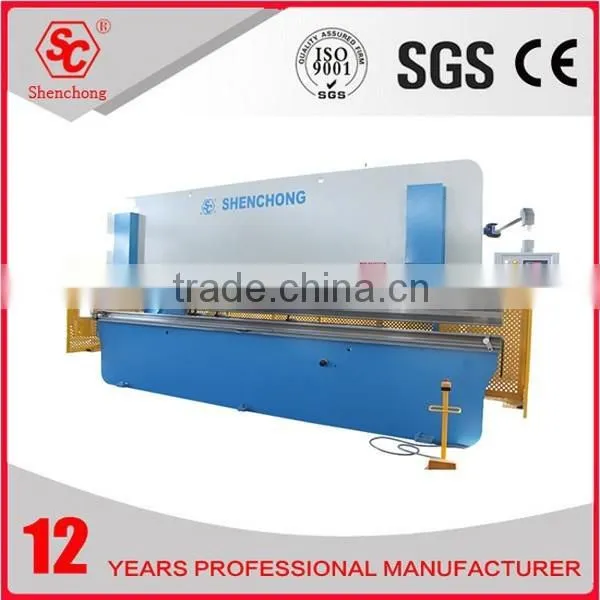

hydraulic press brake
Main Structure Character
Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.
Feature :
1. Integrated hydraulic control system is more reliable and easy for maintenance.
2. The slide synchro system adopts steel torsion bar synchro system with very simple structure but very high accuracy. 2 ends of slide has 2 sychnro fork which make the slides movement is always parallel to the working table. And this will make the movement effect balanced during operation. The system uses upper die compensation to improve the brake precision.
3. The machine is a kind of steel torsion bar sychnro brake, which is the third generation of brake. Electronic control of back gauge and ram stroke, data displayed and precision control by man. Hydraulic power cell construction is convenient to install, which limit the oil route and connector quantity to minimize integrated hydraulic valve block. Block route and wide range of speed control, work steadily.
4. Main components: Schneider electrical components NOK sealing components
5. Optional accessories: Esturn E10 counter,pendant-control-box German Herbiger valves or Italy Aron valves Light curtain Ball screw and linear guide of backgauge Tooling clamping device
technical parameter
| Model | Nominal | Length | Distance | Throat | Stroke | Open | Main Motor |
| Pressure | Of Table | Between | Depth | (mm) | Height | (kw) | |
| (KN) | (mm) | Housings | (mm) | (mm) | |||
| (mm) | |||||||
| 40/2000 | 400 | 2000 | 1600 | 200 | 110 | 335 | 4 |
| 40/2500 | 400 | 2500 | 2000 | 200 | 110 | 335 | 4 |
| 63/2000 | 630 | 2000 | 1600 | 250 | 110 | 350 | 5.5 |
| 63/2500 | 630 | 2500 | 2000 | 250 | 110 | 350 | 5.5 |
| 63/3200 | 630 | 3200 | 2600 | 250 | 110 | 350 | 5.5 |
| 100/2500 | 1000 | 2500 | 2000 | 350 | 150 | 400 | 7.5 |
| 100/3200 | 1000 | 3200 | 2600 | 350 | 150 | 400 | 7.5 |
| 100/4000 | 1000 | 4000 | 3200 | 350 | 150 | 400 | 7.5 |
| 100/5000 | 1000 | 5000 | 4000 | 350 | 150 | 400 | 7.5 |
| 125/2500 | 1250 | 2500 | 2000 | 350 | 150 | 410 | 7.5 |
| 125/3200 | 1250 | 3200 | 2600 | 350 | 150 | 410 | 7.5 |
| 125/4000 | 1250 | 4000 | 3200 | 350 | 150 | 410 | 7.5 |
| 125/5000 | 1250 | 5000 | 4000 | 350 | 150 | 410 | 7.5 |
| 125/6000 | 1250 | 6000 | 4500 | 350 | 150 | 410 | 7.5 |
| 160/2500 | 1600 | 2500 | 2000 | 350 | 150 | 425 | 11 |
| 160/3200 | 1600 | 3200 | 2550 | 350 | 150 | 425 | 11 |
| 160/4000 | 1600 | 4000 | 3200 | 350 | 190 | 450 | 11 |
| 160/5000 | 1600 | 5000 | 4000 | 350 | 190 | 450 | 11 |
| 160/6000 | 1600 | 6000 | 4500 | 350 | 190 | 450 | 11 |
| 200/3200 | 2000 | 3200 | 2600 | 350 | 190 | 460 | 11 |
| 200/4000 | 2000 | 4000 | 3200 | 350 | 190 | 460 | 11 |
| 200/5000 | 2000 | 5000 | 3800 | 350 | 190 | 460 | 11 |
| 200/6000 | 2000 | 6000 | 4500 | 350 | 190 | 460 | 11 |
| 250/3200 | 2500 | 3200 | 2600 | 400 | 240 | 525 | 15 |
| 250/4000 | 2500 | 4000 | 3200 | 400 | 240 | 525 | 15 |
| 250/5000 | 2500 | 5000 | 3800 | 400 | 240 | 525 | 15 |
| 250/6000 | 2500 | 6000 | 4500 | 400 | 240 | 525 | 15 |
We are devote to promoting overseas and domestic machinery development over 10 years of business trade and technology development in one of the high-tech enterprise.
Our company’s main business is focus on sheet metal processing machines tools and manufacture equipments, such as shear processing line, slitting line, laser cutting machine, CNC flame cutting machine, hydraulic bending machine, hydraulic cutting machine etc. The company has a strong research and development of high technology and quality professional R&D team, strong technical force, has a number of highly qualified development designers. Powerful, professional R&D team, advanced and perfect sales service concept, making our company’s products at home and abroad, have high visibility and market share. Meanwhile, we will continue adhering to the principle of reputation first, customer first, always put the customer’s interests first, wholeheartedly to offer each of our customers the best products and the best quality service.
Our products are widely exported to Asia, Africa, Australia, the Middle East, South America, Europe and other countries, has a good reputation, we also provide a range of service for equipment installation, technology consulting and support. We based on the spirit of large enterprises to build brand objectives, adhere steady and long-term operation.

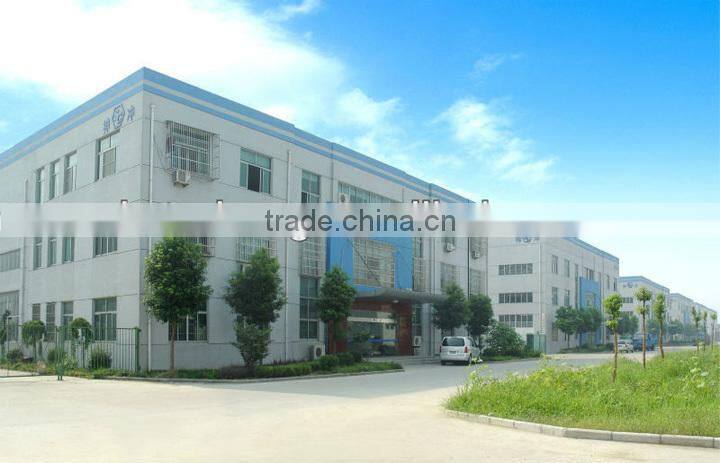

Factory building
Workshop
Factory office
Why Choose Us?
1.Our guarantee time is 13 months from B/L Date ,If any component is damaged during guarantee time, we can send the component to the customer By DHL,TNT freely .
2.Our factory can send our engineer to the customer’s factory install, commission and training freely .The customer provide the double trip tickets, food and accommodation for our engineer. The customer also can send the engineer to our factory to learn the operation and maintains freely
3.Our factory provide the service for the customer forever, if the customer need operation help,can contact us by MSN, Skype, Email and Telephone at any time, we provide 24 hours on-line service
How about your machine quality?
Shenchong(SC) is a mature brand in CHINA,through our many years research in technology,our design including structure and detailed sercurity and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry ,there are SIECC machines.And where there are our machines,there are good reputation and terminal user satisfaction.
Whether the machine price can be more discount
Shenchong(SC) always provide high quality machine,as we know ,oversea market is more important and difficult than domestic market because of communication time costing after sales,So always,our machine has enough qaulity standard to make sure the machine can work more than the real warranty period.In this way ,we will save a lot and think in advance for the clients.
Actually Shenchong(SC) also think about our price level,we are sure to provide quality=price and pice=quality ,the matched price and acceptable for the clients and durable for our machines.We welcome your negotiate with us and get a good satisfaction.
Do you accept L/C payment term?
Yes,we accept 100% L/C at sign from almost all countries.
How to operate your machine?
Don’t worry,we have our company own CD/Manual to show you along with the machine.So you can learn this from the existing documents to deepen your knowledge and understanding. Anyhow there are another way is through internet video face to face for machine teaching, because of the high development in internet,the world has become smaller and you can easy catch us if any assistance needed .
