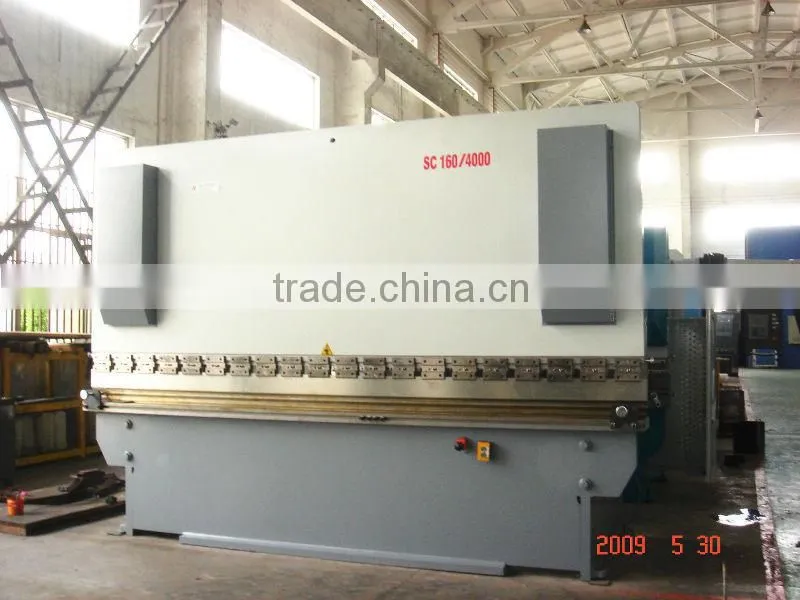

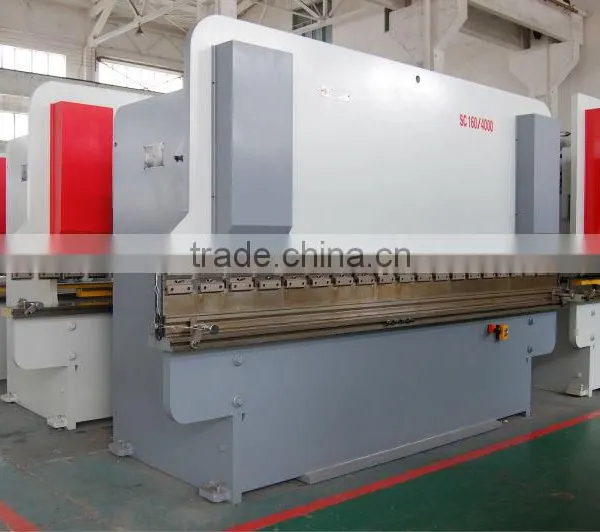

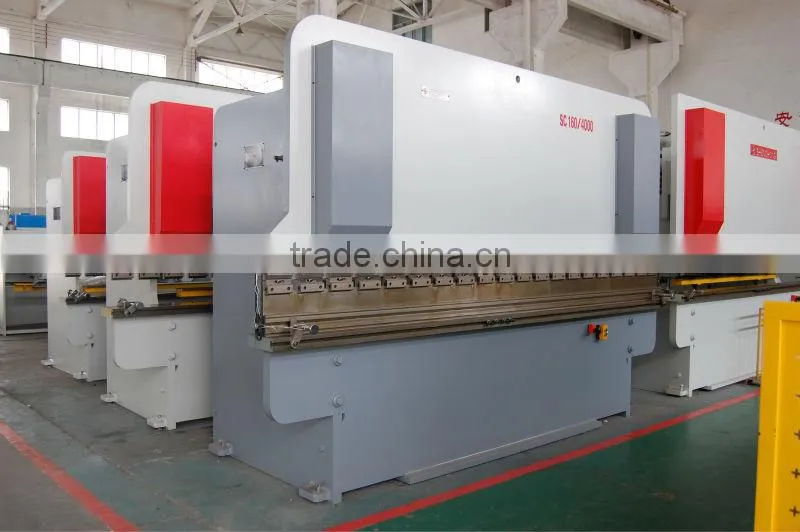

Hydraulic Press Brake WC67Y-160/4000

Specifications

hydraulic press brake,bending machine
easy for maintains
Torsion bar synchro;
electroic driven back gauge;
CE,ISO, SGS

The Main Structure Character

Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.

Feature and Advantages:

1. Integrated hydraulic control system is more reliable and easy for maintenance.
2. The slide synchro system adopts steel torsion bar synchro system with very simple structure but very high accuracy. 2 ends of slide has 2 sychnro fork which make the slides movement is always parallel to the working table. And this will make the movement effect balanced during operation. The system uses upper die compensation to improve the brake precision.
3. The machine is a kind of steel torsion bar sychnro brake, which is the third generation of brake. Electronic control of back gauge and ram stroke, data displayed and precision control by man. Hydraulic power cell construction is convenient to install, which limit the oil route and connector quantity to minimize integrated hydraulic valve block. Block route and wide range of speed control, work steadily.

4. Main components: Schneider electrical components NOK sealing components
5. Optional accessories: Esturn E10 counter,pendant-control-box German Herbiger valves or Italy Aron valves Light curtain Ball screw and linear guide of backgauge Tooling clamping device



Technical parameter

Specification	WC67Y-160/4000
Norminal   pressure	1600KN
Length of   table	4000mm
Distance   between housing	3200mm
Throat depth	350mm
Stroke	190mm
Open Height	450m
Main Motor   Power	11KW
Overall   dimension	4550×1715×2730mm
Weight	12TON





Hydraulic Torsion Bar Synchro Press Brake WC67Y series Technical parameter
