Help CenterWINSUN Manufacturers Selling 4 12V Relay Module Photoelectric Isolation Optocoupler PLC Control
Related Products
-
WINSUN Human Body Infrared Induction Module HC-SR501 Pyroelectric Infrared Sensor Wiring Length 1 Meters and Outer boUS$ 0.01 - 1,000MOQ: 1 Piece -
WINSUN 1 5V With Photoelectric Isolation Relay Module Can be Set to Low Level Trigger Relay 5V RelayUS$ 0.01 - 1,000MOQ: 1 Piece
-
WINSUN Type 86 Pyroelectric Induction Switch Controllable LED Energy-saving Lamp 220V Corridor Infrared Human Induction SwitchUS$ 0.01 - 1,000MOQ: 1 Piece
-
WINSUN 7 12V Self-locking Relay Module Single Bistable Switch Trigger Signal 0V Low LevelUS$ 0.01 - 1,000MOQ: 1 Piece
-
WINSUN 4 Way Remote Control Switch Four Way Controller 12V Remote Control Switch Self Locking Control ModeUS$ 0.01 - 1,000MOQ: 1 Piece
4 road 12V photoelectric isolationRelay moduleProducts alreadyA large number of applications to industrial applications, stable performance.
PCB size 7Simm * 60MM * 21mm.
4 road 12V photoelectric isolationRelay moduleTwo control level modules can be set arbitrarily high and low.
(1). High quality PCB, FR-4 material, double marked, spray tin, quality common PCB can ratio, a thicker line, safe and stable performance.
(2) welding technology is not the same. In strict accordance with the IPC-610 standard for welding welding. And there will be no dross, tin hole, refusing phenomenon such as welding, surface cleaning clean, only for higher quality.
(3) the use of components more sophisticated. Each component is carefully eamined and qualified.
(4). The finished product inspection is more strict. After welding products, all through 100% function test and stability test, let you use more at ease!
Equisite workmanship,Stable performance.

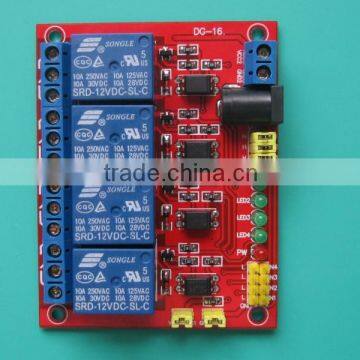

4 road 12VRelay module front view
4 road 12VRelay module back diagram
Main features:
1Each road relay has the working status of the LED lamp indicating relay.
2Optocopler isolation makes the system more secure, more stable anti interference ability;useDouble couplerCan makeTwo control modes with high and low level,Compatible with various NPN and PNP outputs for PLC etensions.
3With the diode continued current protection circuit, the service life is longer.
4Double power users can be used according to the needs, through the short circuit cap to switch, select the power supply is more fleible and convenient to use.
5The relay power supply has the connection terminal and the DC power socket (5.5mm*2.1mm) two kinds of interface forms, the use is more fleible, is more convenient.
6The relay output contact with double - line, can withstand large current more secure.
7,With fourWith the positioning hole 3.
8, strict inspection, to ensure quality.
Use:
1, single chip microcomputer control;
2, PLC control epansion;
3, the field of intelligent industry;
4, home intelligent control.

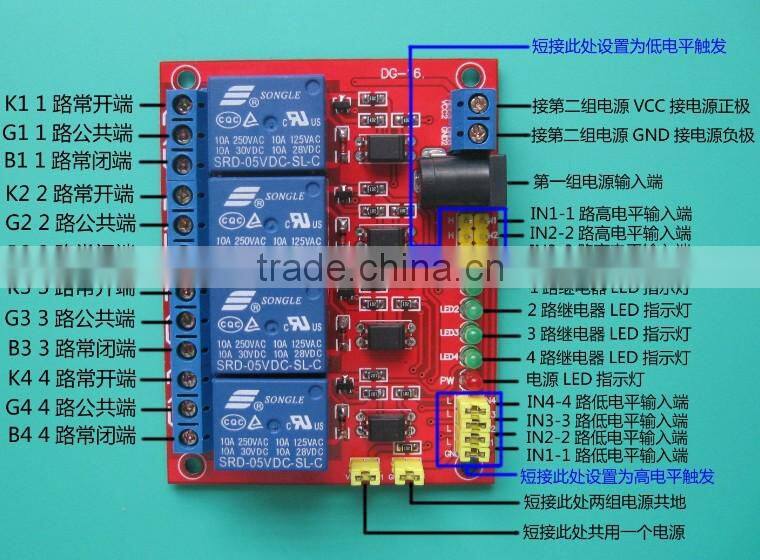

4 way photoelectric isolation relay module wiring diagram:
Relay output terminal pin descriptions are as follows (take the 1 road as an eample):
Relay module control AC equipment wiring diagram (take 1 road as an eample):
Relay module control DC equipment wiring diagram (take 1 road as an eample):
