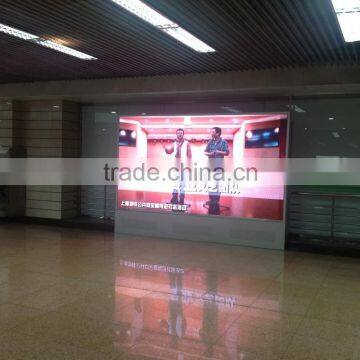

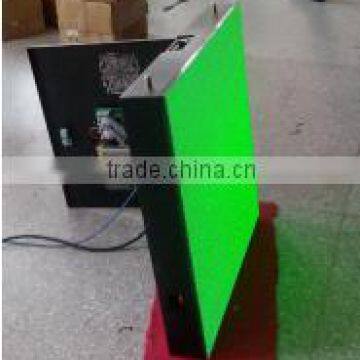

Help CenterIndoor P6 SMD LED Display_O
US$ 1 - 20,000
MOQ: 30 Square Meters
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
CEDAR
Model Number:
CD-NP6-SMD
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian/Shenzhen/Ningbo/Qingdao/Lianyungang
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Indoor P5 SMD LED Display _OUS$ 1 - 20,000MOQ: 30 Square Meters -
Indoor P4 SMD LED Display _OUS$ 1 - 20,000MOQ: 30 Square Meters
-
Indoor P3 SMD LED Display _OUS$ 1 - 20,000MOQ: 20 Square Meters
-
Outdoor P10 SMD LED Display _OUS$ 1 - 20,000MOQ: 30 Square Meters
-
Outdoor P8 SMD LED Display _OUS$ 1 - 20,000MOQ: 30 Square Meters
Place of Origin
China
Brand Name
CEDAR
Model Number
CD-NP6-SMD
Usage
Indoor
Tube Chip Color
Full Color
Display Function
Video
Pixels
Other, 6mm
Screen Dimension
Customized
Models & Parameters
| Parameters | NP6-SMD | ||
| Pixel | Pixel Setting | 3528 LED 1R1G1B | 3528 LED 1R1G1B |
| Pixel Pitch(mm) | 6 | 6 | |
| Pixel Density(Pixel/m2) | 27777 | 27777 | |
| Module | Module Resolution (W/Pixel × H/Pixel) | 64 × 32 | 32 × 32 |
| Module Size (W/mm × H/mm) | 192 × 192 | 192 × 192 | |
| Cabinet | Receiving Card Covering (W/Pixel × H/Pixel) | 128 × 128 | 128 × 128 |
| Cabinet Flatness(mm) | ≤ 1 | ≤ 1 | |
| Maintenance | front | front | |
| Optical | Dot by Dot Calibration | support | support |
| Brightness (cd/m²) | ≥ 800 | ≥ 2000 | |
| Brightness Adjustment | 256 grades auto/manually adjustment | 256 grades auto/manually adjustment | |
| Color Temperature (K) | 3000 — 10000 adjustable | 3000 — 10000 adjustable | |
| Horizontal FOV ( °) | 120 | 120 | |
| Vertical FOV ( °) | 120 | 120 | |
| Brightness Uniformity | ≥ 95% | ≥ 95% | |
| Electrical | Peak Power Consumption (W/m²) | 180 | 600 |
| Average Power Consumption (W/m²) | 60 | 200 | |
| Input Voltage (V) | AC110~240V(50-60Hz) | AC110~240V(50-60Hz) | |
| System Process | Drive Mode | constant current (1/16 scan) | constant current (1/8 scan) |
| Frame Rate (Hz) | 60 | 60 | |
| Refresh Frequency (Hz) | ≥ 2400Hz | ≥ 2400Hz | |
| Grey Scale(Bit) | 14 | 14 | |
| Color Capacity(Trillion) | 4.4 | 4.4 | |
| Applications | Lifespan (h) | 80000 | 80000 |
| Operation Temperature (℃) | -20 ~+50 | -20 ~+50 | |
| Storage Temperature (℃) | -35 ~+85 | -35 ~+85 | |
| Operation Humidity(RH) | 10% ~ 90%, with no condensation | 10% ~ 90%, with no condensation | |
| Storage Humimdity (RH) | 10% ~ 90%, with no condensation | 10% ~ 90%, with no condensation | |
| Others | Support on-site dot-by-dot calibration | ||
| Support on-line signal dual direction backup | |||
| Available for being controlled by Cedar RTM Software | |||
| Available for different signal format, such as AV,S-Video,VGA,DVI,HDMI,SDI,DP | |||
| Parameters can be customized | |||
