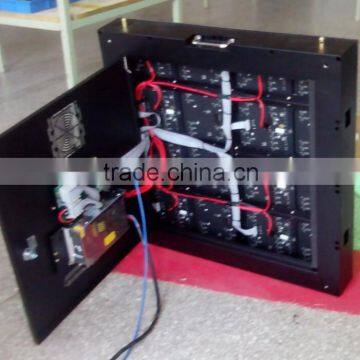

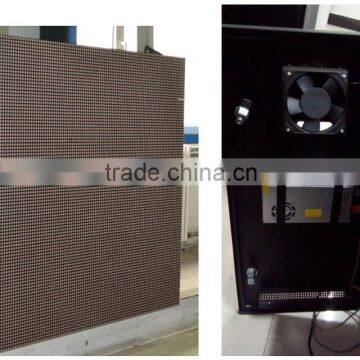

P10 Outdoor Dip hd Led Display Screen

Name: P10 Outdoor Dip hd Led Display Screen
Brand: Cedar
SKU: 103431475
Availability: InStock

Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jilin, China

Brand Name:

Cedar

Model Number:

WP10-DIP

Changchun Cedar Electronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jilin, China

Brand Name Cedar

Model Number WP10-DIP

Usage Outdoor

Tube Chip Color Full Color

Display Function Video

Pixels 10mm

Screen Dimension Customized

Parameters		WP10-DM

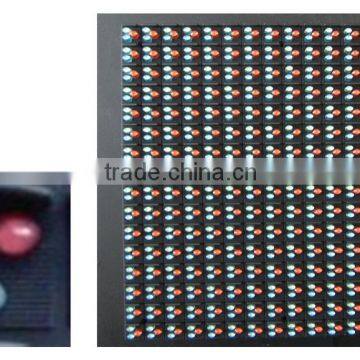

Pixel	Pixel Setting	DIP 346 1R1G1B
	Pixel Pitch(mm)	10
	Pixel Density(Pixel/m2)	10000
Module	Module Resolution (W/Pixel × H/Pixel)	16 × 16
Module	Module Size (W/mm × H/mm)	160 × 160
Cabinet	Cabinet Resolution (W/Pixel × H/Pixel)	96 × 96
	Cabinet Size(W/mm × H/mm)	960 × 960
	Material	iron
	Cabinet Weight (kg/Pcs)	44
	Cabinet Area (m²)	0.9216
	Screen Weight (kg/m²)	47
	Cabinet Flatness (mm)	≤1
	Maintenance	rear
Optical Paramaeters	Dot by Dot Calibration	support
	Brightness (cd/m²)	≥6000 (calibrated@9300K)
	Brightness Adjustment	256 grades auto/manually adjustment
	Color Temperature (K)	3000 — 10000 adjustable
	Horizontal FOV ( °)	120
	Vertical FOV ( °)	60
	Brightness Uniformity	≥ 95%
Electrical Parameters	Peak Power Consumption (W/m²)	580
	Average Power Consumption (W/m²)	190
	Input Voltage (V)	AC110~240V(50-60Hz)
System Process	Drive Mode	constant current (1/4 scan)
	Frame Rate (Hz)	60
	Refresh Frequency (Hz)	≥ 2400Hz
	Grey Scale(Bit)	14
	Color Capacity(Trillion)	4.4
Applications	Lifespan (h)	80000
	Ingress Protection	IP65
	Operation Temperature (℃)	-35 ~ +50
	Storage Temperature (℃)	-40 ~ +85
	Operation Humidity(RH)	10% ~ 90%, with no condensation
	Storage Humimdity (RH)	10% ~ 90%, with no condensation
Others	Support on-site dot-by-dot calibration
	Support on-line signal dual direction backup
	Available for being controlled by Cedar RTM Software
	Available for different signal format, such as AV,S-Video,VGA,DVI,HDMI,SDI,DP
	Parameters can be customized
