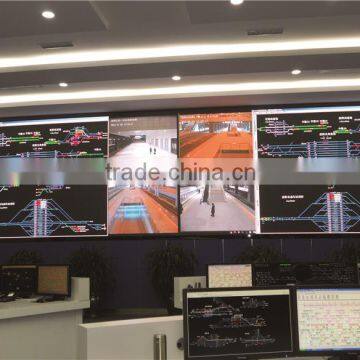

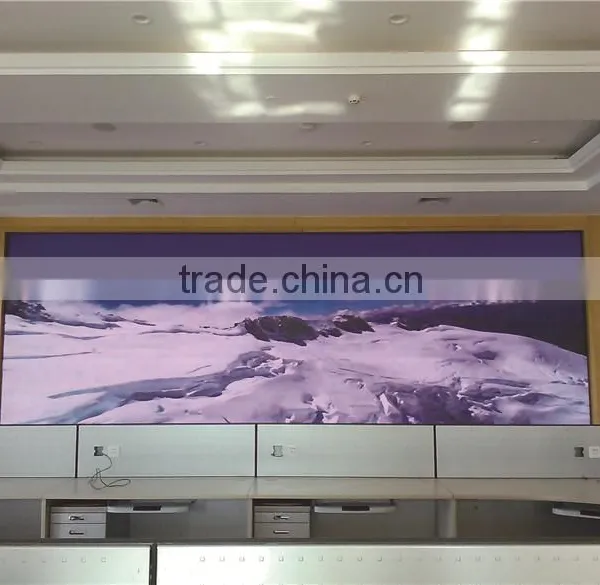

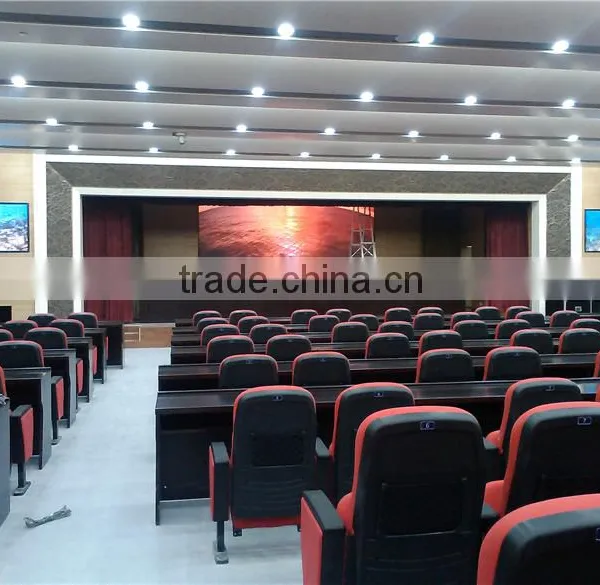

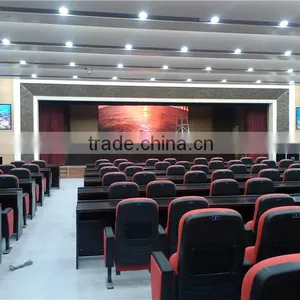

Indoor Small Pitch COB P1.5 LED Panel for Control Room _S1

Name: Indoor Small Pitch COB P1.5 LED Panel for Control Room _S1
Brand: CEDAR
SKU: 103430409
Availability: InStock

US$ 1 - 20,000 MOQ: 5 Square Meters

Key Specifications

Place of Origin:

Jilin, China

Brand Name:

CEDAR

Model Number:

CD-P1.5-IM

Changchun Cedar Electronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian/Shenzhen/Ningbo/Qingdao/Lianyungang

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jilin, China

Brand Name CEDAR

Model Number CD-P1.5-IM

Usage Indoor

Tube Chip Color Full Color

Display Function Video

Pixels Other, 1.5mm

Screen Dimension Customized

Models & Parameters

Parameters		NP1.5-IM
Pixel	Pixel Setting	RGB LED COB
	Pixel Pitch(mm)	1.5
	Pixel Density(Pixel/m²)	444444
Module	Module Resolution (W/Pixel × H/Pixel)	80 × 80
Module	Module Size (W/mm × H/mm)	120 × 120
Cabinet	Cabinet Resolution (W/Pixel × H/Pixel)	320 × 320
	Cabinet Size(W/mm × H/mm)	480 × 480
	Material	die-casting aluminum
	Cabinet Weight (kg/Pcs)	7
	Cabinet Area (m²)	0.2304
	Screen Weight (kg/m²)	32
	Cabinet Flatness (mm)	≤0.2
	Maintenance	rear
Optical Paramaeters	Dot by Dot Calibration	support
	Brightness (cd/m²)	≥600 (calibrated@9300K)
	Brightness Adjustment	manually, automatically or remotely
	Color Temperature (K)	3000 — 10000 adjustable
	Horizontal FOV ( °)	160
	Vertical FOV ( °)	160
	Contrast	6000:1
	Brightness Uniformity	≥ 95%
Electrical Parameters	Peak Power Consumption (W/m²)	600
	Average Power Consumption (W/m²)	200
	Input Voltage (V)	AC110~240V(50-60Hz)
System Process	Drive Mode	constant current (1/20 scan)
	Frame Rate (Hz)	60
	Refresh Frequency (Hz)	>1500
Applications	Lifespan (h)	100000
	Ingress Protection	Front IP54
	Operation Temperature (℃)	0 ~ 40℃
	Storage Temperature (℃)	-10 ~ 60℃
	Operation Humidity(RH)	10% ~ 90%, with no condensation
	Storage Humimdity (RH)	10% ~ 90%, with no condensation
Others	Support on-site dot-by-dot calibration
	Support on-line signal dual direction backup
	Available for being controlled by Cedar RTM Software
	Available for different signal format, such as AV,S-Video,VGA,DVI,HDMI,SDI,DP
	Parameters can be customized
