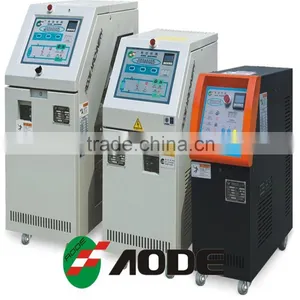

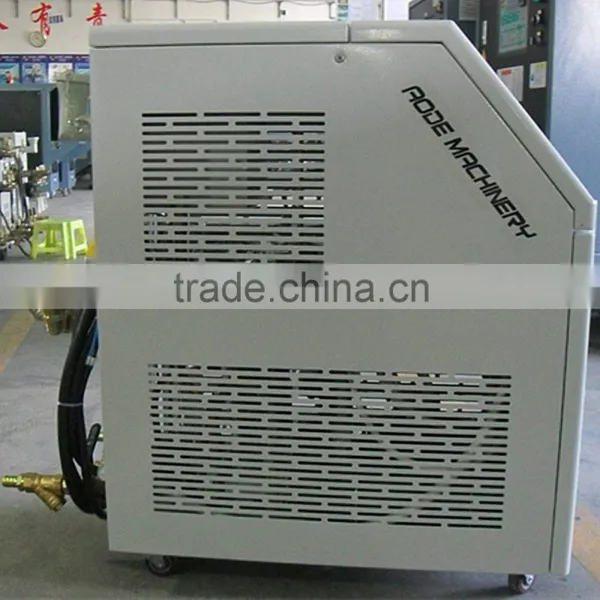

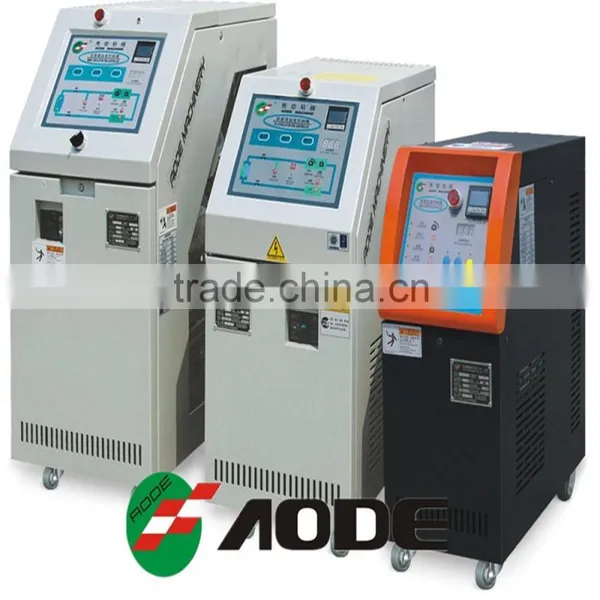

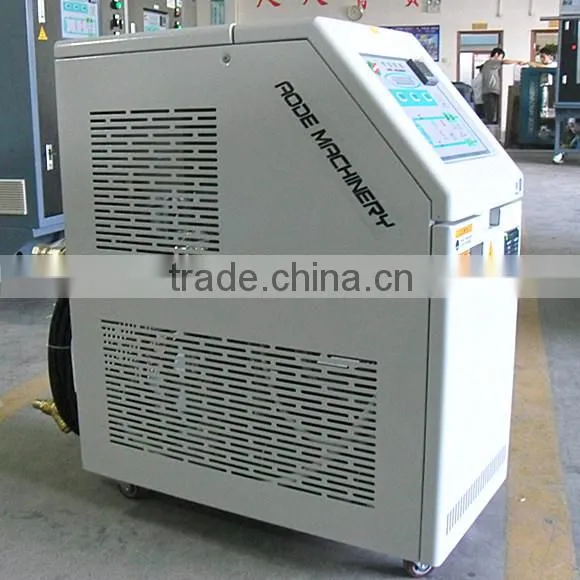

Standrd Oil Temperature Control Unit

Standrd Oil Temperature Control Unit thumbnail-1
Standrd Oil Temperature Control Unit thumbnail-2
Standrd Oil Temperature Control Unit thumbnail-3
Standrd Oil Temperature Control Unit thumbnail-4
Standrd Oil Temperature Control Unit photo-1
Standrd Oil Temperature Control Unit photo-2
Standrd Oil Temperature Control Unit photo-3
Standrd Oil Temperature Control Unit photo-4
US$ 1.00 - 1.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Oil Temperature Machine
Application:
Plastic Mould Auxiliary Equipment
Contact Supplier Request Quote Chat Now
Shenzhen Aode Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Oil Temperature Machine
Application Plastic Mould Auxiliary Equipment
Place of Origin Jiangsu, China
Brand Name AODE
Model Number AOS-05
Temperature Range Normal Temp.-180
Temperature Control Accuracy PID 1
Dimension(L*W*H) 630*325*745
Weight 70kg
Internal Piping Size 1/2 INCH
Voltage 380V 50HZ
Power(W) 6kw
Certification CE/ISO9001
After-sales Service Provided Engineers available to service machinery overseas
Product Description

Specifications:

ITEM

UNIT

AOS-05

Temp control range

℃

Inlet water temperature +25℃-180℃

Temp control accuracy

℃

PID±1℃

Power supply



380V 50HZ +E(5M)

Heat transfer medium



Conduction oil

Cooling method



Indirect Cooling

Heating capacity

KW

6

Max. power consumption

KW

7

Horsepower of pump

hp

0.5

Working flow of pump

L/min

                  30

Working pressure of pump

Kg/cm2

1.7

Oil reserve

liter

8

Alarm function



excess temperature/Open phase/oil starvation/ overloading/reverse turn

Cooling water pipe

inch

1/2

Circulating water pipe

inch

3/8×2

Size(L×W×H)

mm

630×325×745



Description:

Explosion-proof equipment(optional)

Air blowing and return water function(optional)

Thermometer for return water

Automatic air-exhausting function after startup

Switchover of heating power

 Instant cooling shut-down function(optional)

RS485 communication function for automated management(optional)

BY-PASS pressure release loop for hot water

Customizable multi-point temperature control unit

Customizable horsepower and heating power of water pump

Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances

Range of temperature control: +15℃-180℃for incoming water

Stainless steel integrated pipelines for less pipe resistance and rust

Control mode: imported microcomputer or PLC(optional)

Perfect safety protection, fault display, easy repair and maintenance even free of professionals

Packaging & Shipping

 The standard packing and shipping terms as below:



Minimum Order Quantity:

1 pc

Price:



Packaging Details:

Protective film, air bubble film,and Wooden case. According to client’s requirement

Delivery Time:

Within 20days after receiving deposit

Payment Terms:

30% T/T in advance, 70% balance before we delivery

Supply Ability:

500pcs/month
