Product Overview
XR02CX-5N0C1 is a classic single relay digital thermostat manufactured by Italian brand DIXELL (Little Elf). Operated under 220V power voltage, it is widely used for temperature control of commercial refrigerators, freezers, seafood constant temperature tanks, display chillers and cold storage equipment. It comes with matched NTC temperature sensor and installation brackets, supporting complete set sales for overseas refrigeration equipment dealers.
Core Product Advantages
Authentic Original DIXELL Brand
Imported Italy Dixell thermostat, complete formal certifications including EAC, UL and EN13485, stable circuit performance, long service life for commercial refrigeration scenarios.
Single Relay Output Design
Independent single relay control output, specially matched with pure titanium heating rods for seafood aquariums, automatically cut off heating when reaching set temperature to avoid overheating.
High Precision Temperature Sensing
Support NTC temperature probe, accurate real-time temperature detection, adjustable parameter range 0~60°C, fully meet seafood breeding, refrigeration storage temperature control demands.
Easy Panel Installation

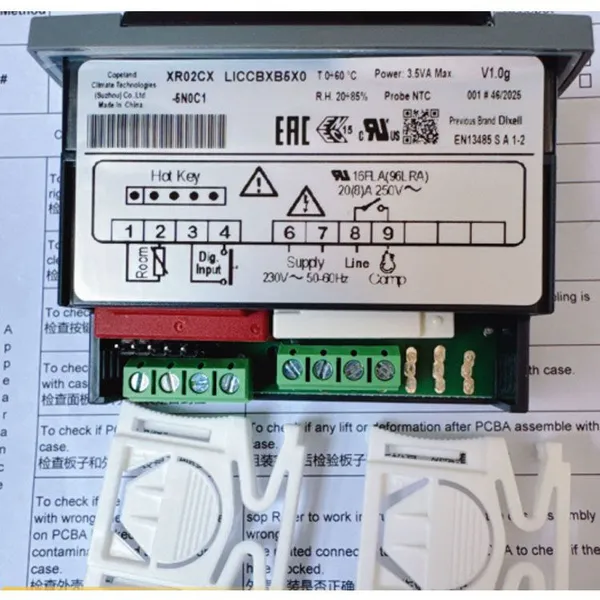

Standard embedded panel size, equipped with two plastic fixing clips for quick mounting on equipment cabinet; simple wiring terminals with clear digital marking to avoid wiring errors.
Flexible Package Combinations
3 optional configurations: single controller, controller + 1pc NTC sensor, full set with packaging box, to satisfy different customer bulk purchase demands.
Professional After-sales Technical Support
We provide parameter setting guidance and wiring technical support for all orders, solve temperature debugging problems remotely for global buyers.
Main Technical Specifications
Model: XR02CX-5N0C1
Brand: DIXELL (Italy)
Rated Voltage: 230V 50/60Hz
Max Power: 3.5VA
Relay Type: Single Relay
Temperature Range: 0℃ ~ 60℃
Sensor Type: NTC Probe
Certifications: EAC, UL, EN13485
Matching Application
Seafood constant temperature tank, commercial refrigerator, display freezer, cold storage cabinet, chiller, small refrigeration machinery, matched with titanium heating rod for saltwater aquaculture temperature control.

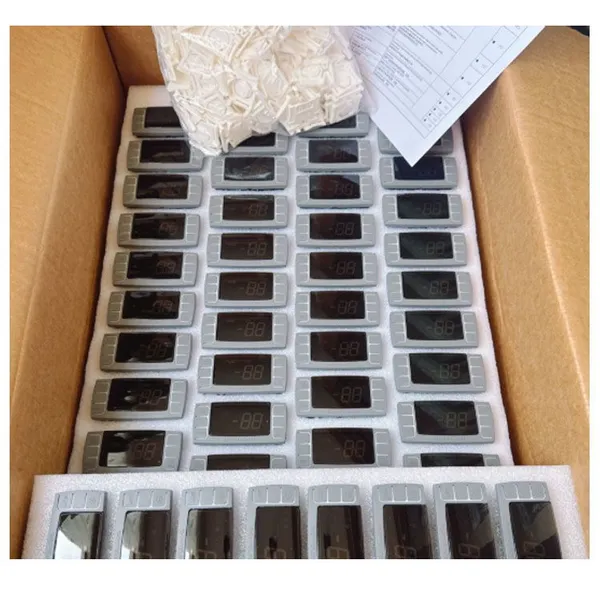

Packing Options
Thermostat only (without sensor & box)
Thermostat + 1 NTC temperature sensor
Full set: Thermostat + sensor + original packaging box
Each set equipped with 2pcs installation fixing brackets.
