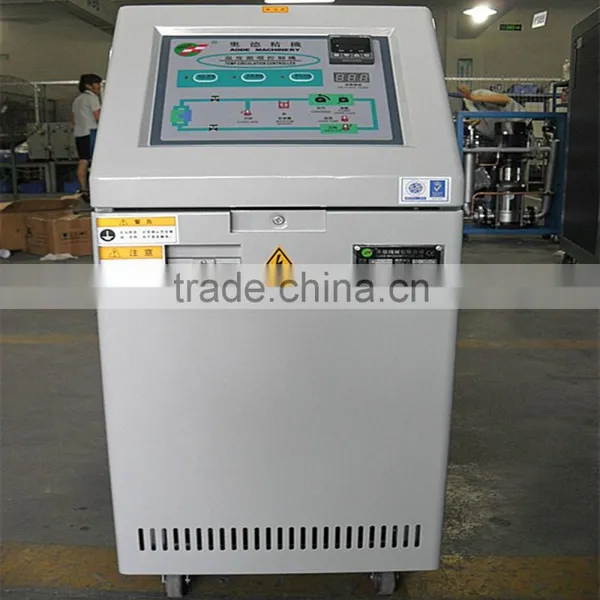

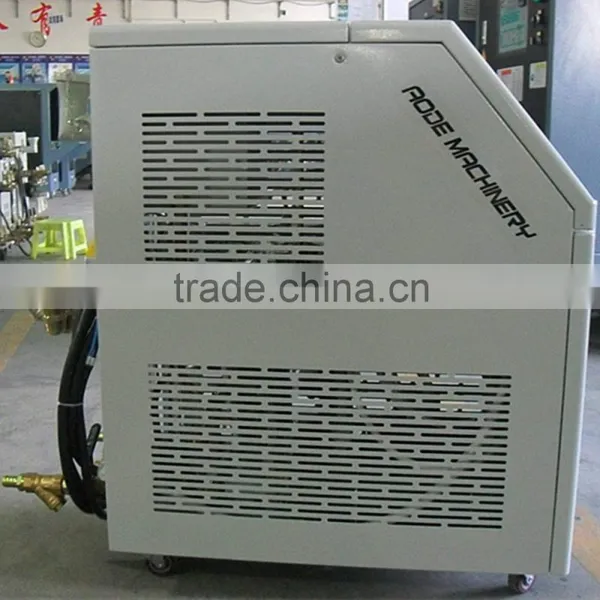

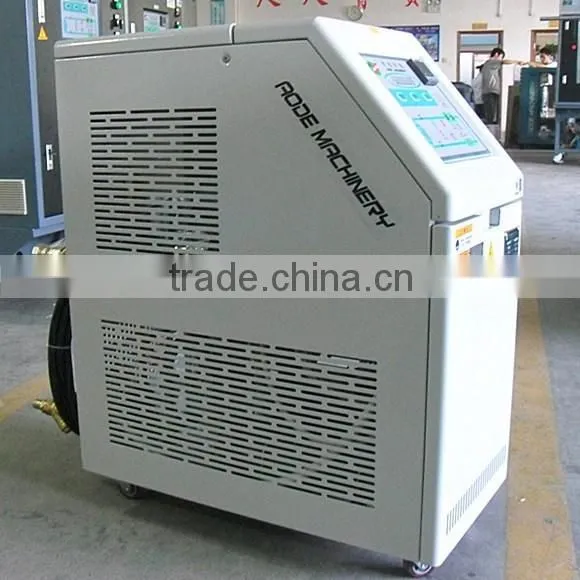

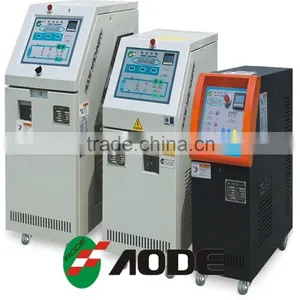

5kw Industrial Thermal Oil Heater With High Temperature

Name: 5kw Industrial Thermal Oil Heater With High Temperature
Brand: AODE
SKU: 103420867

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Type:

Oil Temperature Machine

Application:

plastic injection mould,roller,reaction kettle, plate

Shenzhen Aode Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Oil Temperature Machine

Application plastic injection mould,roller,reaction kettle, plate

Place of Origin Guangdong, China

Brand Name AODE

Model Number AOS-05

Temperature Range 45℃~180℃

Temperature Control Accuracy PID±1℃

Dimension(L*W*H) 630*325*745mm

Weight 66kg

Internal Piping Size 3/8

Voltage 3N380V50HZ

Power(W) 6KW

Certification CE and ISO

After-sales Service Provided Engineers available to service machinery overseas

AOS-05 Industrial thermal oil heater with high temperature Quick Detail:

Temp. Control accuracy:PID±1℃
Temp. Control range: Inlet water temperature+25℃-180℃
Certification:CE & ROHS
Controller:microcomputer
Heating capacity: 6KW
Maximum power consumption: 7KW
Alarm function:Excess temperature, open phase, oil starvation, overloading, reverse turn

AOS-05 Industrial thermal oil heater with high temperature Description:

Explosion-proof equipment(optional)
Air blowing and return water function(optional)
Thermometer for return water
Automatic air-exhausting function after startup
Switchover of heating power
Instant cooling shut-down function(optional)
RS485 communication function for automated management(optional)
BY-PASS pressure release loop for hot water
Customizable multi-point temperature control unit
Customizable horsepower and heating power of water pump
Brands OMRON, FUJI, TE, LG, MOELLER, ABB, and WEST for electric appliances
Range of temperature control: +15℃-180℃for incoming water
Stainless steel integrated pipelines for less pipe resistance and rust
Control mode: imported microcomputer or PLC(optional)
Perfect safety protection, fault display, easy repair and maintenance even free of professionals

AOS-05 Industrial thermal oil heater with high temperature Specifications:

ITEM	UNIT	AOS-05
Temp control range	℃	Inlet water temperature +25℃-180℃
Temp control accuracy	℃	PID±1℃
Power supply		AC3N380V 50HZ +E(5M)
Heat transfer medium		Conduction oil
Cooling method		Indirect Cooling
Heating capacity	KW	6
Max. power consumption	KW	7
Horsepower of pump	hp	0.5
Working flow of pump	L/min	30
Working pressure of pump	Kg/cm2	1.7
Oil reserve	liter	8
Alarm function		excess temperature/Open phase/oil starvation/ overloading/reverse turn
Cooling water pipe	inch	1/2
Circulating water pipe	inch	3/8×2
Size(L×W×H)	mm	630×325×745
