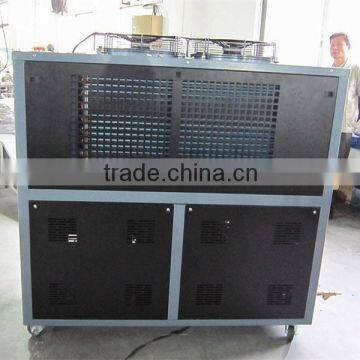

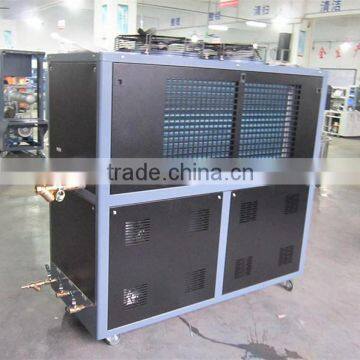

ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory

ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory thumbnail-1
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory thumbnail-2
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory thumbnail-3
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory thumbnail-4
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory thumbnail-5
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory thumbnail-6
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory photo-1
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory photo-2
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory photo-3
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory photo-4
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory photo-5
ACH-10W(A) Cold and Hot All-in-one Temperature Controller Factory photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Temperature control unit
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Aode Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Temperature control unit
Place of Origin Guangdong, China
Brand Name AODE
Model Number ACH-10W(A)
Cooling Capability(kw) 31.83KW
Voltage 3N/380V/50HZ
Dimension(L*W*H) 1300*610*1445mm
Weight 312kg
Certification CE, Other, CE, ISO
Warranty one year, 1 year
After-sales Service Provided Engineers available to service machinery overseas

ACH-10W(A) Cold and hot all-in-one temperature controller factory Quick Detail:

  1. Refrigerating capacity: 27370Kcal/h

  2. Range of temperature control:3-98degrees
  3. Certification:CE & ROHS
  4. Compressor type: Totally closed vortex type or piston type
  5. Compressor power: 3.75*2KW
  6. Heating energy:12KW



ACH-10W(A) Cold and hot all-in-one temperature controller factory Description:



  • Compressor head imported from Europe and USA

  • Oxygen-free welding for copper pipes

  • RS485 communication function for automated management(optional)

  • Switchover of heating power

  • Stainless steel integrated pipelines for less pipe blockage and rust

  • Imported quality parts for longer service lives

  • Brands OMRON, FUJI, TE and LG for electric appliances

  • Control mode: imported microcomputer or PLC(optional)

  • Perfect safety protection, fault display, easy repair and maintenance even without professionals

  • High-efficiency evaporator and condenser which can save energy by more than 30%

  • Two groups of compressor heads(used separately or jointly) for C-20

  • Range of temperature control:+5-98degrees for incoming water



ACH-10W(A) Cold and hot all-in-one temperature controller factory Specifications:



ITEM

UNIT

ACH-10W(A)

Range of temperature control

℃

3℃-98℃

Refrigerating capacity

Kcal/h/kw

27370/31.83

Power supply



3N-380V/415V 50HZ/60HZ

Compressor

Type



Totally closed vortex type or piston type

Power

Kw

3.75×2

Cooling water

Quantity of water

M3/h

6.85

Water resistance

Kpa

34

Diameters of the inlet tube and the outflow tube

G1-1/2

Chilled water

Quantity of water

M3/h

5.47

Chilled water tank

M3

                                      0.188

Diameters of the inlet tube and the outflow tube

G2

Ice water Pump

Power

Kw

1.5

Pressure

Kpa

205

Hot water pump

Power

Kw

1.5

Pressure

Kpa

205

Heating energy

       Kw

12

Size(L×W×H)

mm

1300×610×1445

Weight

Kg

312



AODE Factory                       service hotline: +86-13682516936



ACH-10W(A) Cold and hot all-in-one temperature controller factory



Our Customers                     service hotline: +86-13682516936



ACH-10W(A) Cold and hot all-in-one temperature controller factory



AODE Certification              Service Online: +86-13682516936



ACH-10W(A) Cold and hot all-in-one temperature controller factory





AODE Spirit                           Service Online: +86-13682516936



ACH-10W(A) Cold and hot all-in-one temperature controller factory





AODE Components              Service Online: +86-13682516936



 ACH-10W(A) Cold and hot all-in-one temperature controller factory





Applications                           ervice Online: +86-13682516936



ACH-10W(A) Cold and hot all-in-one temperature controller factory





Successful Projects            Service Online: +86-13682516936



ACH-10W(A) Cold and hot all-in-one temperature controller factory





AODE Service                       Service Online: +86-13682516936



Aode machinery provides customers with professional and high-speed before sale, sale, after-sales service,service details are as follows;



1, Provides customers with a full range of technical support and technical training anytime, anywhere.



2, The whole equipment free one-year warranty and lifetime maintenance.



3, Provides customers with the thoughtful usage of maintenance tips and perfect after-sales service management system.



4, Received after-sales requirement, technicians will arrive the user factory within 24 hours and handle the equipment failure immediately.



ACH-10W(A) Cold and hot all-in-one temperature controller factory





Terms and Conditions:



1.Trade terms:  EXW, FOB, CIF and so on



2.Delivery Time: Within 20-25 days after received deposit



3.Payment Terms:40% T/T in advance, 60% balance before delivery



4.Shipping port: Shenzhen, Tianjin or Shanghai



5. Package: Wooden case
