Specifications

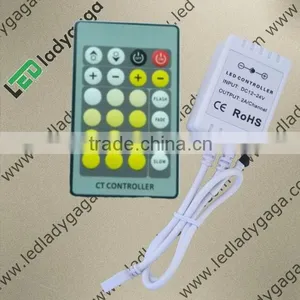

led strip controller / dimmer for single color1. 24 keys IR;
2. Working voltage:DC12V/24V
3.Power:12V*6A=72W
Led strip controller / dimmer for single color;
Technical Dscription:
Working temperature |
-20-60°C |
Supply voltage |
DC12V,24V optional |
Power supply mode of remote |
botton battery |
Connecting mode |
common anode |
Certificates |
CE&RoHS |
controller size |
L61*W35*H22mm |
Remote control type |
IR |
| Voltage Voltage | DC12V/24V |
Static power consumption |
<1W |
Output current |
<6A(each channel) |
Output power |
12V:72W, 24V:<144W |
More items information:
Amplifiers:
Dimmer:
Direction for use:
1.Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power.
2.Operation: you will receive infrared remote control in front of infrared receiver to ensure that there is no barrier between the remote controller and receiver.
The key press functions are shown in the table as below (in accordance with the key position order)
Notes:
1. Supply voltage of this product is DC12V~24V, never connect to others or AC220V.
2. Before using the infrared remote, the insulating film should removed.
3. Lead wire should be connected correctly according to grade that connecting diagram offers.
4. This product is not to overload;
5. Warranty of this product is two year, but exclude the artificial situation of damaged or overload working
