Specifications
software for led card controller1.Professional RGB LED Pixel Controller
2.2 years warranty
3.CE and RoHS
4.Easy install Con
Model NO. : LG20-T-1000S
| Product Details: | |
| Product Name | RGB LED Pixel Controller |
| Controller Way | Point control |
| Item Type | LED Pixel Controller |
| LED Chip | Strawhat Round LED |
| Max. Controller points | 2048 |
| Input Voltage(V) | DC5V / DC7.5-24V |
| Max. Current | 9A(3A/Channel) |
| Dimension(MM) | L159mm*W89mm*H24mm |
| Colors Effective |
White/Warm White
color changing gradually,skipping,chasing,flowing,display text,graphic,animation,video ect |
| Working Temperature | -30-80°C |
| Working Lifetime | 50,000 hours |
| Certification | CE,RoHS,FCC |
| Brand Name | LEDLadygaga |
| Storage Temperature | -20°C to +50°C |
| Warranty | 2 years |
| Power consumption | 1W |
| Payment | &Shipping Terms |
| Minimum Order Quantity | 5 pcs |
| Port | Shenzhen |
| Packaging Details: | 50 PCS in a inner box (48*48*36cm) |
| Weight | 3KG/300pcs |
| Delivery Time: | 5-7 working days after reciept of the payment. |
| Payment Terms: | T/T,Paypal,Western Union, MoneyGram |
| Supply Ability: | 1,000,000 pcs/ Month |
Applications:
SD Card LED Controller for magic strip,Full color LED modules,LED pixel lights...ect Spot lamps,can realize Can realize color changing gradually,skipping,chasing,flowing,display text,graphic,animation,video ect.
Details:
The effective for RGB and Full color:

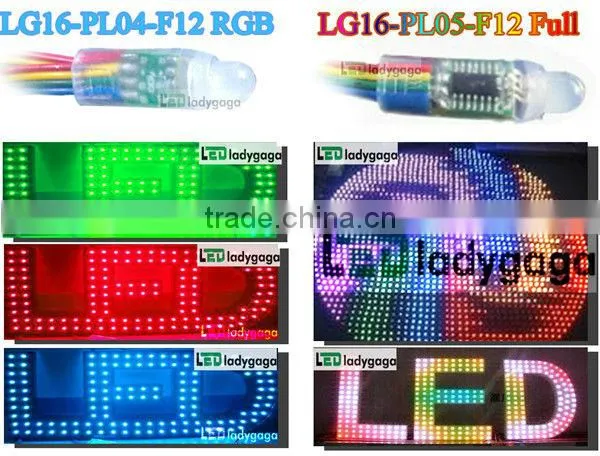

LG16-PL05-F12Full with IC is controlled by SD card controller.
Features:
1, Suitable to 32 grade-256 grade-4096 grade gray level control, software Gamma Correction.
2, Combined with video editing software LedEdit, it supports all various of rules, special shape and other point , line, surface light..
3, It is 1 port controller, each port can connect 512/2048 lights.
4, Could play the content in SD card.
5, “SET” save operation, “MODE” change effect animations, “SPEED+” speed+, “SPEED-” speed-
Note: T-2048 dots controller, load 512/1024 lights each port, the playback speed can be up to 30 frames/sec; if it connect more than 512 lights each port, the frame rate would automatically reduce according to the number of lights.
Remark:
1.Totally, no more than 2048 pcs Full Color LED Pixel Lamp(with IC) can be connected.
2.Please take the side of lamp with black IC as signal input side to connect controller.
3.When pull out the SD card, please make sure that the power supply was turned off, or it will damage the programme in the SD card.
4.Usually, each 300 pcs RGB pixel lamps can connect to power supply directly, to make sure that the lamps will get enough and uniform power supply.
5.Since the pixel lamp with IC, each lamp can be controlled.After programmed with special software and save into the SD card, you can make it show graphic, text, animation, video etc.
.
Memory card:
type:SD card(suggest using high-speed SD card)
Capacity:128MB—2GB
Format:FAT
Store file:*.led
