Pen-hardness Tester (SHL-100)
SHL-100 Pen type Leeb hardness tester according to the Leeb hardness measurement principle can be easily and quickly measure a variety of metal materials, and instantly display the value of measured hardness. And it can swiftly convert the hardness value in different hardness scales.
1) Measuring range:
(170-960)HLD,(17-68.5)HRC,(19-651)HB,(80-976)HV,(30-100)HS,(59-85)HRA(13 -100)HRB
2) Measuring direction:
Support 360º testing (Vertically downward, oblique, horizontal, oblique, straight up)
3)Hardness scale:
HL,HB,HRB,HRC,HRA,HV,HS
4) Display
High resolution dot matrix LCD, LED backlight
5) Data storage
Max 500 groups (relative to impact times 32~1)
6)Working power
3.6V (built-in lithium battery and charging circuit)
7) Continuous working period: about 100 hours(With backlight off)
8) Communication interface: USB1.1
Steel and cast steel, alloy tool steel, stainless steel, gray iron, ductile iron, cast aluminum alloy, copper-zinc alloys (brass), copper-tin alloy (bronze), copper, forged steel.
Circumstance temperature: Operation temperature -20~+60℃;
Keeping temperature: -30℃~+60℃
Relative humidity ≤ 90%
The surrounding environment without a strong vibration, strong magnetic field, non-corrosive medium and severe dust.
1) Host 1 set
2) Sensor 1 piece
3) Nylon brush 1 piece
4) Small support ring 1 piece
5) Manual book 1 piece
6) ABS Equipment cabinet
Shanghai Jvjing Precision Instrument Manufacturing Co., Ltd was founded since 1995, is formerly named Instrument Department of CAS (Chinese Academy of Sciences). We specialize in the R&D, manufacturing and selling of High Temperature Lab Furnace, Hardness Tester and Universal Testing Machine. Our team has about 200 staff, including 50 technicians, 6 doctors, 10 senior engineers. They have a high level of professional knowledge and provide strong technical support for our team.

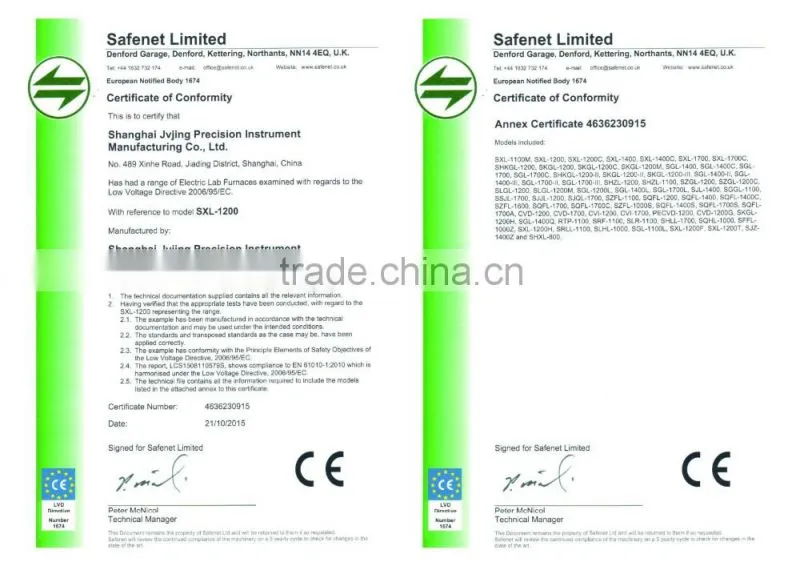

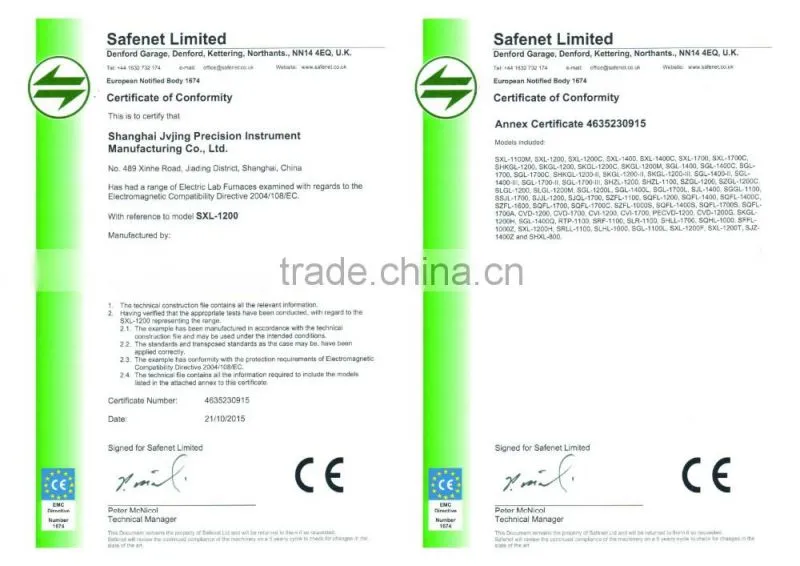

Through ERP system, we realize real-time management of our business activities. We follow 6-Sigma system, National Standards, America Material Standards and EU standards to daily manufacturing and the design of new products. Our company has CE certification and ISO9001 certification. So far, our company has 5 Utility Patent Certificate awarded by SIPO (State Intellectual Property Office) which contain our core products showing our great Innovation Strength.

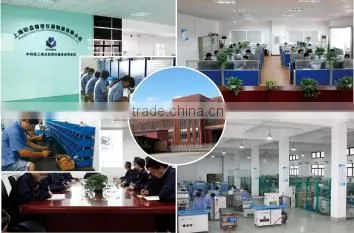

Factory & team
In professional exhibition:
1. Which countries your products are exported to?
Our products are sold all over the world and with related certifications.
2.Is your goods has ISO9001 or CE certificate ?
Yes,all our goods has ISO and CE certificate. All machines are high quality goods
3. Which export port you use?
Commonly we will use Shanghai port, sometime,it can appoint as you like.
4.How to use your machine?
We have paper instructions ,and we will teach till you learn it.
5.How about the warranty?
All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
Warm Tips:
For us, we always insist high quality first, we hope can do long-term business with our customers, so we always used better materials to ensure the high quality, honest and real memory to our customers.
Any question, please don't hesitate to send me an inquiry.
