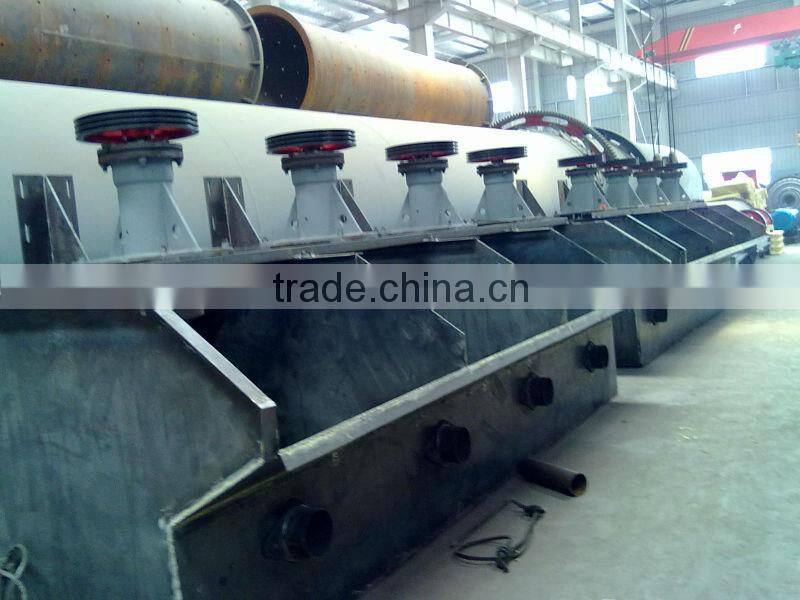

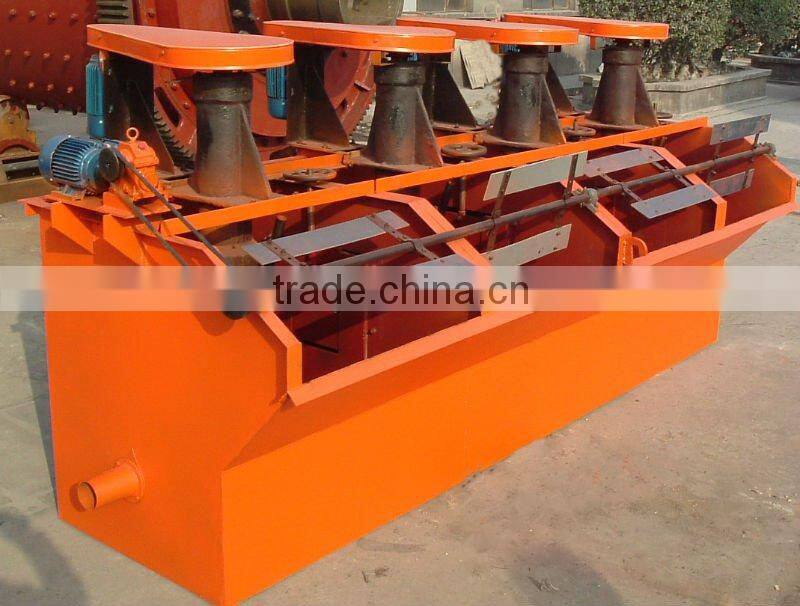

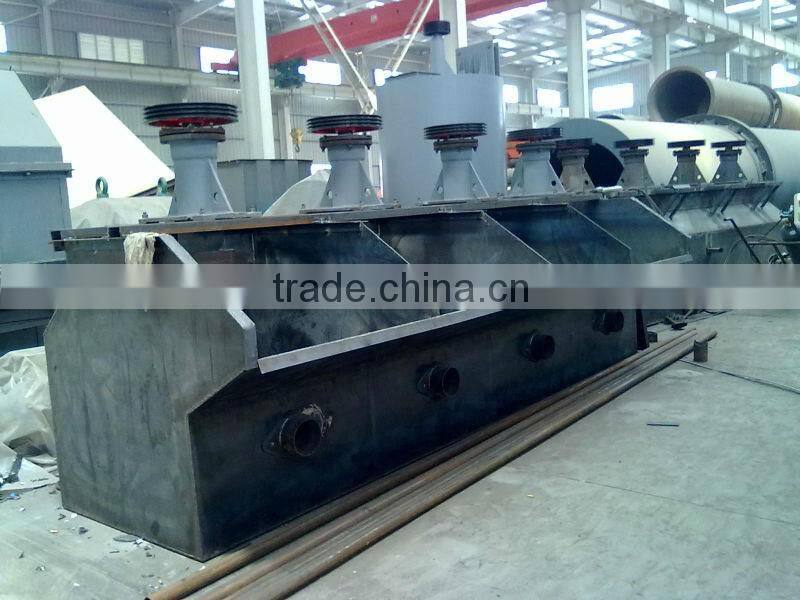

Professional copper gold flotation machine with great price
1. Mineral Flotation machine Products application:
XJKFlotation Machine is applicable for separating gold, silver, copper, Lead (Pb), Zinc (Zn), Tin, Nickel (Ni) and so on. , non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation, fine separation and floatation, so the useful ore are reclaimed.
Flotation plant main equipment: crusher, ball mill, classifier, magnetic separator, mixing tank, flotation machine, shaking table.
2. Mineral Flotation machine Working Principle:
The Flotation Machine was driven by the motor with the working of impeller rotation, and then produces the centrifugal effect, and form the negative pressure. On one hand, adsorbing enough air to mix with the pulp; on the other hand, stirring the mixture of pulp and drugs, in the meanwhile, refining bubble, make the mineral adsorbed on bubbles, float to the pulp surface and form the mineralized bubble . Adjust the flashboard height, control the pulp surface, make the foam scraped by the scraping plate.
3. Main Technical Parameters of XJK Series Flotation Machinery
| Model | XJK-0.35(3A) | XJK-0.62(4A) | XJK-1.1(5A) | XJK-2.8(6A) |
XJK-5.8 (7A) |
||
| Effective Volume(m3) | 0.35 | 0.62 | 1.1 | 2.8 | 5.8 | ||
| Capacity(m3/min) | 0.18~0.4 | 0.3~0.9 | 0.6~1.6 | 1.5~3.5 | 3~7 | ||
| Rotate Speed(r/min) | 470 | 400 | 330 | 280 | 240 | ||
| Impeller Dia (mm) | 300 | 350 | 500 | 600 | 750 | ||
| Motor | Model | Rotator | Y90L-4 | Y100L2-4 | Y132M2-6 | Y160L-6 | Y200L2-6(Y225M-6) |
| Scraper | Y90S-4 | Y90S-4 | Y90S-4 | Y90S-4 | Y90L-4 | ||
| Power(Kw) | Impeller Motor | 1.5 | 3 | 5.5 | 11 | 22(30) | |
| Scraper Motor | 1.1 | 1.1 | 1.1 | 1.1 | 1.5 | ||
| Weight(t/Single Tank) | 0.43 | 0.86 | 1.38 | 2.33 | 3.533 | ||
We are an ISO,CE,SGS certified professional mining machinery manufacturer,we can provide the complete set equipment of the flotation separating production line,and also the magnetic separting production line,and the stone&the sand-making production line! welcome to our factory to visit the whole production line! Expecting to cooperate with you !
Orient Group-- Henan Ruiguang Mechanical Scence & Technology Co., Ltd
Address: No.18, Dongfang Road, Mazhai industrial zone, 27 districts, Zhengzhou, China
Contract : Jolly wang
Mobile: 0086-18638207662
English website:
http://hnruiguang.en.china.cn
