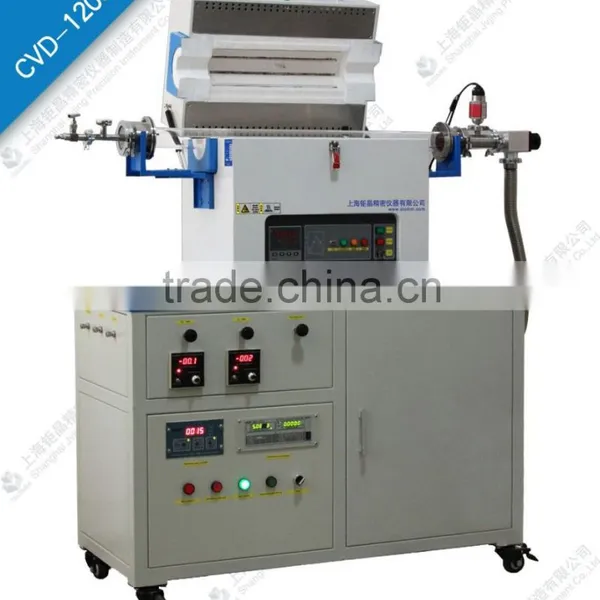

Graphene Growth Furnace - CVD Furnace

Name: Graphene Growth Furnace - CVD Furnace
Brand: SIOMM
SKU: 103403167
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

SIOMM

Model Number:

CVD-1200G

Place of Origin:

Shanghai, China

Shanghai Jinwei Instrument Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Brand Name SIOMM

Model Number CVD-1200G

Place of Origin Shanghai, China

Specifications

1)Best value Graphene Growth Furnace - CVD furnace.
2) easy to operate, a variety of growth parameters are reserved.
3) CE ap

We are 100% Chinese manufacturer, give you factory direct price Graphene Growth Furnace - CVD furnace ,save your cost !

Functions

Adopt touch-sensitive screen control, easy to operate; A variety of growth parameters are reserved.
With vacuum & atmospheric pressure two popular growth mode
Preparation of graphene single crystal, the size can be up to a few millimeters
Approved by ISO9001 & CE certificate
Provide accessories and maintenance for life-long time

Specification

Model	CVD-1200G
Constant tempera -ture zone length	Single zone: 200mm; Two zone: 100mm/100mm (customized)
Sample chamber size	Φ40/60/80 * 1200mm (customized )
Power	2.5KW Temperature: Room temperature ~ 1200C
Feeding ways	Manual
Connector	Stainless steel material KF flange with water cooling system
Growth gas	Ar: purity 99.999%, 40L, with Inert gas pressure reducing valve, flow rate: 0 - 1000 sccm; H2: purity 99.999%, 40L, with H2 pressure reducing valve, flow rate: 0 - 200 sccm; CH4: purity 99.999%, 40L, with pressure reducing valve, flow rate: 0 - 10 sccm (customized)
Control system	Temperature, air flow and vacuum controlled by PC, Some of these functions can use manual control. computer real-time control and display all experimental parameters related to the growth, automatically save the experimental data.
