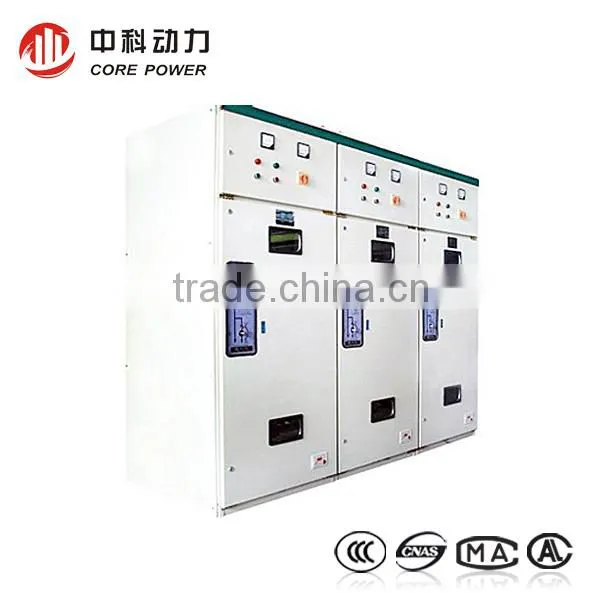

12KV Indoor Metal-clad Withdrawable Switchgear KYN28A-12(z)
Product Overview :
KYN series metal-clad removable enclosed switch cabinet (called switch cabinet for short). It is applicable for power receiving and distribution in the 3.6-12Kv three-phase AC 50Hz single bus bar and single bus bar sectioning system. It has the functions of controlling, protecting and monitoring the circuit.
Working Conditions:
a. The Ambient temperature upper limit and lower limit are respectively +40°C and -40°C; (allowing storage and transportation at -30°C);
b. Altitude is not more than 1000m;
c. Relative humidity: daily average value should not be more than 95%, while monthly average value should not be more than 90% (+25°C);
d. Seismic intensity should be not more than 8°;
e. Places without fire, explosion risk, serious pollution, chemical corrosion and violent vibration.
Features:
The switch cabinet is metal-clad. Its structure design accords with the standards GB3906-91, IEC298, DL404 and DL402. The crust structure is made of steel plates by means of bending and welding, which are joined by bolts. The hand buggy panel is the door of cabinet. The bosom of switch cabinet is divided into a breaker chamber, a main bus bar chamber, a cable chamber and a relay chamber by metal partitions. The degree of protection of the entire crust and compartments is IP2X equally. All the metal structures are connected to ground reliably. All the compartments of main circuit system have pressure release channels for independent exhaust.
Item |
Unit |
Parameters |
|||
Rated voltage |
KV |
12~24 |
|||
Rated current |
HZ |
50 |
|||
Rated current of circuit breaker |
A |
630/2000 |
|||
Rated current of switch cabinet |
A |
630/2000 |
|||
Rated current of dynamic stability (4S) |
KA |
16/20/25/31.5/40/50 |
|||
Rated current of dynamic stability (peak) |
KA |
40/50/63/80/100/125 |
|||
Rated short circuit drop-out current |
KA |
16/20/25/31.5/40/50 |
|||
Rated short circuit making current (peak) |
KA |
40/50/63/80/100/125 |
|||
Rated insulation level |
1min power frequency withstand voltage |
KA |
24 |
32 |
42 |
lighting impulse withstand voltage |
KA |
40 |
60 |
75 |
|
protection degree |
IP2X shell: IP4X, it is IP2X when compartment and circuit breaker room is open |
||||
|
|||||
