Home > Products > High / Low Voltage Switchgear > GCK Series Low Voltage Switchgear

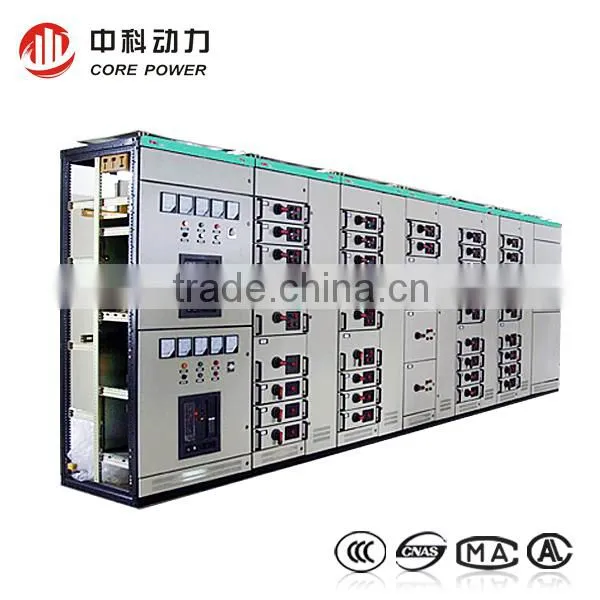

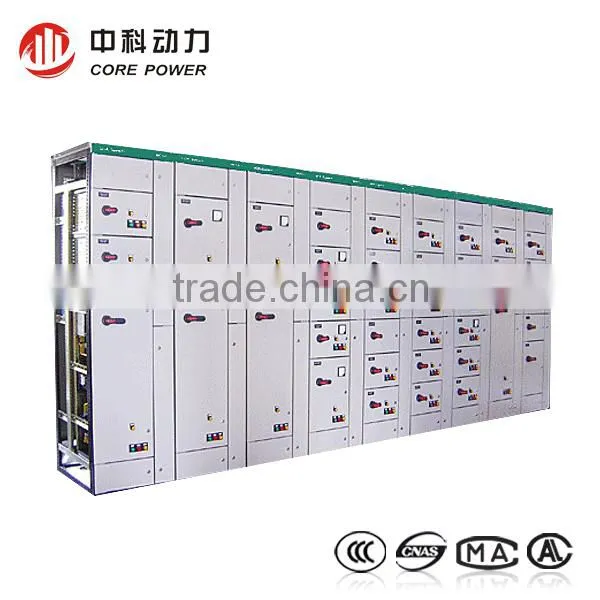

GCK Series Low Voltage Switchgear
- 1000 Piece / Pieces per Month
- FUZHOU
- T/T
Product Details
Place of Origin: | Fujian, China | Brand Name: | Core Power | Model Number: | GCK |
Product Description
GCK Series Low Voltage Switchgear
General Descrpion:
GCS series low-voltage drawout switchgear panel is applied to 3-phase AC 50(60) Hz ,rated operating voltage of 400V(660V),
rated current of 4000A and below for power generation and supply, motor control and reactive power compensation.
Main Characteristics:
1,Easy installation,beautiful appearance,various structure,easy maintenance.
2,Application range: power plants, oil, chemical,high rise building and textile industry etc.
3,Structure:Fixed board.
4,Operation voltage: Low voltage.
5,Shell material: Steel plate
6,Shell protection grade:IP30-40 or according to request
7,Form:All-packaged type
Standards:
Meet with IEC60439-1 and GB7251.1 and JB/T 9661 standards.
No. | Item | Parameter |
1 | Main circuit voltage rating(V) | AC 380,400,660 |
2 | Auxiliary circuit voltage rating(V) | AC 220,380,400; DC 110,220 |
3 | Rated frequency(Hz) | 50/60 |
4 | Rated insulation voltage (V) | 660,1000 |
5 | Horizontal busbar current rating(A) | ≤4000 |
6 | Vertical busbar(MCC) current rating(A) | 1000 |
7 | Busbar short-time withstand current rating(kA/1s) | 50,80 |
8 | Busbar peak value withstand current rating(kA/0.1s) | 150,176 |
9 | Main circuit power freq. test voltage(V/1min.) | 2500 |
10 | Auxiliary circuit power freq. test voltage(V/1min.) | 1760 |
11 | Three phase four wire system busbar | A,B,C,PEN |
12 | Three phase five wire system busbar | A,B,C,PEN |
13 | Protection degree | IP30,IP40 |
1: What certifications do you get?
A: We have ISO, CE,CCC,etc.
.
2: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
3: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.
4: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.
5. How to pay?
A: T/T and L/C are acceptable, and T/T will be more appreciated.
30% deposit before producing, 70% balance before loading by T/T.
6. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
7. What about the Package?
A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.
8.How to contact?
A: Send your inquiry details in the below, Click “send” now!
