3KV,6KV,10KV,12KV KYN/XGN High Voltage Switchgear

Name: 3KV,6KV,10KV,12KV KYN/XGN High Voltage Switchgear
Brand: COREPOWER
SKU: 103397243
Availability: InStock

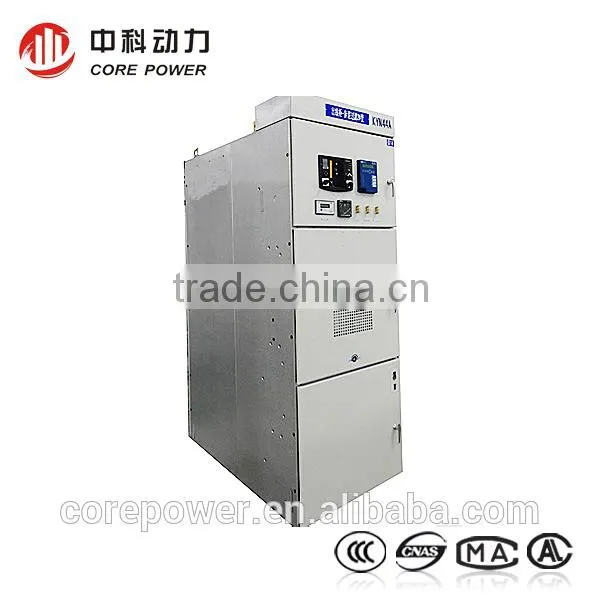

3KV,6KV,10KV,12KV KYN/XGN High Voltage Switchgear thumbnail-1

3KV,6KV,10KV,12KV KYN/XGN High Voltage Switchgear photo-1

US$ 6,000 - 8,000 MOQ: 10 Sets

Key Specifications

Get Latest Price

Place of Origin:

Fujian, China

Brand Name:

COREPOWER

Model Number:

KYN28-12

Contact Supplier Request Quote Chat Now

Core Power (Fujian) New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FUZHOU

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Fujian, China

Brand Name COREPOWER

Model Number KYN28-12

Product Overview :

KYN series metal-clad removable enclosed switch cabinet (called switch cabinet for short). It is applicable for power receiving and distribution in the 3.6-12Kv three-phase AC 50Hz single bus bar and single bus bar sectioning system. It has the functions of controlling, protecting and monitoring the circuit.

Working Conditions:

a. The Ambient temperature upper limit and lower limit are respectively +40°C and -40°C; (allowing storage and transportation at -30°C);
b. Altitude is not more than 1000m;
c. Relative humidity: daily average value should not be more than 95%, while monthly average value should not be more than 90% (+25°C);
d. Seismic intensity should be not more than 8°;
e. Places without fire, explosion risk, serious pollution, chemical corrosion and violent vibration.

Features:

The switch cabinet is metal-clad. Its structure design accords with the standards GB3906-91, IEC298, DL404 and DL402. The crust structure is made of steel plates by means of bending and welding, which are joined by bolts. The hand buggy panel is the door of cabinet. The bosom of switch cabinet is divided into a breaker chamber, a main bus bar chamber, a cable chamber and a relay chamber by metal partitions. The degree of protection of the entire crust and compartments is IP2X equally. All the metal structures are connected to ground reliably. All the compartments of main circuit system have pressure release channels for independent exhaust.

Technical parameters :

Item		Unit	Parameters
Rated voltage		KV	12~24
Rated current		HZ	50
Rated current of circuit breaker		A	630/2000
Rated current of switch cabinet		A	630/2000
Rated current of dynamic stability (4S)		KA	16/20/25/31.5/40/50
Rated current of dynamic stability (peak)		KA	40/50/63/80/100/125
Rated short circuit drop-out current		KA	16/20/25/31.5/40/50
Rated short circuit making current (peak)		KA	40/50/63/80/100/125
Rated insulation level	1min power frequency withstand voltage	KA	24	32	42
	lighting impulse withstand voltage	KA	40	60	75
protection degree	IP2X shell: IP4X, it is IP2X when compartment and circuit breaker room is open

Warranty Service:

1.Warranty conditions:Before product ship out from factory ,client should known the stipulations on the instruction including storage,installation and usage.Only when client received the products and find damages during transport can meet our warranty conditions.

2.Warranty period: The date products off factory,valid for 12 months.

3.Warranty ways: In warranty period, the manufacturer is responsible for free replacement or repair.Exceed the warranty period,client can discuss with manufacturer to replacement or repair for charge.

1: What certifications do you get?

A: We have ISO, CE,CCC,etc.

2: Are OEM&ODM available?

A: Yes, we accept OEM and ODM.

3: When to get the price?

A: We usually quote within 24 hours after getting your inquiry.

if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.

4. What is the delivery time?

A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.

5. What about the Package?

A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.

6.How to contact?

A: Send your inquiry details in the below, Click “send” now!
