1.Sumarry

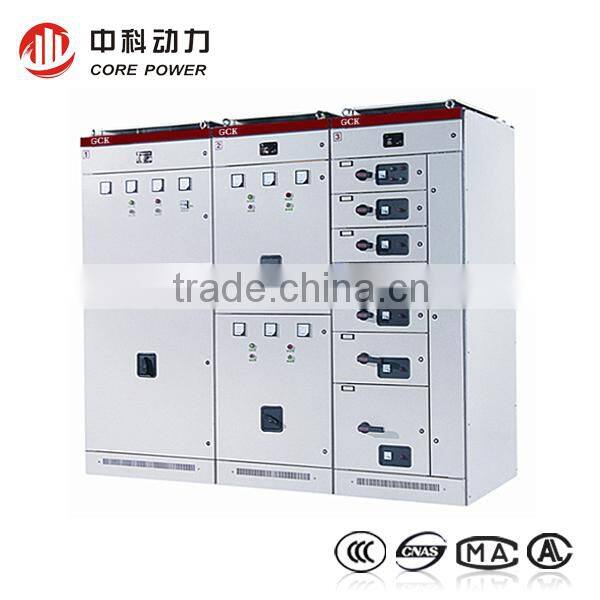

GCK low voltage withdrawable switchgear for power plants, metallurgical rolling, oil chemical industry, textile, ports, building hotels and mining enterprises, high-rise buildings and other places, as AC three-phase four-wire or five-wire system, voltage 380V, 50Hz power distribution and motor control of the power system to use, the use of steel cabinet, assembled from a combination of various functional units are relatively independent, and promote the use of leverage to promote institutional bodies to ensure that the same unit can be interchanged to improve reliability.
2. Normal conditions of use
1 The ambient air temperature is not higher than 40 ℃, not lower than -50 ℃, and within 24 hours the average temperature does not exceed + 35 ℃;
2 Altitude: 2000m and below.
3 Install the tilt of no more than 5 °, and the entire group of cabinet column relatively flat (in line with GBJ232-82 standard)
4 no significant contamination corrosive or flammable gases.
Note: There are special requirements can be resolved through consultation with the Company.
3. Main technical parameters
Project |
Unit |
Numerical value |
|
Rated volage |
V |
AC380,AC660 |
|
Rated power |
Hz |
50/60 |
|
|
Horizontal bus |
A |
Less than or equal 4000 |
Vertical bus |
A |
Less than or equal 1600 |
|
Rated short-time withstand current (1s) |
kA |
30,50,80 |
|
Rated peak withstand current |
kA |
63,105,176 |
|
Dielectric strength |
V/1min |
2500 |
|
Rated insulation voltage |
V |
660,1000 |
|
Control motor capacity |
kW |
0.5~155 |
|
Protection level |
|
IP30/IP40 |
|
Dimensions (length * width * height) |
mm |
600(8001000)*600(8001000)*2200 |
|
1: What certifications do you get?
A: We have ISO, CE,CCC,etc.
2: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
3: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.
4. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
5. What about the Package?
A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.
6.How to contact?
A: Send your inquiry details in the below, Click “send” now!
