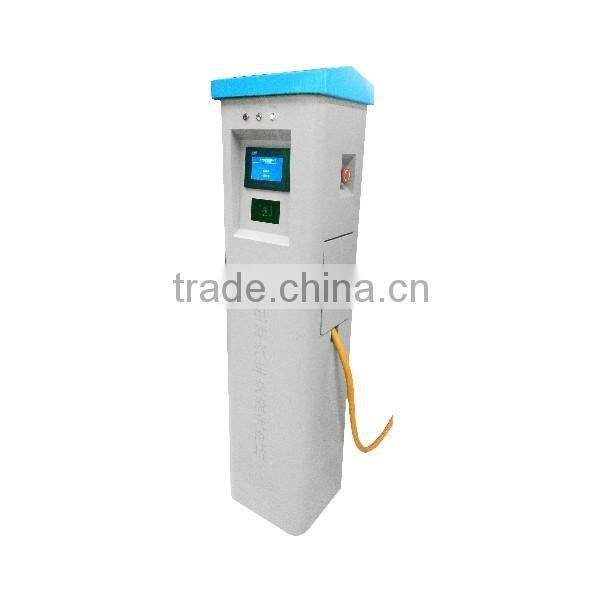

Electric Vehicle DC Charging Station Made in China

Name: Electric Vehicle DC Charging Station Made in China
Brand: CorePower
SKU: 103396709
Availability: InStock

US$ 3,500 - 30,000 MOQ: 20 Pieces

Key Specifications

Brand Name:

CorePower

Model Number:

ZK-GY05

Use:

Other, EV

Core Power (Fujian) New Energy Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

FuZhou

Delivery Detail:

Delivery time depends on order quantity.

Brand Name CorePower

Model Number ZK-GY05

Use Other, EV

Type Electric

Place of Origin Fujian, China

Product Shape

Product Description

Product Description:

The DC charger provides electric car with car charger charging, mainly used in the following places:

Large, medium and small electric vehicle charging station;

urban residential area, shopping plaza, electric power business premises and other public places of electric car parking spaces;

High speed service area, station, pier and other transportation hub areas, etc..

Technical Parameters:

Modul		JHC1015A	JHC1030A		JHC1060A		JHC1090A
Capacity		15KW	30KW		60KW		90KW
Peak Power		18KW	36KW		72KW		108KW
Working		ZVS,PWM
INPUT
Phase		3Phase, 3Wires ,PE
Voltage		380VAC(-15%+20%)
Frequency		45Hz-65Hz
Power Factor(MAX)		≥0.99 APFC
Current THD		≤3%
OUTPUT
Voltage		0-450V DC
Current		0-33A	0-66A		0-133A		0-200A
Voltage Regulation		≤±0.5%FS(FS Resistor Load)
Current Regulation		≤±0.5%FS(FS Resistor Load)
Ripple		≤0.2%
Power Regulation		≤±0.1%FS
Protection grade		IP54
Efficiency		96%
Voltage and current data sampling period		<100ms
Protection		1. input / under voltage protection; 2. output over flow / short circuit protection; 3. battery anti reverse connection, overheating, lightning protection, communication interrupt, moisture-proof, anti salt spray, anti mildew, rust protection and other protective measures function
Moudle communication Interface		CAN 2.0
Controller communication Interface		CAN/RS485/RS232
Cooling		Fan forced cooling
Environment	operating Temperature	-20+50℃
	Temperature	10-90%RH
	Storage temperature	-30℃ +70℃
Weight(Kg)		60		80		150		220
Dimension(mm)		650mm W×1440mm H×400mm D		720mm W×1670mm H×400mm D				750mm W×1760mm H×675mm D
