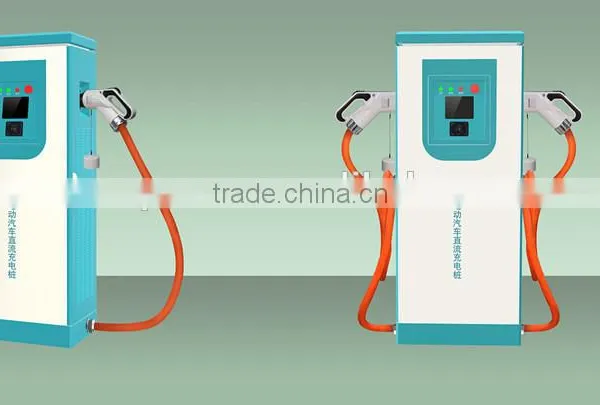

DC fast Electric car EV charger station 20KW to 100KW
- 500 Piece / Pieces per Month
- FuZhou
-
Battery Home Wall Travel AC mobile phone with the data cord
-
10 in 1 universal usb multi charger cable (2014 NEW Type USB Travel Charger)
-
wireless android tablet charger (2014 NEW Type Travel Charger)
-
multi travel battery charger for mobel phone (2014 NEW Type Travel Charger)
-
2014 newest mobile phone batery charger Ten years of production experience
-
Good quality zhongshan mobile phone battery charger 2.1mA 3.1mA
Product Details
| Brand Name: | CorePower | Model Number: | ZK-GY04 | Use: | Other, EV |
| Type: | Electric | Place of Origin: | Fujian, China |
Product Description
Product Description:
ZK-GY04 series of integrated intelligent DC charging piles have industry-leading "a pile Shuangqiang" charging technology, through intelligent
power distribution and switching technology, intelligent and flexible deployment of the charging gun power, a charging pile up with 2 with the
charging gun, fully meet the charging station of various power electric vehicle multi car at the same time, the charging requirements. Maximize
the efficiency of charging piles, greatly improving the operating rate of the charging station.
Technical Parameters:
Modul | JHC1015B | JHC1030B | JHC1060B | JHC1090B | JHC1120B | JHC1150B | |
Capacity | 15KW | 30KW | 60KW | 90KW | 120KW | 150KW | |
Peak Power | 18KW | 36KW | 72KW | 108KW | 144KW | 180KW | |
Working | ZVS,PWM | ||||||
INPUT | |||||||
Phase | 3Phase, 3Wires ,PE | ||||||
Voltage | 380VAC(-15%+20%) | ||||||
Frequency | 45Hz-65Hz | ||||||
Power Factor(MAX) | ≥0.99 APFC | ||||||
Current THD | ≤3% | ||||||
OUTPUT | |||||||
Voltage | 0-750V DC | ||||||
Current | 0-20A | 0-40A | 0-80A | 0-120A | 0-160A | 0-200A | |
Voltage Regulation | ≤±0.5%FS(FS Resistor Load) | ||||||
Current Regulation | ≤±0.5%FS(FS Resistor Load) | ||||||
Ripple | ≤0.2% | ||||||
Power Regulation | ≤±0.1%FS | ||||||
Protection grade | IP54 | ||||||
Efficiency | 96% | ||||||
Voltage and current data sampling period | <100ms | ||||||
Protection | 1.input / under voltage protection; 2. output over flow / short circuit protection; 3. battery anti reverse connection, overheating, lightning protection, communication interrupt, moisture-proof, anti salt spray, anti mildew, rust protection and other protective measures function | ||||||
Module communication Interface | CAN 2.0 | ||||||
Controller communication Interface | CAN/RS485/RS232 | ||||||
Cooling | Fan forced cooling | ||||||
Environment | operating Temperature | -20+50℃ | |||||
Temperature | 10-90%RH | ||||||
Storage temperature | -30℃ +70℃ | ||||||
Weight(Kg) | 60 | 80 | 150 | 220 | 260 | 300 | |
Dimension(mm) | 650mm W×1440mm H×400mm D | 720mm W×1670mm H×400mm D
| 750mm W×1760mm H×675mm D | ||||
1: What certifications do you get?
A: We have ISO, CE,CCC,etc.
2: Are OEM&ODM available?
A: Yes, we accept OEM and ODM.
3: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.
4. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.
5. What about the Package?
A: Standard export package (Wooden carton with inner vacuum package) for long-distant ocean shipment and tough handling is provided. and we can make special designed for you if need.
6.How to contact?
A: Send your inquiry details in the below, Click “send” now!
