Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > 128ton Nylon Making Machine

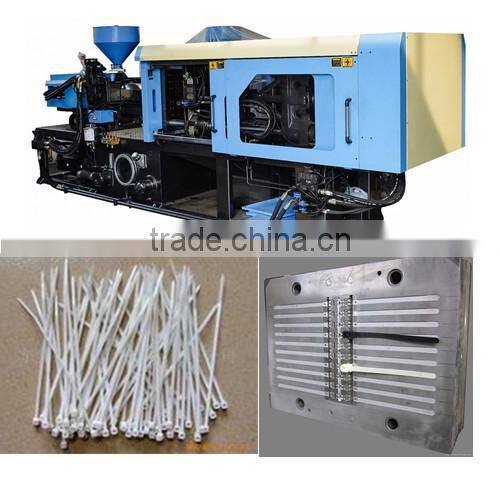

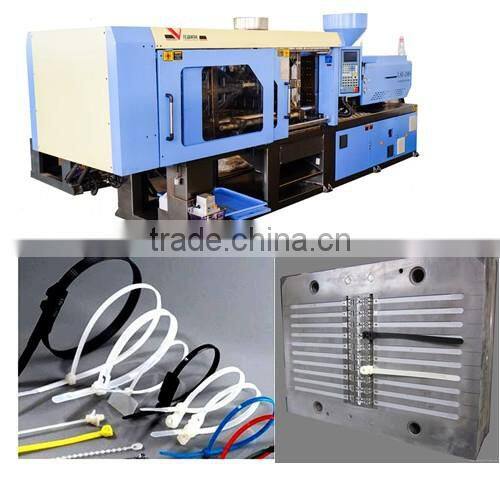

128ton Nylon Making Machine

Name: 128ton Nylon Making Machine
Brand: LONG SHENG
SKU: 103367645
Availability: InStock

US$ 16,000 - 16,998 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Tube Head Injection

Style:

Horizontal

Contact Supplier Request Quote Chat Now

Changzhou Longsheng Machinery Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Tube Head Injection

Style Horizontal

Brand Name LONG SHENG

Model Number LSF128

Place of Origin Jiangsu, China

Plastic Type Thermoplastic

Automatic Yes

Injection Weight 211g

Injection Rate 132g/s

Clamping Force 1280kn

Opening Stroke 410*380mm

Power(W) 7.4kw

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Main Features of 128ton nylon making machine :

l Energy Saving Machines With Servo System

l PVC Special

l PET Special

l High Speed

INJECTION UNIT		Unit	LSF-128
		Unit	A	B	C
	Screw Diameter	Mm	38	40	45
	Screw L/D Ratio	L/D	22.1	21	18.7
	Short Size	Cm3	209	232	294
	Injection weight	G	191	211	267
	Injection Rate	g/s	105	132	160
	Plasticizing capacity	g/s	16	20	28
	Injection Pressure	Mpa	205	185	147
	Screw Speed	Rpm	0-200
	Screw Stroke	mm	184
CLAMPING UNIT	Clamp Force	KN	1280
	Space Between Tie Bars	mm	*410380**
	Toggle Stroke	mm	380
	Max. Mold Height	mm	430
	Min. Mold Height	mm	150
	Ejector Stroke	mm	130
	Ejector Tonnage	KN	39.6
	Ejector Number	P	5
OTHERS	Max. pump Pressure	Mpa	16
	Pump motor powder	Kw	15
	Heater Power	Kw	7.4
	Machine Dimension(LWH)	M	*4.51.191.85*
	Oil Tank Capacity	L	210
	Machine Weight	T	4.2

CLAMPING UNIT

- FEA designed double-toogle five-joint clamping machinery
- High rigidity mould platen with enlarged space between tie bar
- Mould Platen with both T-slot and mould mounting holes
- Movable platen supported by the adjustable slide system which improves platen parallelism and life time of tie bar and mould
- Optimized lubrication system ensuring precision clamping and prolonging the life time of the clamping
- Special design of hydraulic oil cylinder for High speed action
- High precision auto-clamping function according to the clamping force settled
- Oilless bush on the bearing parts prolonging the life time of toggle and tie bar

INJECTION UNIT

- High quality linear motion(LM)guide ensure injection smoothly and accurately
- High speed and high pressure adopt special injection design, improving injection speed
- The barrel of injection setting can be disassembled randomly,after taking the quick connectors and it is easy for maintance.
- Twin nozzle cylinder ensures more even and stable structure
- Specific screw and barrel designs are available for processing different material requirements

HYDRAULIC SYSTEM

- High capacity feedback proportional valve control the pressure and flow separately from L V D T, stability and high sensitivity speed
- Adopt Germany Rexroth variable pump,energy-saving,stability
- Adopt Italy Gefran servo hydraulic system
- The servo energy-saving machines are equipped with rotary encoder and pressrue sensor, and both of them had feed back of flow and pressrue,through changing the speed and torque,high quality synchronous servo motor makes corresponding flow and pressure adjustments to reach the effects of close-loop precisionand energy saving.It control the hydraulic oil temperature reasonable,prolong the using life and save water.
- High speed and high pressure controlled by clamping and injection hydraulic system
- Adopt the special hydraulic syetem to protect the specision mould.
- The proportional back pressure valves adopted ,with easy operation and accurate control
- Butter and thin oil in dependent lubirication system can lubricate everywhere in the best situation

Packaging & Shipping

Packing: 1set in a wooden case

Payment: 30% deposit before production,70% before delivery

Our Services

Good Quality: Strict quality control system .Good reputation in the market.

Fast Delivery: High efficiency forwarder,quality ,quantity and timely shipment.

Good Service: Our company provide one-stop service

Company Information

As a national high-tech enterprise Since 2001 year , LONGSHENG MACHINERY has dozens of patents, for example, “hydraulic injection molding machine with clamping structure”,

Besides the traditional link-type (toggle) injection molding machines of various specifications, LONGSHENG MACHINERY also has the most advanced full hydraulic two platen plastic injection molding machine, and formed a medical products, thermosetting injection molding , bi-color plastic,special machines and other system perform solutions.

What is the difference with other injection molding machine factories is that LONGSHENG MACHINERY has years of research and production experience of two platen injection molding machine, the innovations used in the field of injection molding machines, to achieve industrial applications.

The full hydraulic two platen plastic injection molding machine has the advantage that conventional rod machine do not have. Not only in the technical features, more reliability and convenience in embody the value of full hydraulic two platen plastic injection molding machines. The applications of hydraulic injection molding machine is the systemic breakthrough of the application of the traditional injection molding machine. In terms of technology, hydraulic application of the two platen structure, breaks the bottlenecks in the application of traditional mechanical structure of injection molding ,which enables customers to design more targeted application of more energy—efficient injection molding products.

For meeting your increasing demand,and insuring our users own more advantages in drastic competition, we will always struggle on the road and make more contributions for our clients,employees and society.
